RF333PXVT0 05 – UNIT , LITERATURE AND OPTIONAL

RF333PXVT0 05 – UNIT , LITERATURE AND OPTIONAL

Written by

in

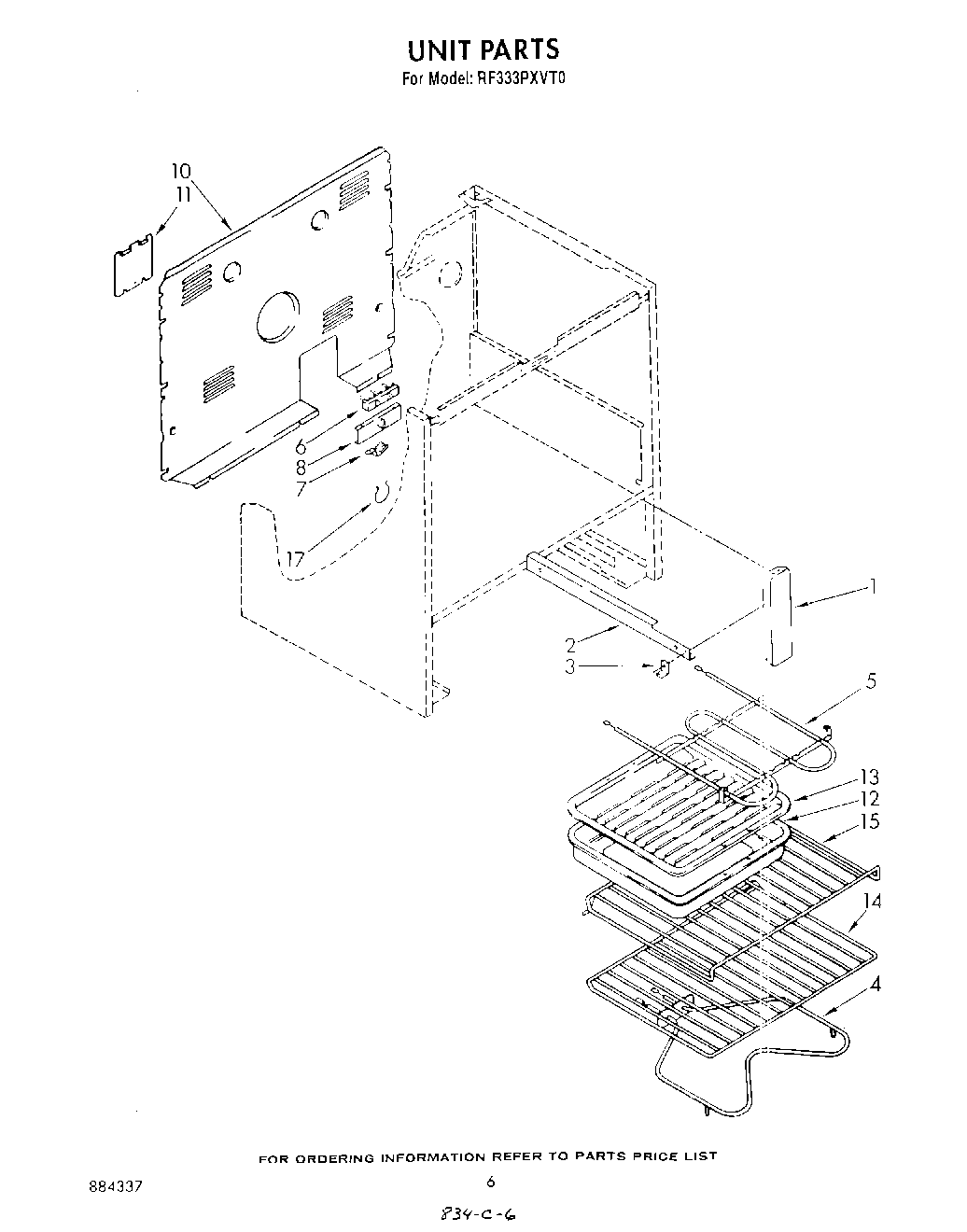

RF333PXVT0 05 – UNIT , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT884337
	WPL LIT313358
	WPL LIT3148537
	WPL LIT3148614
	Screw, 10-32 x 5/8 (4)
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Rotisserie Kit (RCK 81)
17	WPL 282821
17	Leveler (Thinner) (2oz.)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	Enamel, Coffee (1 Qt. Uncut)
17	Enamel, New Avocado (1 Qt. Uncut)
17	350930 Whirlpool White Spray Paint
17	Grease
17	8212471 Whirlpool Oven Paint
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Brown)
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350942 Whirlpool Spray Paint
17	511873 Whirlpool Refrigerator Paint
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	16515 Whirlpool Clip
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350956 Whirlpool Spray Assembly
