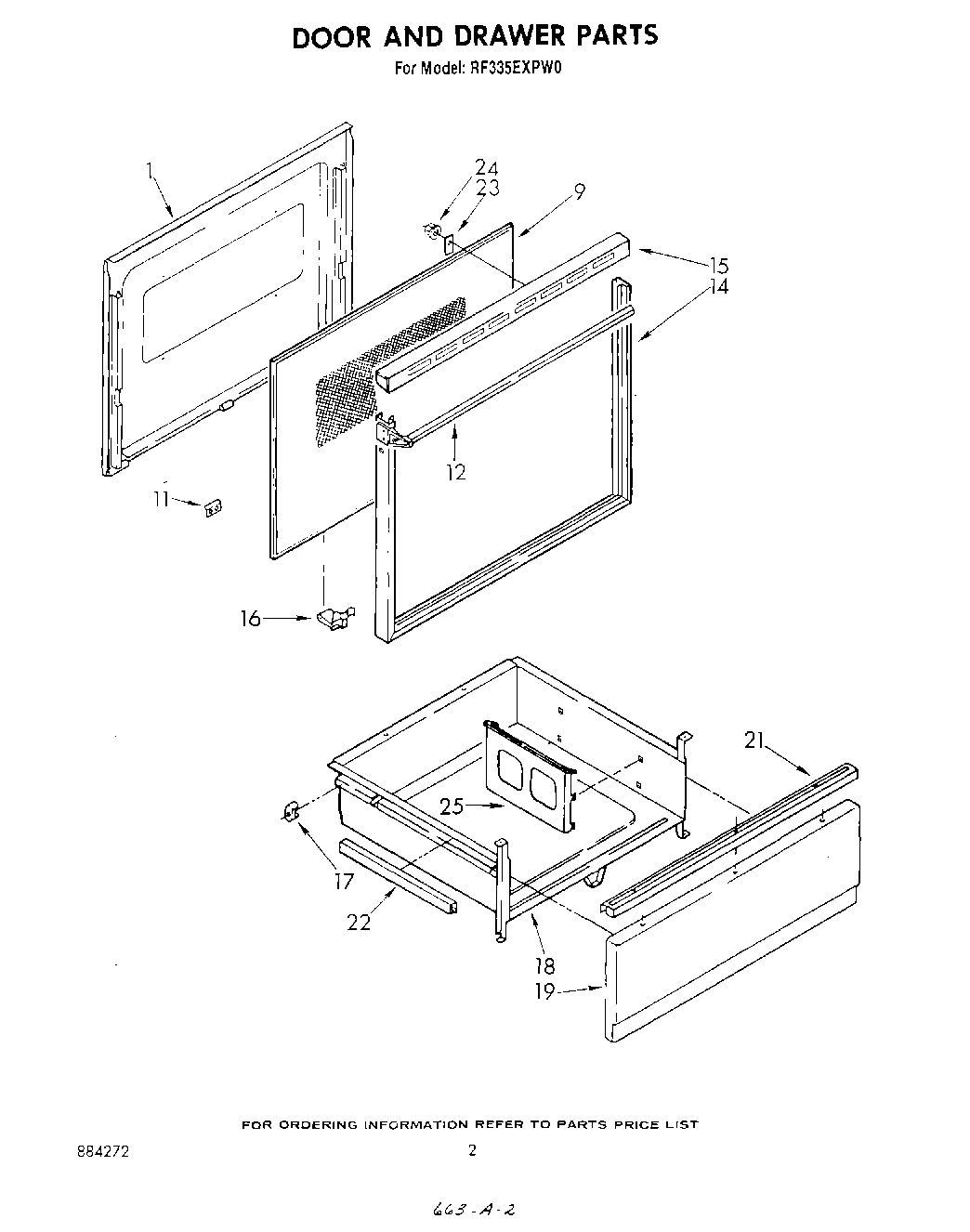

RF335EXPW0 02 – DOOR AND DRAWER

RF335EXPW0 02 – DOOR AND DRAWER

Written by

in

RF335EXPW0 02 – DOOR AND DRAWER

Products

PositionProduct
1Knob-Upper Thermostat
9Glass, Outer
11Clip (2)
12WP355515 Whirlpool Screw
12Handle, Oven Door
14frame, door 30“
15Top, Door Frame
16clip, glass (10)
17Glide, Rear (2)
17Screw, 10A x 1/2 (2) (Black)
18Drawer, Utility
19Panel Drawer (White)
19WP488787 Whirlpool Refrigerator Screw
21WP488627 Whirlpool Refrigerator Screw
21Handle, Drawer
22Protector, Drawer (2)
23hold down, glass (2)
24WP90296 Whirlpool Clip
25Rack, Literature
