RF335EXPW0 03 – CONTROL PANEL

RF335EXPW0 03 – CONTROL PANEL

Written by

in

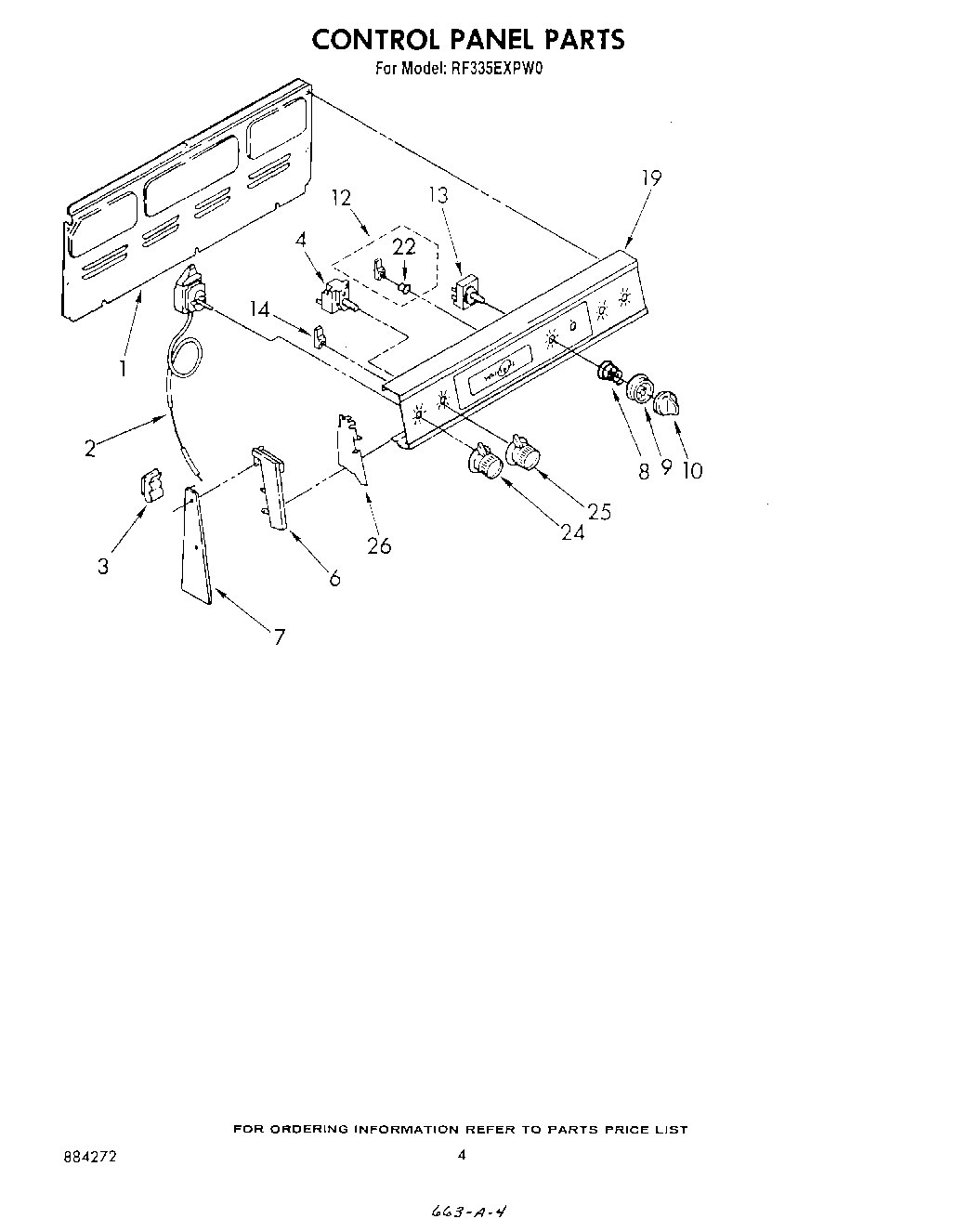

RF335EXPW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Harness-Conduit Asm.
2Thermostat, Oven (Alt.)
2Thermostat, Oven
2Thermostat, Oven (Alternate)
3Clip, Tube
4Switch, Selector
6End Cap R.H.
6End Cap L.H.
6Screw,
7SCREW
7WP3390631 Whirlpool Screw
7Screw 10-32×1“
7Screw 10-32×7/16“
8Spring, Bezel (4)
9W11194997 Whirlpool Knob Bezel
10WP307458 Whirlpool Knob
12Light, Indicator (250V)
13WP486579 Whirlpool Air Conditioner Screw
13W10900107 Whirlpool Oven Surface Element Switch
14Light, Indicator (Surface Unit (2))
19Control Panel (White)
19Washer
22Lens, Amber
24Knob, Thermostat
25Knob, Selector
25Screw
25WP688805 Whirlpool Spring Clip
26Shield (2)
26WP965173 Whirlpool Dishwasher Screw
