RF335EXPW0 04 – OVEN
Written by
in

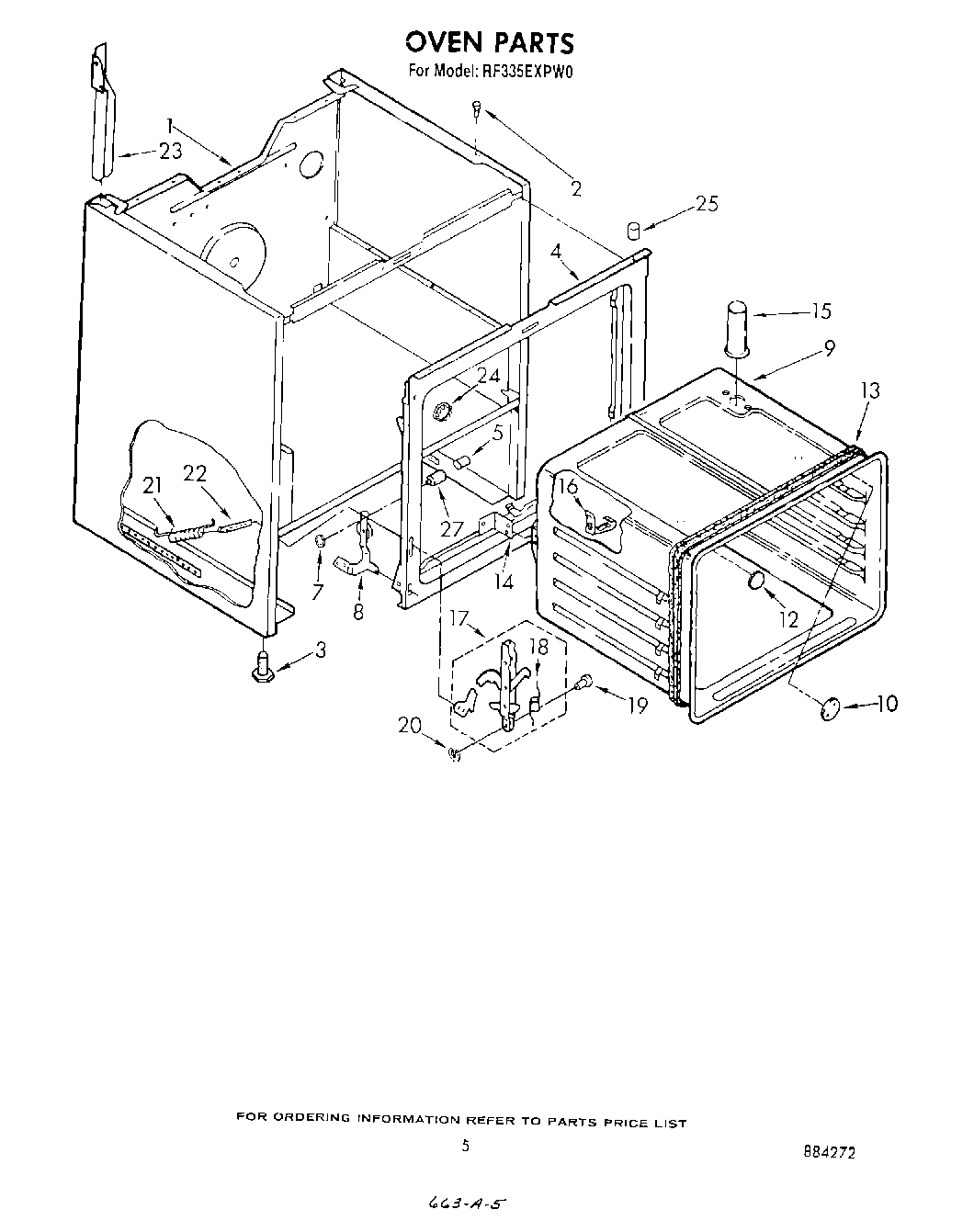

RF335EXPW0 04 – OVEN
Products
Position
Product
1
Main Chassis (White)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Frame, Front
5
Pin, Hinge Ear (2)
7
Pushnut (2)
8
Hinge (L.H.)
8
Hinge (R.H.)
9
oven (30“ continous clean)
10
Cover, Plate
10
Screw (3)
12
Plug Button
13
Heat Seal
14
Bracket, Oven (Mounting)
15
Screw, 10A x 1/2 (2) (Black)
15
Vent, Oven
16
98005642 Whirlpool Clip
17
Channel, Arm (2)
18
Spring, Door Stop
19
WP307986 Whirlpool Hinge Pin
20
Retainer Ring (2)
21
Spring, Oven Door (2)
22
WP308125 Whirlpool Microwave Range/Cooktop Anchor
23
Wire Cover-Controls (Right)
23
Wire Cover
23
SCREW
24
Plug, Button
25
Panel, Drawer (Screw, 8-32 (3))
25
locator, cooktop
27
Snubber, Door (2)
←
