RF335EXPW0 05 – LITERATURE AND OPTIONAL

Products

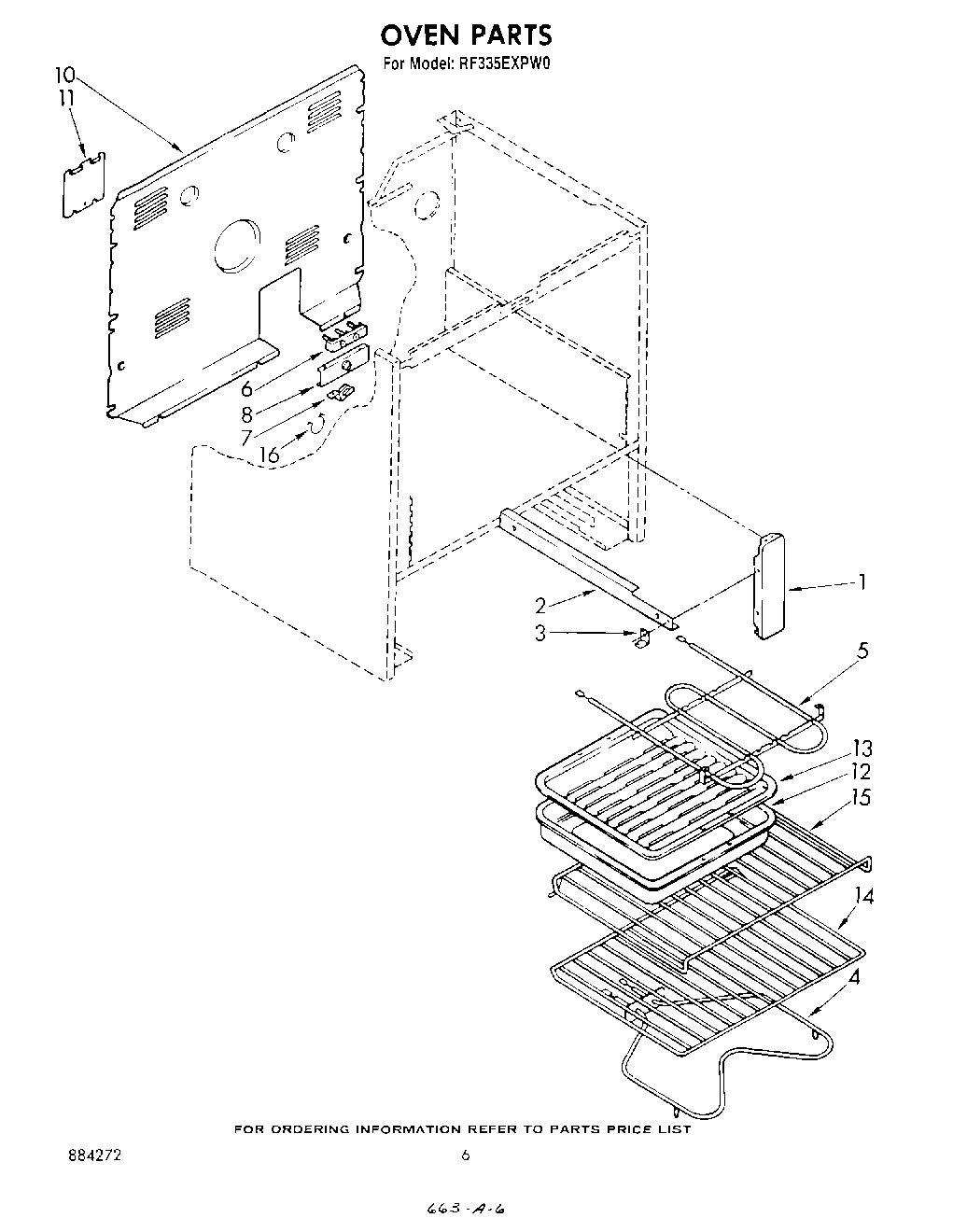

Position	Product
	WPL LIT3147416
	WPL LIT313358
	WPL LIT884272
	Unit, Broil (208V)
	WPL LIT313473
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Rail R.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	Wire, 25“ Roll (White 14 GA.)
16	Rotisserie Kit
16	Leveler (Thinner) (2oz.)
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	72113 Whirlpool Touch-Up Paint
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	350930 Whirlpool White Spray Paint
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	511873 Whirlpool Refrigerator Paint
16	285006 Whirlpool Spray
16	16515 Whirlpool Clip
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	WPL 799832
16	242831 Whirlpool Oven Wire
16	Wire (14 Ga. 150 c Blue)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Orange)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire (12 Ga. 150 c Black)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	1
16	Grease
