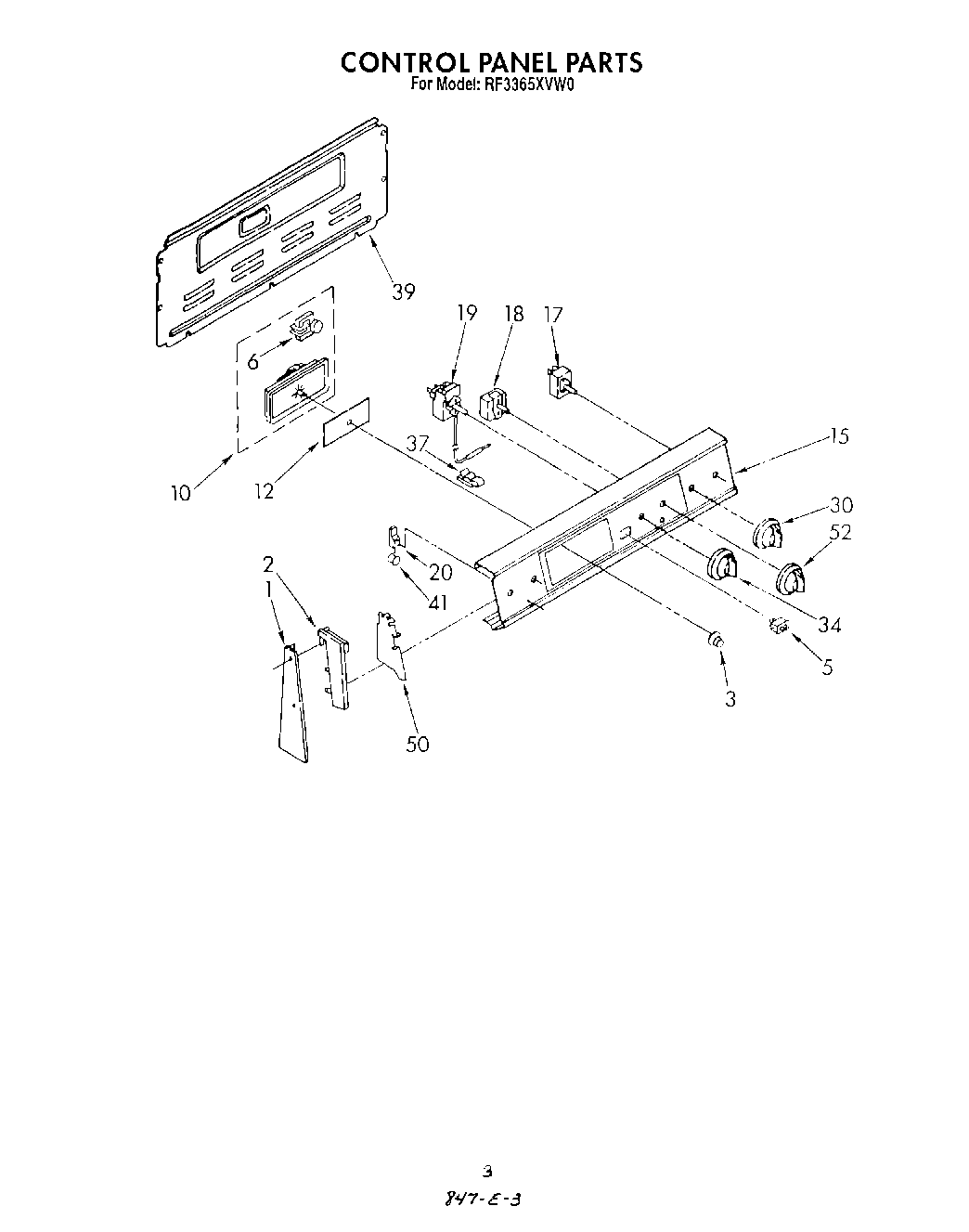

RF3365XVN0 03 – CONTROL PANEL

Written by

Products

Position	Product
	WP313808 Whirlpool Screw
1	Washer
1	WP3390631 Whirlpool Screw
1	End Trim L.H.
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Spring (3)
3	WP3169181 Whirlpool Knob
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
10	Timer, Clock (Includes No.6)
12	Glass, Timer
15	Washer
15	Thermostatxxx
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3148952 Whirlpool Oven Infinite Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (4 Position)
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
20	Light, Indicator (250V)
20	Light, Indicator (Surface Unit (2))
30	Knob, Control (4)
34	Knob, Control (4)
34	Screw
37	Clip, Tube
39	SCREW
39	Harness-Conduit Asm.
41	Lens, Amber
50	WP965173 Whirlpool Dishwasher Screw
50	Shield (2)
52	Knob, Control
52	WP688805 Whirlpool Spring Clip
