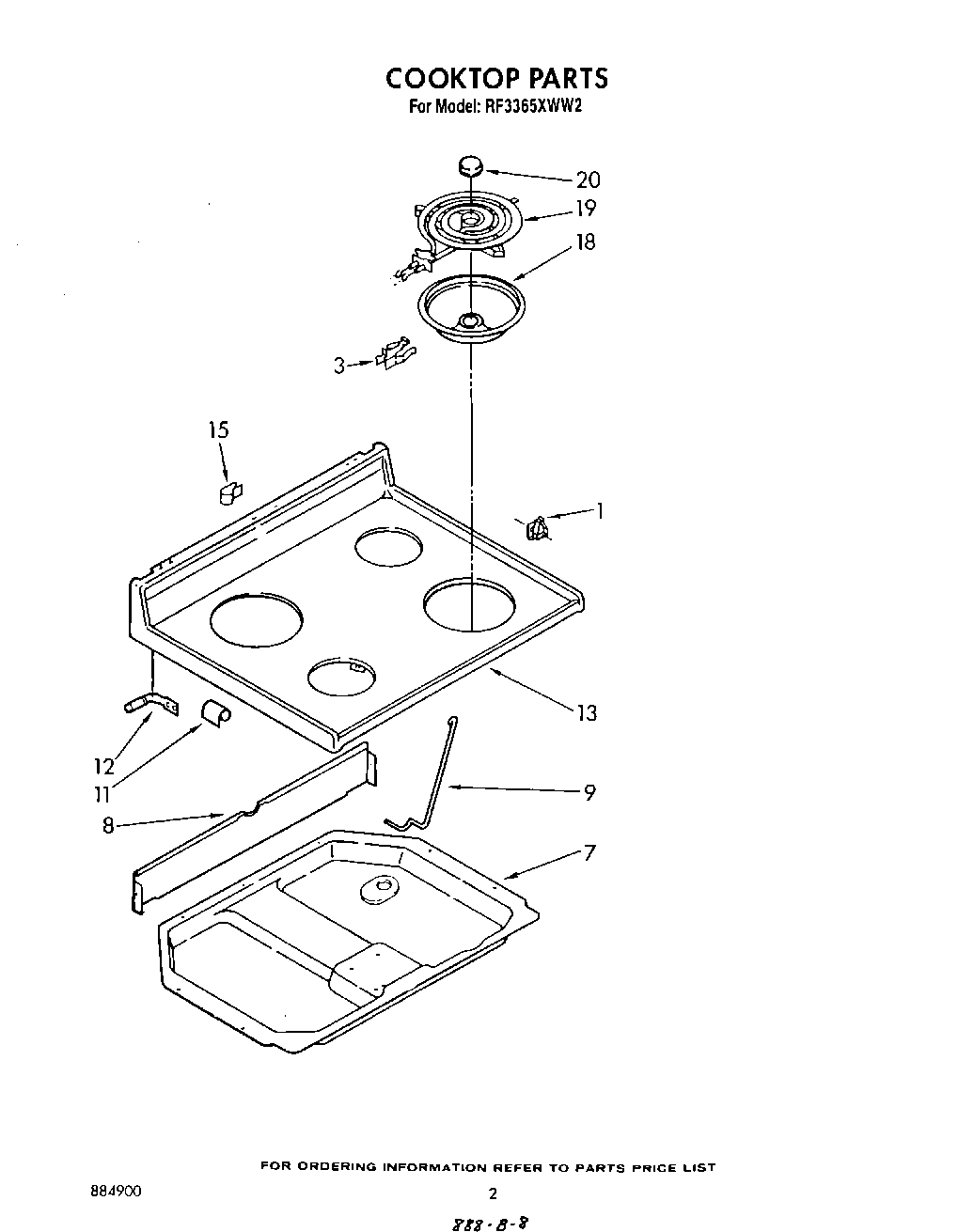

RF3365XWN2 02 – COOKTOP

Products

Position	Product
	Repair Parts List
	WPL LIT3149507
	Instructions, Installation
	WPL LIT3150550
	Guide, Use & Care
1	WP487887 Whirlpool Refrigerator Screw
1	Nut (4)
1	814103 Whirlpool Clip
3	WP313808 Whirlpool Screw
3	WP4332752 Whirlpool Clip
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
