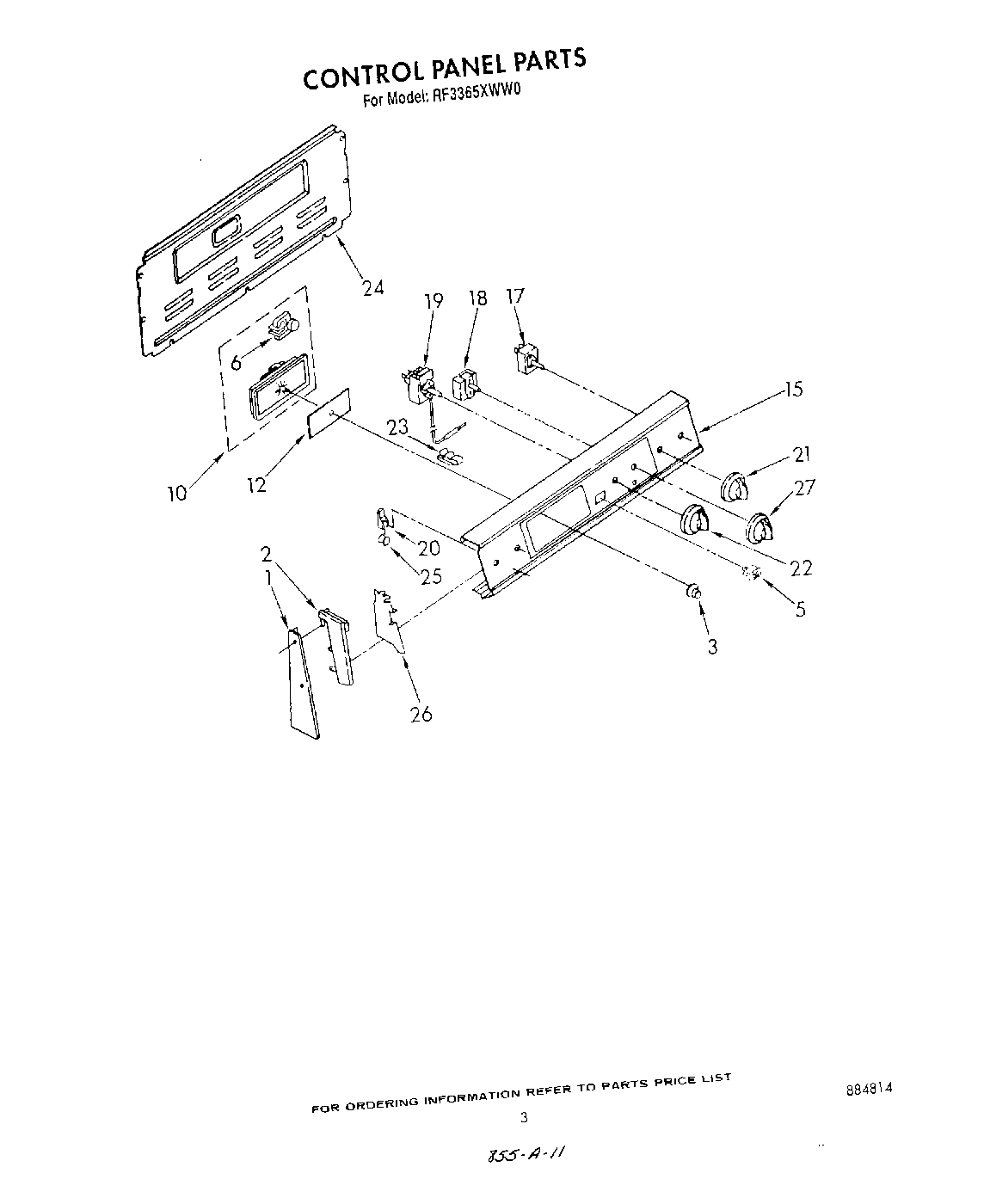

RF3365XWW0 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	WP3390631 Whirlpool Screw
1	End Trim L.H.
1	Washer
2	End Cap L.H.
2	Screw,
2	End Cap R.H.
3	WP3169181 Whirlpool Knob
3	Spring (3)
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
10	Timer, Clock (Includes No.6)
12	Glass, Timer
15	Panel, Control
15	Washer
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3148952 Whirlpool Oven Infinite Switch
18	Switch, Selector (4 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
20	Light, Indicator (250V)
20	Light, Indicator (Surface Unit (2))
21	WP3149983 Whirlpool Knob
22	Screw
22	Knob, Temperature
23	Clip, Tube
24	Harness-Conduit Asm.
24	SCREW
25	Lens, Amber
26	Shield (2)
26	WP965173 Whirlpool Dishwasher Screw
27	Knob, Control (Selector)
27	WP688805 Whirlpool Spring Clip
