RF336EXPW0 03 – CONTROL PANEL
Written by
in

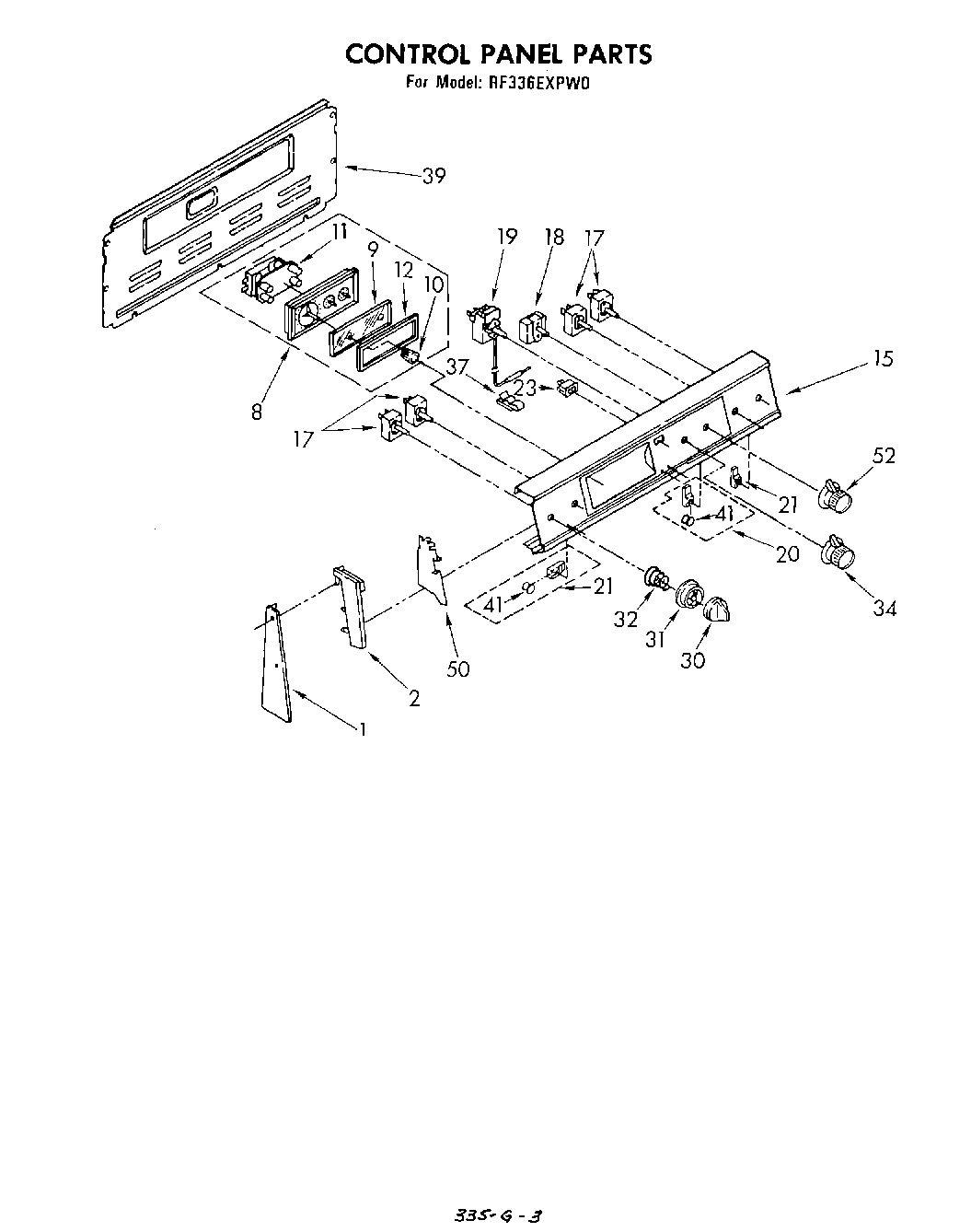

RF336EXPW0 03 – CONTROL PANEL
Products
Position
Product
1
WP3390631 Whirlpool Screw
1
End Trim L.H.
1
Washer
2
Screw,
2
End Cap R.H.
2
End Cap L.H.
8
Speed Nut
9
Glass, Timer
10
Knob, Timer (3)
11
Motor, Timer
12
Bezel, Timer
15
Washer
15
Panel, Control
17
W10900107 Whirlpool Oven Surface Element Switch
18
WP486579 Whirlpool Air Conditioner Screw
18
Switch, Selector (4 Position)
19
WP313808 Whirlpool Screw
19
Thermostat, Oven
20
Light, Indicator
21
Light, Indicator (Surface Unit (2))
23
WP4314961 Whirlpool Lite Switch
30
WP307458 Whirlpool Knob
31
W11194997 Whirlpool Knob Bezel
32
Spring, Bezel (4)
34
Knob, Thermostat
37
Clip, Tube
39
Harness-Conduit Asm.
39
SCREW
41
Lens, Amber
50
Shield (2)
50
WP965173 Whirlpool Dishwasher Screw
52
Knob, Selector
52
Screw
52
WP688805 Whirlpool Spring Clip
←
