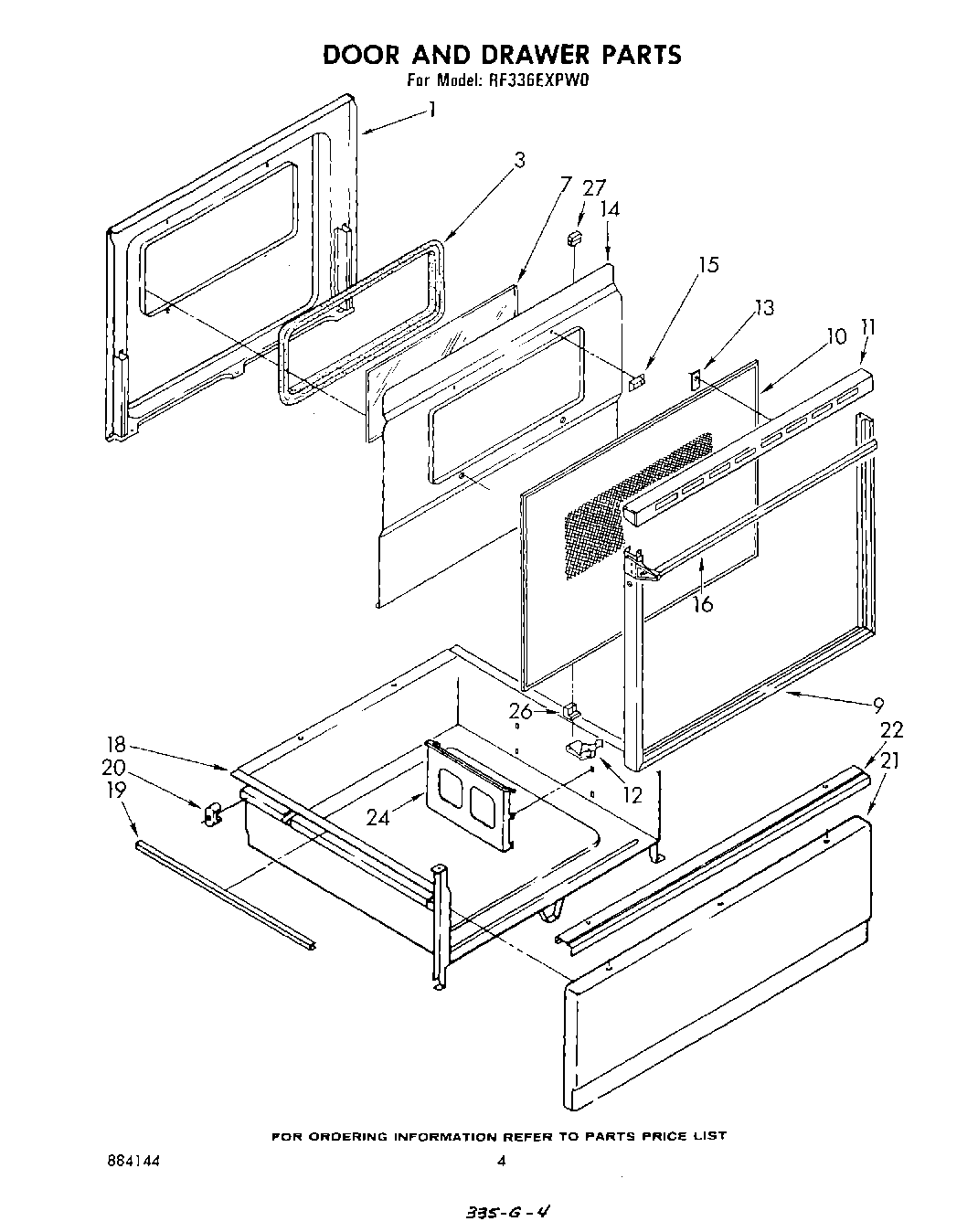

RF336EXPW0 04 – DOOR AND DRAWER

RF336EXPW0 04 – DOOR AND DRAWER

Written by

in

RF336EXPW0 04 – DOOR AND DRAWER

Products

PositionProduct
1liner, door
1Screw (3)
3seal, pano glass
7glass, inner 30“
9frame, door 30“
10Glass, Outer
11Top, Door Frame
12clip, glass (10)
13screw (3)
14baffle, insulation
14WP90296 Whirlpool Clip
15spacer, insulation baffle (4)
16WP355515 Whirlpool Screw
16Handle, Oven Door
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
20Screw, 10A x 1/2 (2) (Black)
21Panel, Drawer (Almond)
21Panel, Drawer (Platinum)
21Panel, Drawer (Toast)
21Panel Drawer (White)
21WP488787 Whirlpool Refrigerator Screw
22WP488627 Whirlpool Refrigerator Screw
22Handle, Drawer
24Rack, Literature
26Channel, Rubber (4)
27hold down, glass (2)
