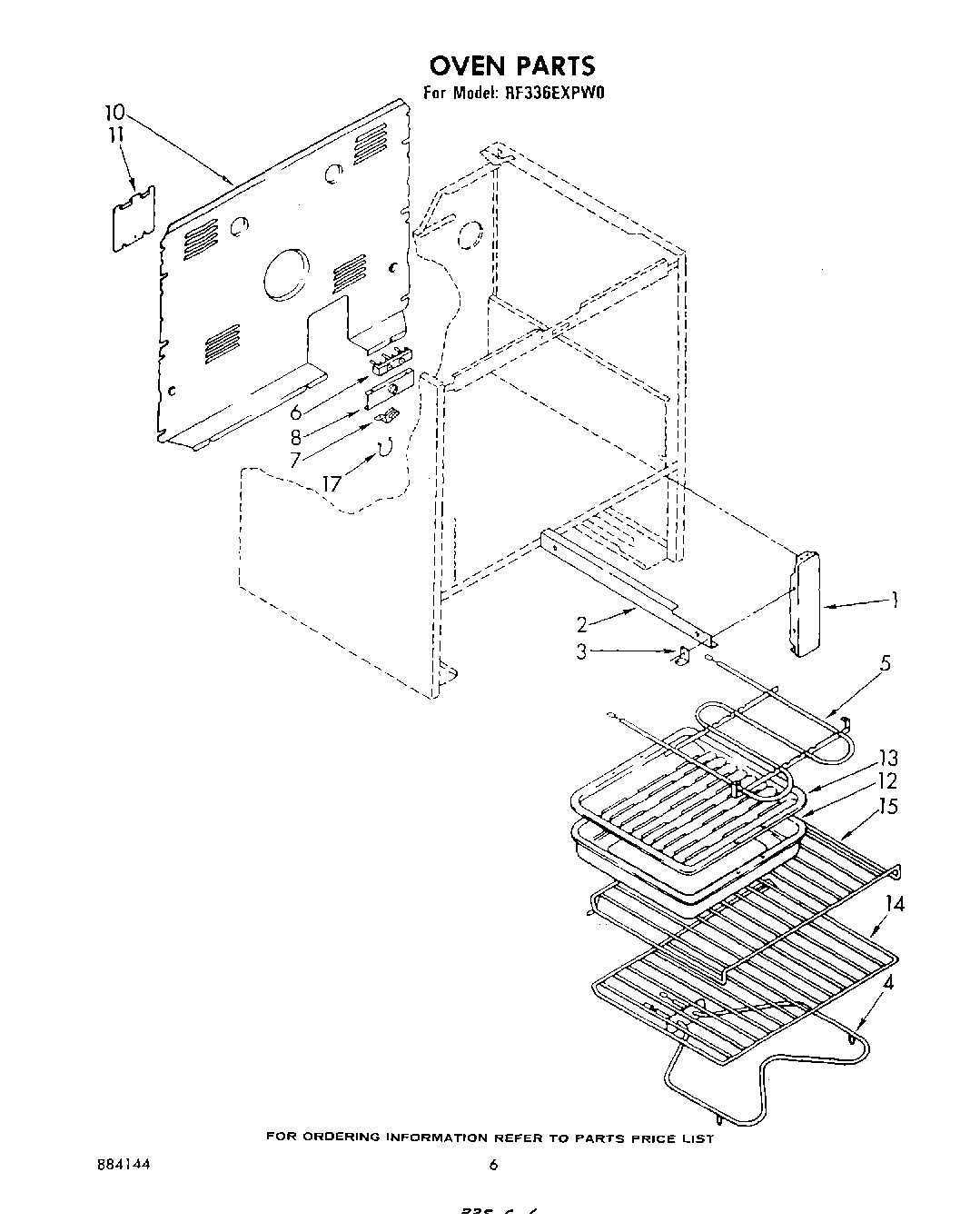

RF336EXPW0 05 – OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313705
	WPL LIT313712
	WPL LIT313473
	WPL LIT884144
	511873 Whirlpool Refrigerator Paint
	WPL LIT313358
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
5	Unit, Broil (208V)
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Enamel, New Avocado (1 Qt. Uncut)
17	Wire (14 Ga. 150 c Orange)
17	Leveler (Thinner) (2oz.)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	Rotisserie Kit (RCK 81)
17	Golden Harvest
17	8212471 Whirlpool Oven Paint
17	18 Ga. 80~c Rating (Red)
17	Grease
17	1
17	Enamel, Coffee (1 Qt. Uncut)
17	Wire (14 Ga. 200 c Brown)
17	Wire (14 Ga. 150 c Green)
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	350942 Whirlpool Spray Paint
17	WPL 799832
17	WPW10208653 Whirlpool Insulation
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	16515 Whirlpool Clip
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	350930 Whirlpool White Spray Paint
