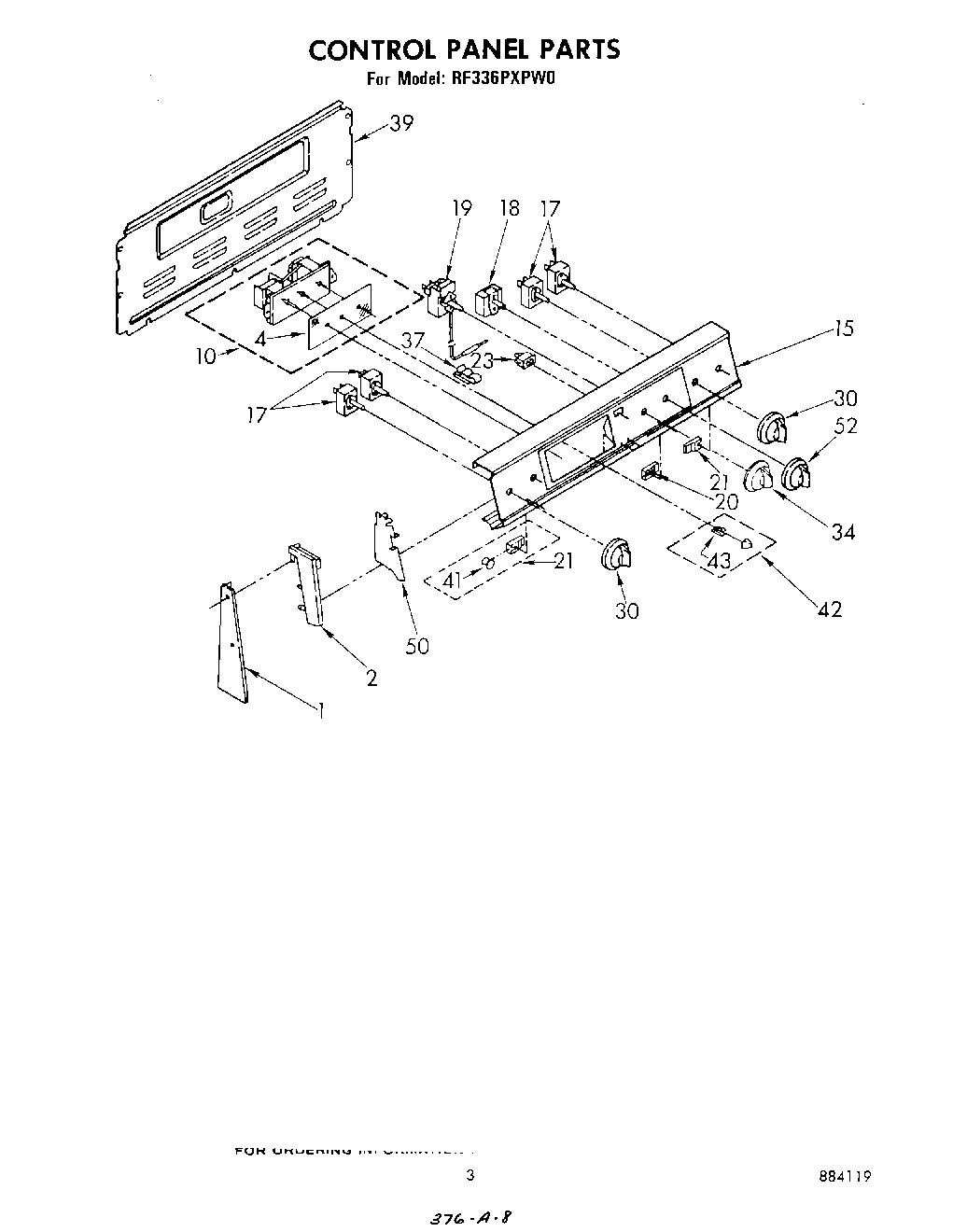

RF336PXPW0 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Washer
1	WP3390631 Whirlpool Screw
1	End Trim L.H.
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
4	Glass, Timer
10	Timer, Auto
15	Thermostatxxx
15	Washer
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Switch, Selector (4 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
20	Light, Indicator
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
30	Knob, Control (4)
34	Screw
34	Knob, Control (4)
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	WP3169181 Whirlpool Knob
43	Spring (3)
50	WP965173 Whirlpool Dishwasher Screw
50	Shield (2)
52	WP688805 Whirlpool Spring Clip
52	Knob, Control
