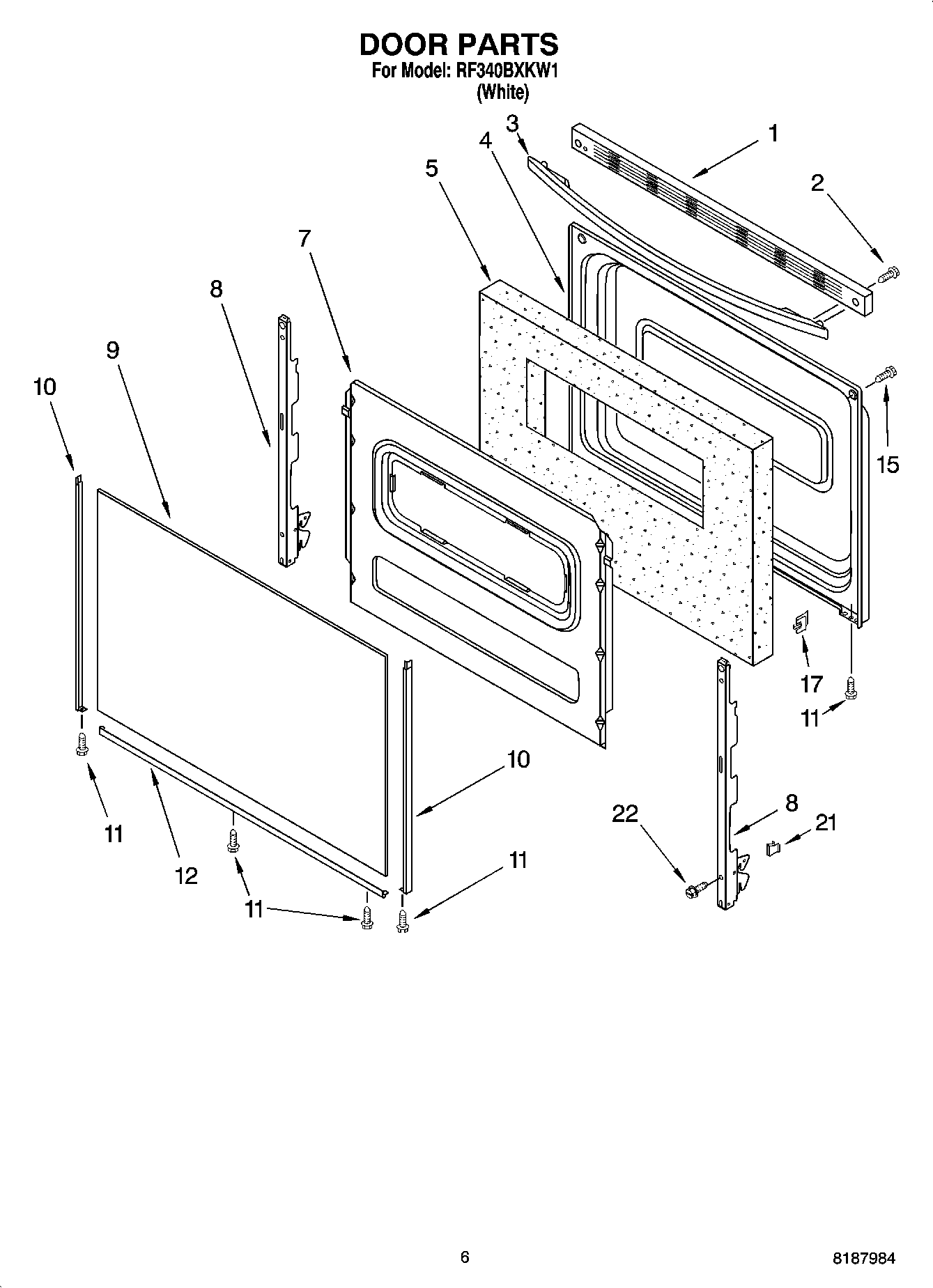

RF340BXKW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI122603A
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	WPL 786032
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	WP3196154 Whirlpool Screw Assembly
	WPL 8273266
	WPL ARI122602A
	WPL ARI122601A
	WPL ARI122600A
	WPL ARI122599A
	WPL ARI122598A
	WPL ARI122597A
	WPL 4454060
	WPL 4454242
	WPL ARI122604A
	W11396691 Whirlpool Element Receptacle and Wire Kit
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire, 25` Roll (Black 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	Clip, Ground Wire
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	72032 Whirlpool Touch Up Paint Black
	Wire (14 Ga. 150 c Blue)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
7	W11699790 Whirlpool Retainer
8	Hinge, Door (2)
9	Glass, Door (Black)
10	W10761018 Whirlpool Dishwasher Left Door Trim
10	W10761014 Whirlpool Right Door Trim
11	W10491985 Whirlpool Screw
12	WP8523177 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
