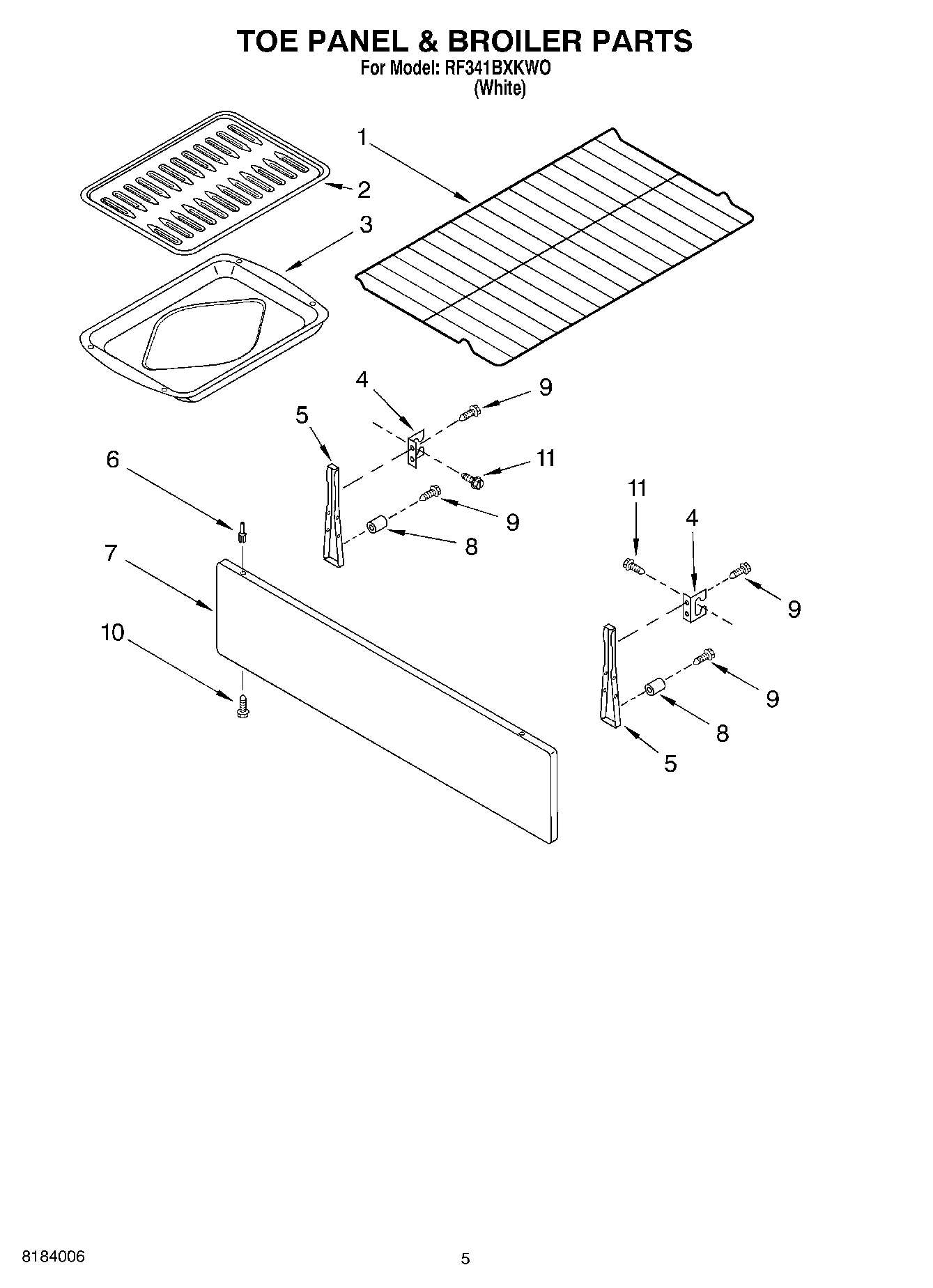

RF341BXKW0 04 – TOE PANEL AND BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Bracket, Toe Panel
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	Panel, Drawer Frnt (White)
8	W10877054 Whirlpool Spacer Assembly
9	WP3196175 Whirlpool Screw
10	WP3400832 Whirlpool Screw
11	302251 Whirlpool Dishwasher Screw
