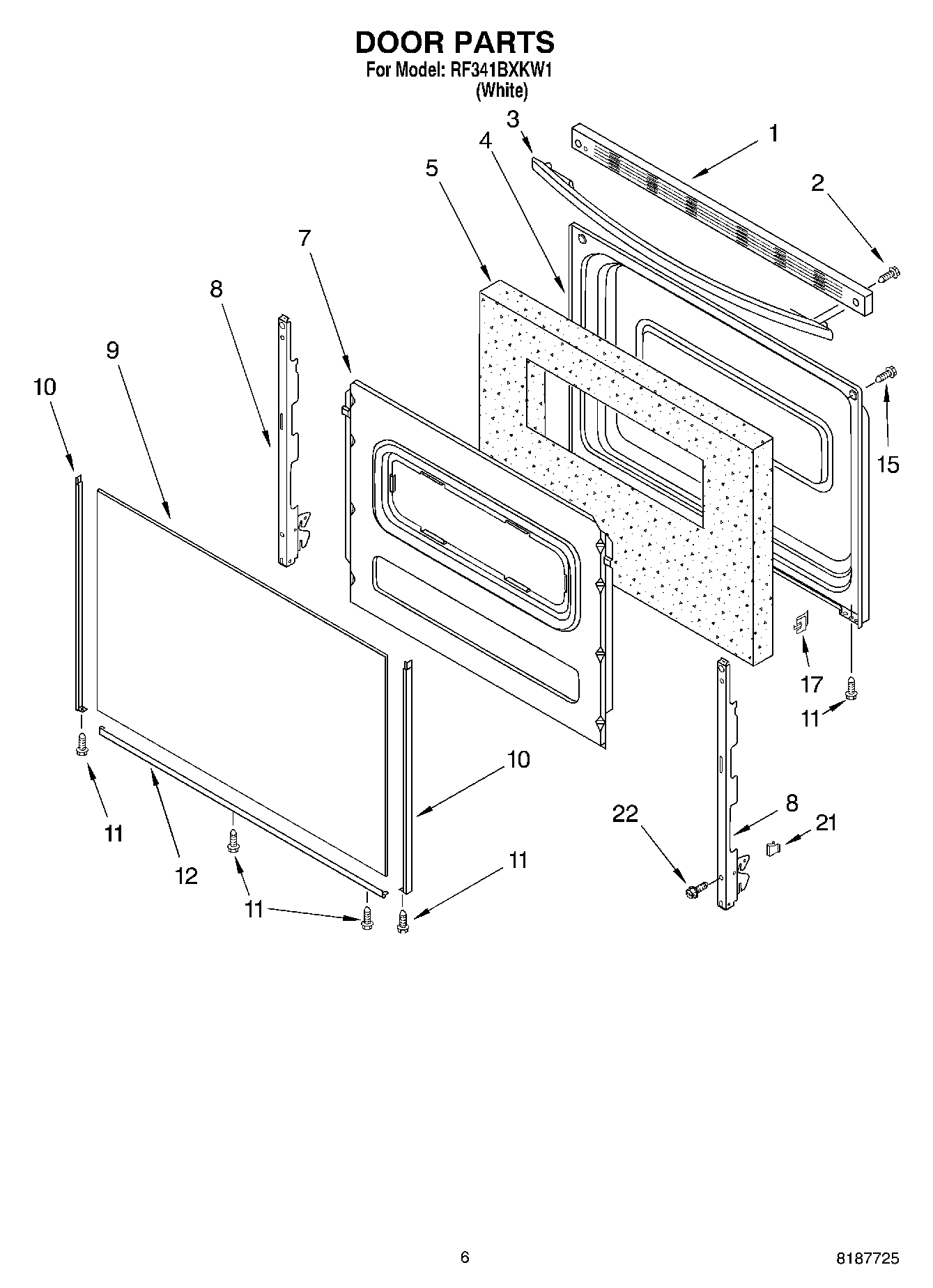

RF341BXKW1 05 – DOOR

RF341BXKW1 05 – DOOR

Written by

in

RF341BXKW1 05 – DOOR

Products

Position	Product
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
7	W11699790 Whirlpool Retainer
8	Hinge, Door (2)
9	Glass, Door (Black)
10	W10761018 Whirlpool Dishwasher Left Door Trim
10	W10761014 Whirlpool Right Door Trim
11	W10491985 Whirlpool Screw
12	WP8523177 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	18 Ga. 80~c Rating (Red)
22	3196696 Whirlpool Clip
22	3184020 Whirlpool Oven Wire
22	Wire (14 Ga. 200 c Brown)
22	1
22	8212471 Whirlpool Oven Paint
22	Grease
22	WPL 8524089
22	WPL 8524088
22	WPL 8523717
22	350942 Whirlpool Spray Paint
22	WPL 8273266
22	WPL 8523709
22	WP3196154 Whirlpool Screw Assembly
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	WP3196175 Whirlpool Screw
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Clip, Ground Wire
22	3400964 Whirlpool Oven Clip
22	814381 Whirlpool Pin
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	8528351 Whirlpool Clip
22	285006 Whirlpool Spray
22	350930 Whirlpool White Spray Paint
