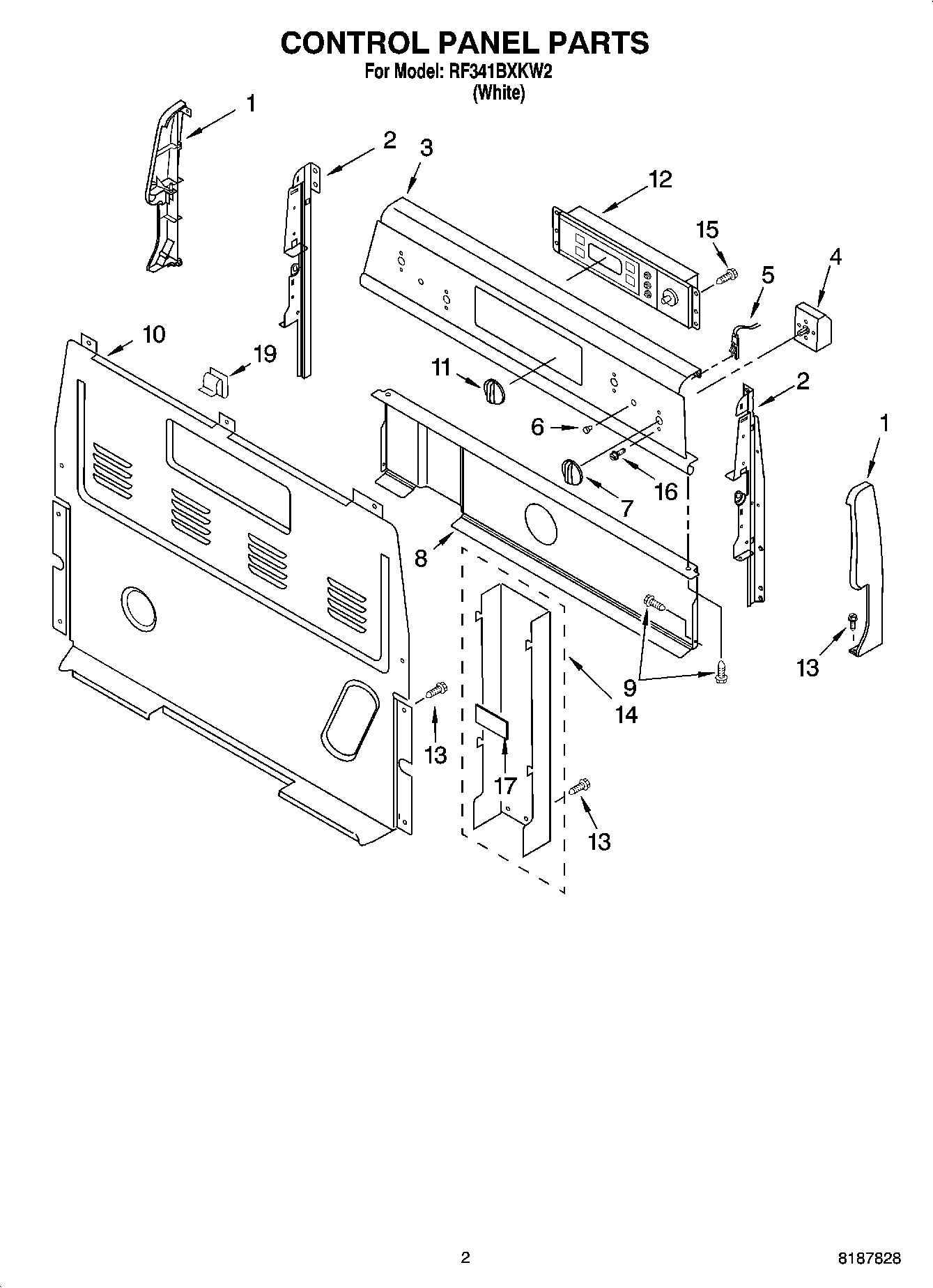

RF341BXKW2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Black)
4	SWITCH-INF
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP8522566 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	Knob
12	Control, Range (Black)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
17	Card, Insulation
19	WP8273564 Whirlpool Clip
