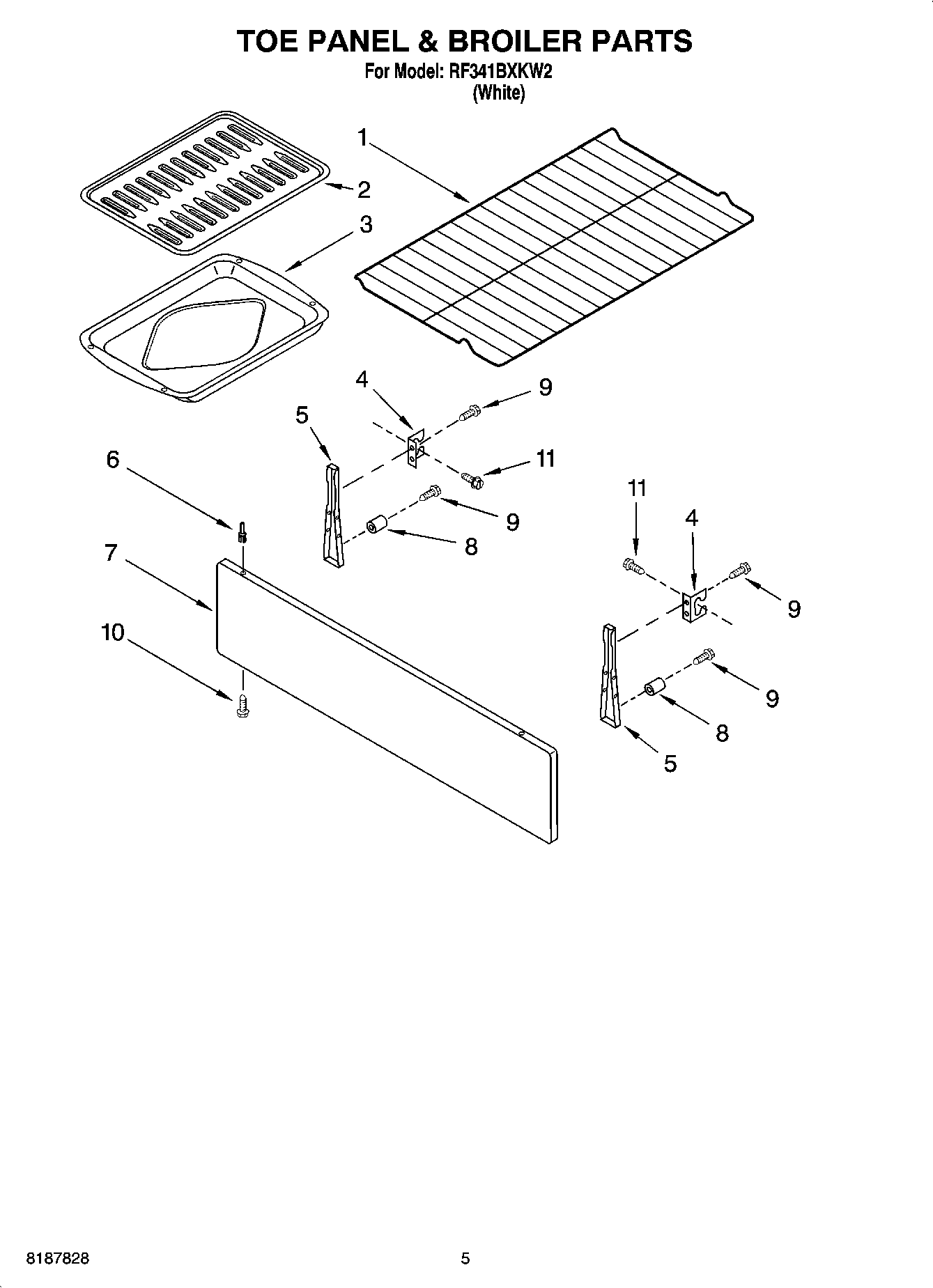

RF341BXKW2 04 – TOE PANEL & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Bracket, Toe Panel
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
7Panel, Drawer Frnt (White)
8W10877054 Whirlpool Spacer Assembly
9WP3196175 Whirlpool Screw
10WP3400832 Whirlpool Screw
113196265 Whirlpool Oven Screw
