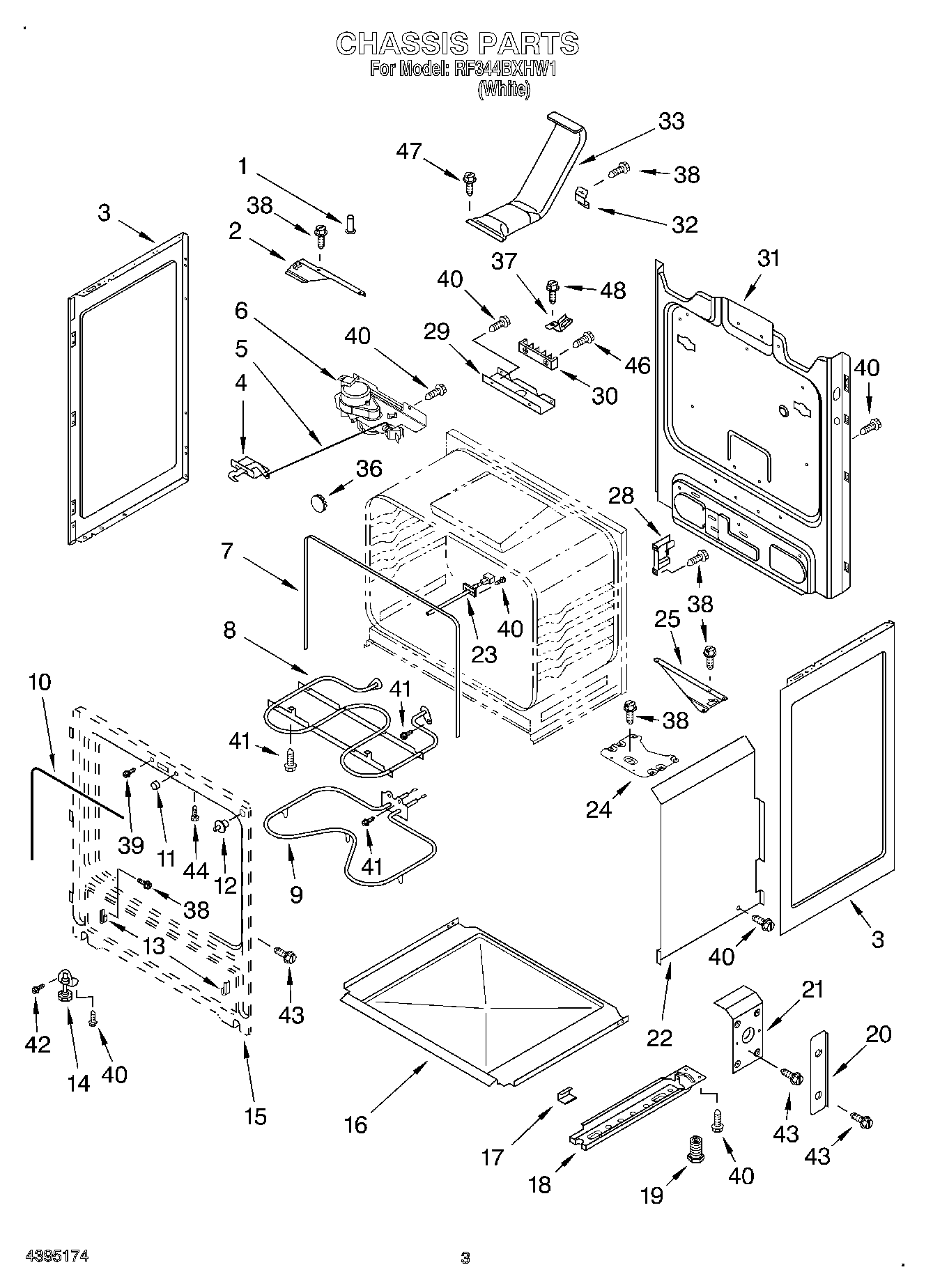

| 1 | Tube, Oven Vent |
| 2 | Support, Corner LR |
| 3 | WPW10575396 Whirlpool Side Panel |
| 4 | WP9761013 Whirlpool Door Latch |
| 5 | Rod, Latch |
| 6 | WPW10107820 Whirlpool Door Latch |
| 7 | Seal, Oven Flange |
| 8 | W10856603 Whirlpool Broil Element |
| 9 | WPW10308477 Whirlpool Bake Element |
| 10 | W11542153 Whirlpool Door Gasket |
| 11 | W10877054 Whirlpool Spacer Assembly |
| 12 | WP3196262 Whirlpool Light Switch |
| 13 | WP3195546 Whirlpool Drawer Glide |
| 14 | WP3196037 Whirlpool Leveling Foot |
| 15 | Frame, Front (Not Serviceable) |
| 16 | WP8054068 Whirlpool Retainer |
| 17 | Clip, Panel (6) |
| 18 | WPW10306546 Whirlpool Base Rail |
| 19 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 20 | Shield, Outer (2) |
| 21 | Shield, Inner (2) |
| 22 | Retainer, Side (2) |
| 23 | WP8273340 Whirlpool Sensor |
| 24 | Support, Front (2) |
| 25 | Support, Corner RR |
| 28 | W10404688 Whirlpool Bracket Support |
| 29 | W11728255 Whirlpool Service Bracket |
| 30 | WP112432 Whirlpool Nut Assembly |
| 30 | WP8203546 Whirlpool Terminal Block |
| 31 | Back, Main |
| 32 | Bracket, Flue |
| 33 | WPW10134285 Whirlpool Vent Tube |
| 36 | Button, Plug |
| 37 | Ground Strap |
| 38 | WP3196175 Whirlpool Screw |
| 39 | WP3400832 Whirlpool Screw |
| 41 | WP3196174 Whirlpool Screw |
| 42 | Screw |
| 43 | WP7101P246-60 Whirlpool Screw |
| 44 | SCREW |
| 46 | WP3400016 Whirlpool Screw Assembly |
| 47 | WP489491 Whirlpool Refrigerator Screw |
| 48 | WPW10208653 Whirlpool Insulation |
| 48 | WP8272612 Whirlpool Insulation |
| 48 | 8053915 Whirlpool Oven Insulation |
| 48 | W11244557 Whirlpool Screw |
