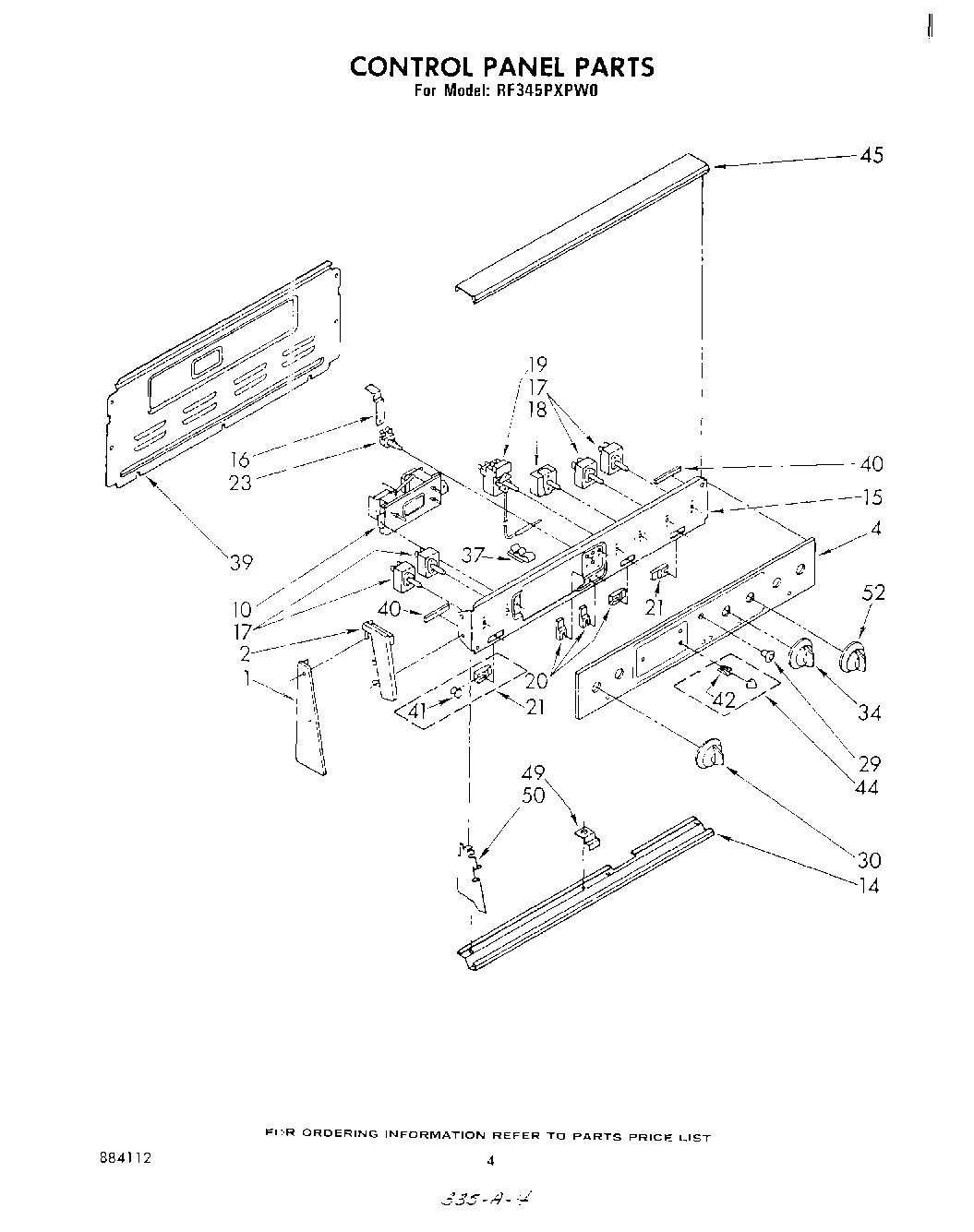

RF345PXPW0 04 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	End Trim L.H.
1	WP308685 Whirlpool Microwave Screw
1	Washer
1	WP3390631 Whirlpool Screw
2	End Cap L.H.
2	End Cap R.H.
2	W11693756 Whirlpool Screw Assembly
4	Control Panel, Glass
10	Timer, Digital
14	Bottom Trim
15	Bracket, Control
15	Washer
16	Brace, Control Bracket
16	Screw,
17	W10900107 Whirlpool Oven Surface Element Switch
18	Switch, Selector (4 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
20	Insulation Oven Door Plug
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Switch, Oven Light
23	Lockwasher
29	Bezel Switch (1)
30	Knob, Control (4)
34	Screw
34	Knob, Control (4)
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
40	Seal, Foam
41	Lens (4)
42	Spring (3)
44	WP3169181 Whirlpool Knob
45	Trim, Top
49	Support, Wedge
49	Screw
50	WP965173 Whirlpool Dishwasher Screw
50	Shield, Glass (2)
52	Knob, Control
52	WP688805 Whirlpool Spring Clip
