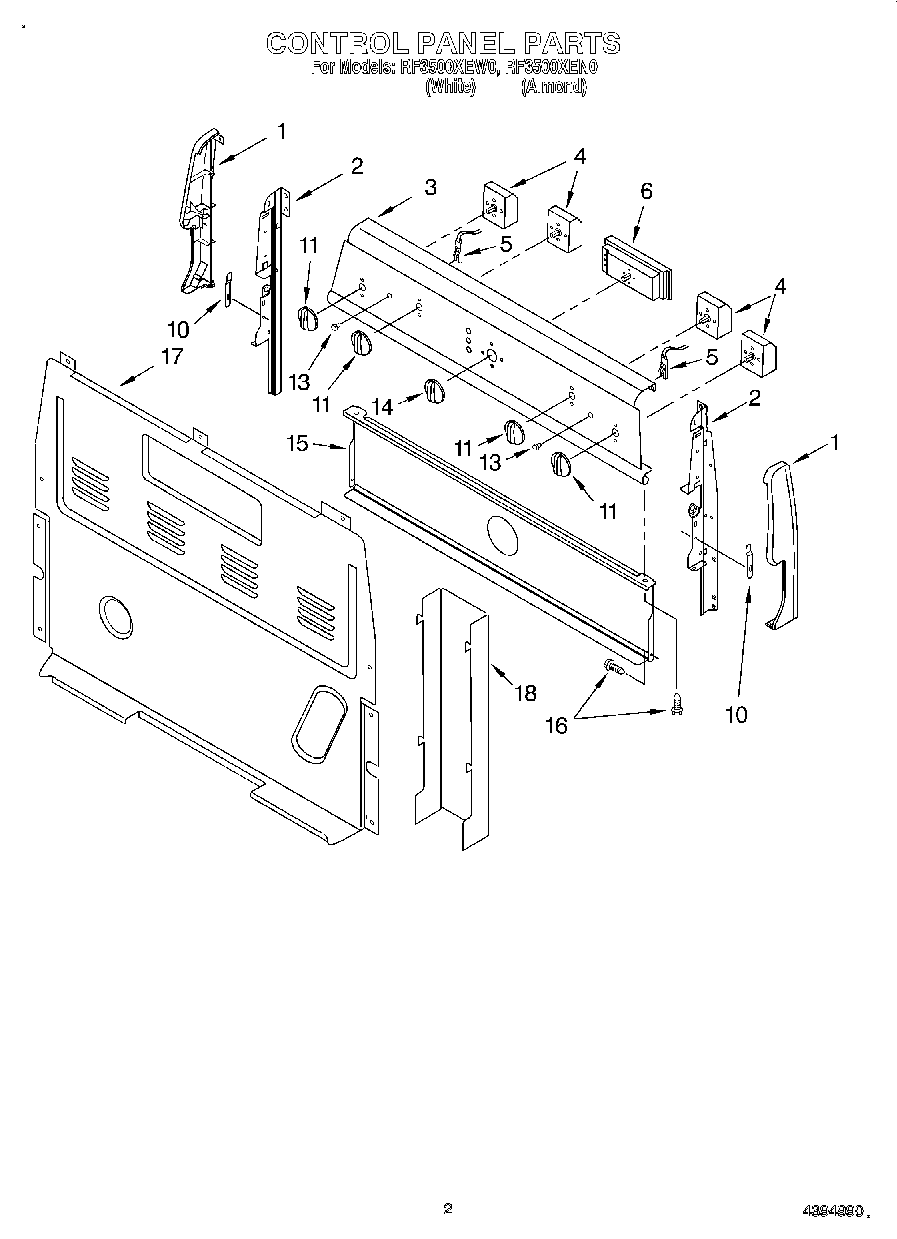

RF3500XEW0 02 – CONTROL PANEL

RF3500XEW0 02 – CONTROL PANEL

Written by

in

RF3500XEW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4Switch, Infinite (Screw (8))
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Light, Indicator (Surface Unit (2))
63196172 Whirlpool Oven Screw
6Control, Oven
103196200 Whirlpool Clip
11WP3196231 Whirlpool Knob
13WP3196068 Whirlpool Light Lens
14Knob, Thermostat
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WPW10326122 Whirlpool Black Cover
18SCREW
