RF3500XEW0 05 – DOOR, LIT/OPTIONAL

RF3500XEW0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF3500XEW0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	W11396691 Whirlpool Element Receptacle and Wire Kit
	3184020 Whirlpool Oven Wire
	3196696 Whirlpool Clip
	WP3196154 Whirlpool Screw Assembly
	Harness, Wire (Door Switch)
	Literature (Installation, Instructions (Template))
	WPL 3196697
	3400964 Whirlpool Oven Clip
	WPL LIT3195944
	WPL 3195193
	WPL LIT3196147
	WPL LIT3196275

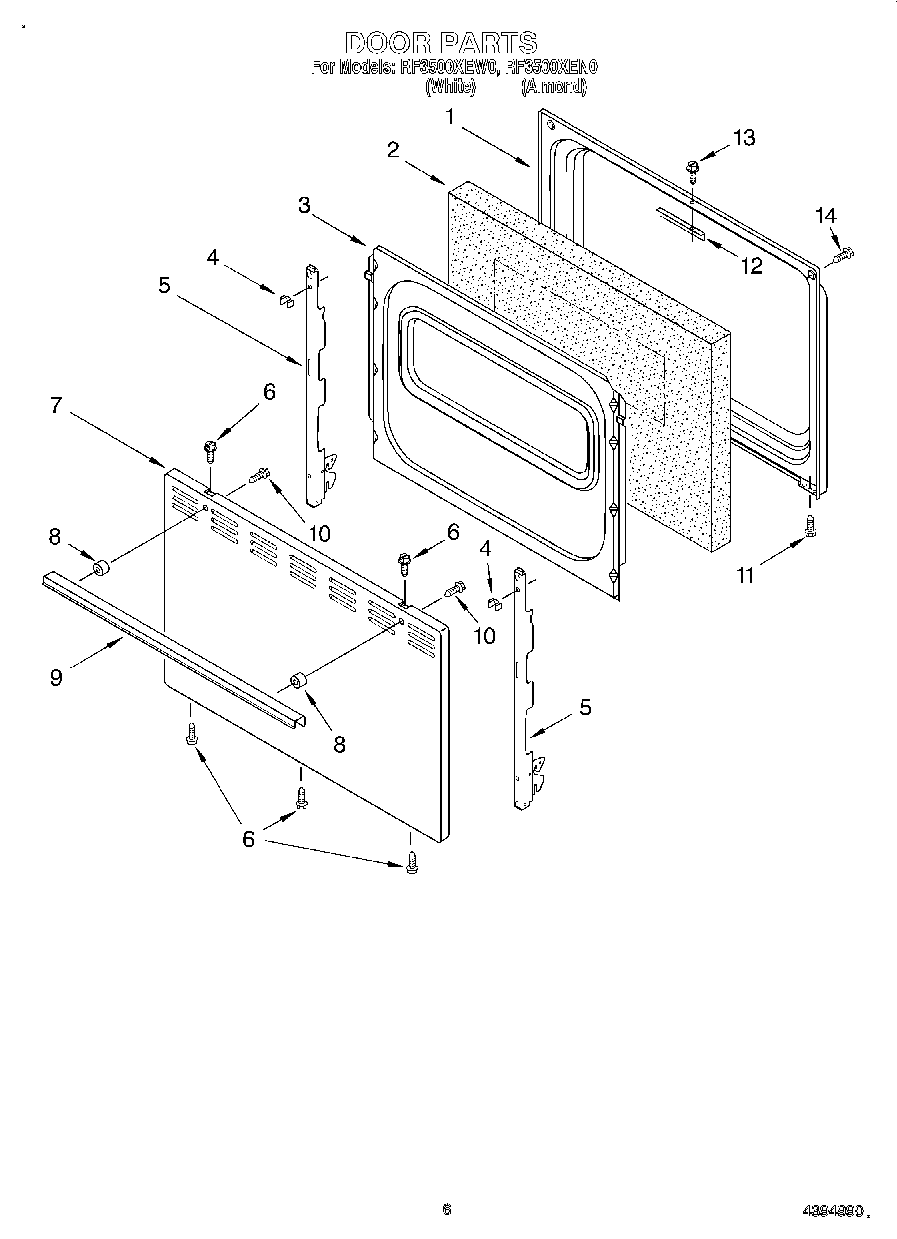

1	Liner, Door
2	Insulation, Door
3	W11699790 Whirlpool Retainer
4	Bracket, Saddle (2)
5	Hinge, Door (2)
6	Screw, Panel (2) (Almond)
6	3196558 Whirlpool Oven Screw
7	Panel, Outer Door (White)
7	Panel, Outer Door (Almond)
8	WP3196143 Whirlpool Spacer Assembly
8	Spacer, Handle (2) (Almond)
9	WP3195263 Whirlpool Door Handle
9	Handle, Oven Door (Almond)
10	WP3196163 Whirlpool Screw
11	W10491985 Whirlpool Screw
12	Bracket, Latch
13	WP3400832 Whirlpool Screw
14	1
14	8212471 Whirlpool Oven Paint
14	Wire (14 Ga. 200 c Brown)
14	Paint, Touch-Up 1/2 Oz. (Coffee)
14	Grease
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	Screw
14	Golden Harvest
14	18 Ga. 80~c Rating (Red)
14	Wire (12 Ga. 150 c Black)
14	Wire (14 Ga. 150 c Yellow)
14	350942 Whirlpool Spray Paint
14	WPL 72112
14	Platinum (Uncut)
14	Enamal, Toast (1 Qt. Uncut)
14	Paint, Spray (13 Oz.) (Platinum)
14	Toast
14	Golden Harvest (Uncut)
14	72113 Whirlpool Touch-Up Paint
14	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	350956 Whirlpool Spray Assembly
14	511873 Whirlpool Refrigerator Paint
14	WPL 799832
14	WPW10208653 Whirlpool Insulation
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	242831 Whirlpool Oven Wire
14	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
14	Paint, Spray 13 Oz. (Avocado)
14	paint, spray 13 oz. (coffee)
14	72109 Whirlpool Dacor Avocado Touch-Up Paint
14	285006 Whirlpool Spray
14	Wire, 25“ Roll (White 14 GA.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25` Roll (Black 14 Ga.)
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	350930 Whirlpool White Spray Paint
