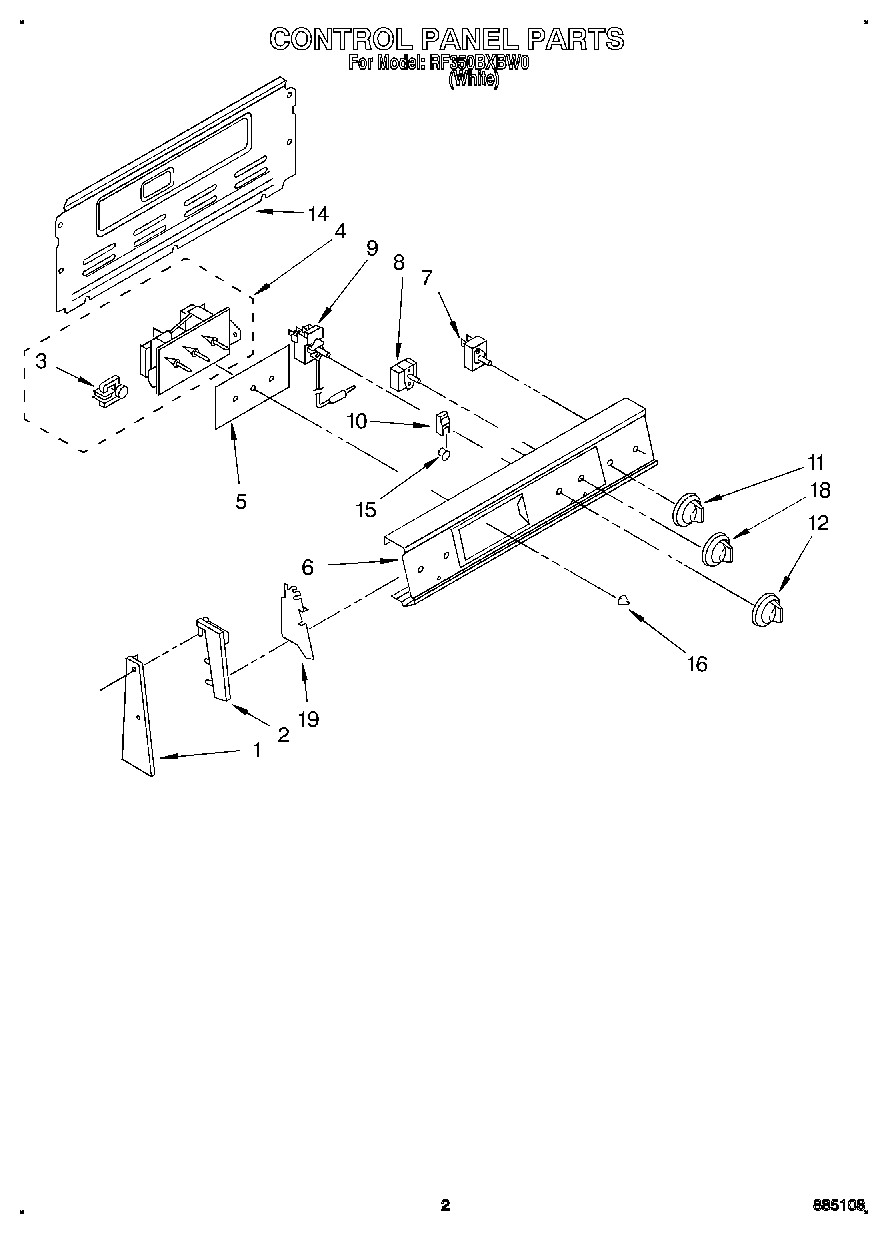

RF350BXBW0 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
3	Motor, Timer
4	Timer, Control
5	Glass, Timer
6	Control Panel
7	WP3149404 Whirlpool Oven Surface Element Switch
7	Screw, 8-32 x 3/16 (2)
7	SWITCH-INF
8	Switch, Selector
9	Thermostat, 0ven Pyro
9	WP313808 Whirlpool Screw
10	Light, Indicator (250V)
10	Light, Indicator (Includes No. 12) (Surface Unit On)
11	Knob, (4) Infinite Switch (White/Almond/Gold)
12	Knob (Temp) (White/Almond)
14	Rear Cover Contr
14	SCREW
15	Lens, Amber
16	WP3169181 Whirlpool Knob
18	Knob (Selector)
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
