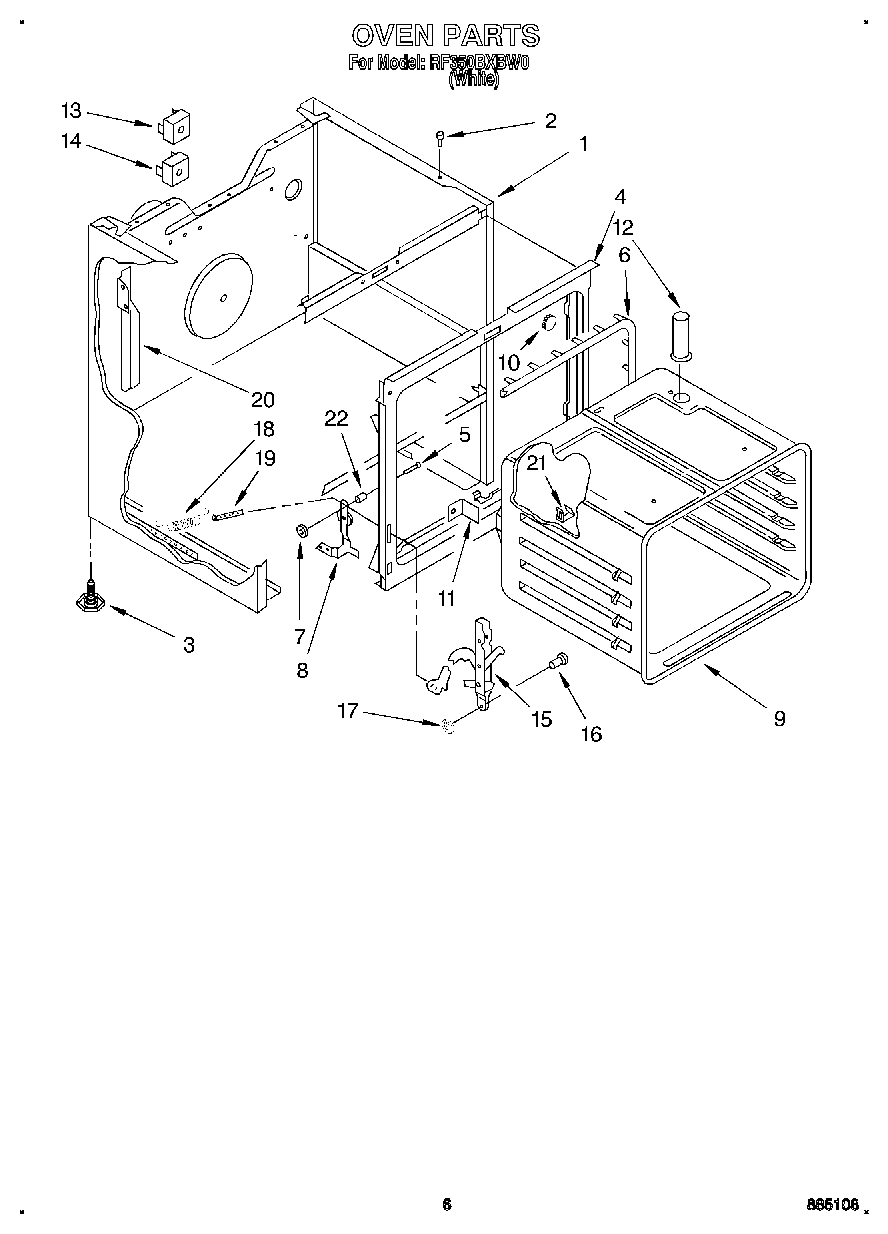

RF350BXBW0 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Front Frame
4	Screw (Top)
4	Screw (3)
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Conv.)
10	Plug Button
11	Bracket, Oven (Mounting)
12	Screw, 10A x 1/2 (2) (Black)
12	9755804 Whirlpool Oven Vent Tube
13	Sw
14	WPL 314215
14	Switch, Bake
15	Channel, Arm (2)
16	WP307986 Whirlpool Hinge Pin
17	Retainer Ring (2)
18	Spring, Oven Door (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	SCREW
20	Wire Cover-Controls (Right)
20	Wire Cover
21	98005642 Whirlpool Clip
22	Snubber, Door (2)
22	WPL 3169094
22	WPL 3169093
