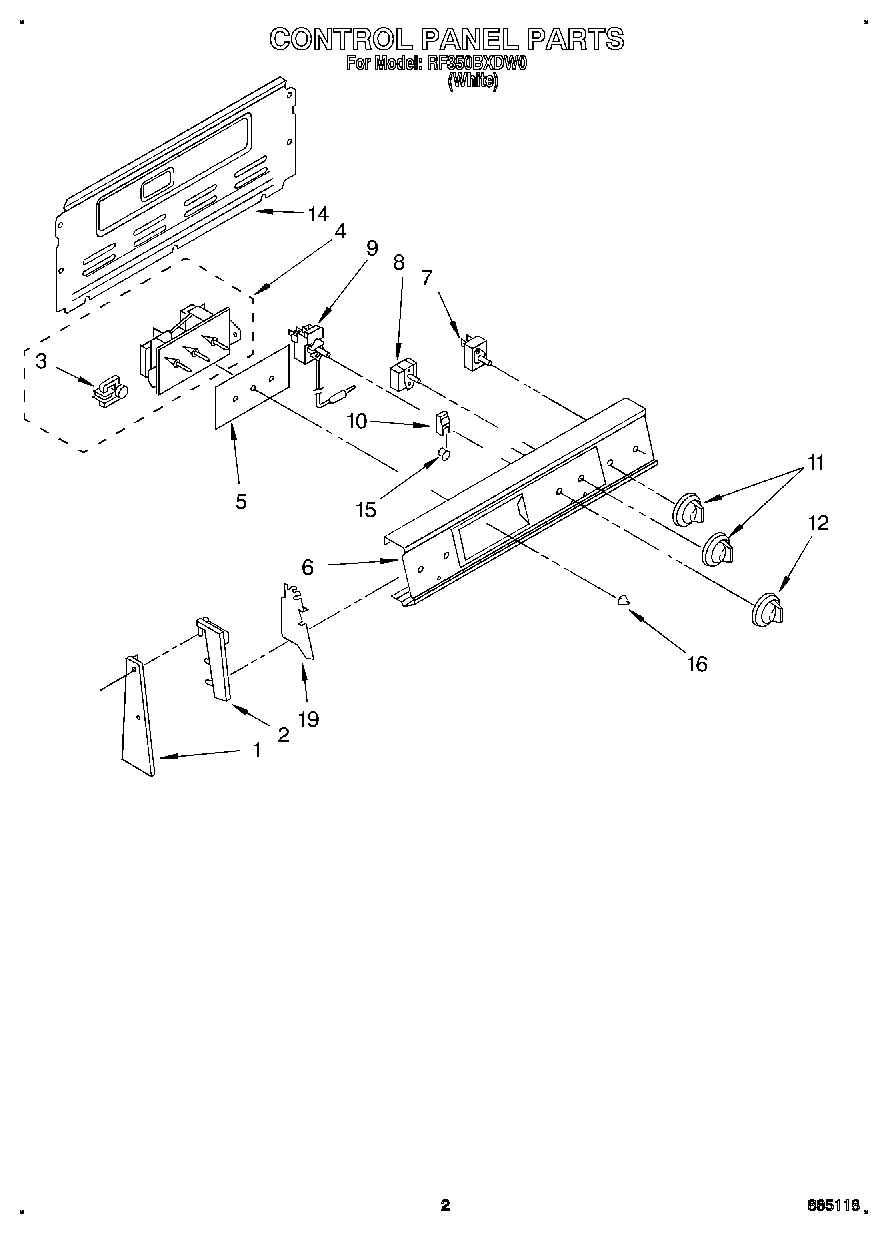

RF350BXDW0 02 – CONTROL PANELadmin2025-04-26T12:44:41+00:00RF350BXDW0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim (LH, Black) |
| 1 | End Trim R.H. (Black) |
| 2 | End Cap L.H. (Black) |
| 2 | End Cap, R.H. (Black) |
| 2 | Screw, |
| 3 | Motor, Timer |
| 4 | Timer, Control |
| 5 | Glass, Timer |
| 6 | Panel, Control |
| 7 | SWITCH-INF |
| 7 | WP3149404 Whirlpool Oven Surface Element Switch |
| 8 | Screw, 8-32 x 3/16 (2) |
| 8 | Switch, Selector (5 Position) |
| 9 | Thermostat, 0ven |
| 9 | WP313808 Whirlpool Screw |
| 10 | Light, Indicator (250V) |
| 10 | Indicator Light (Surface Unit On) |
| 11 | WP3196231 Whirlpool Knob |
| 12 | Knob, Thermostat (Black) |
| 14 | Rear Cover Contr |
| 14 | SCREW |
| 15 | Lens, Amber |
| 16 | WP3169181 Whirlpool Knob |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Shield (2) |
