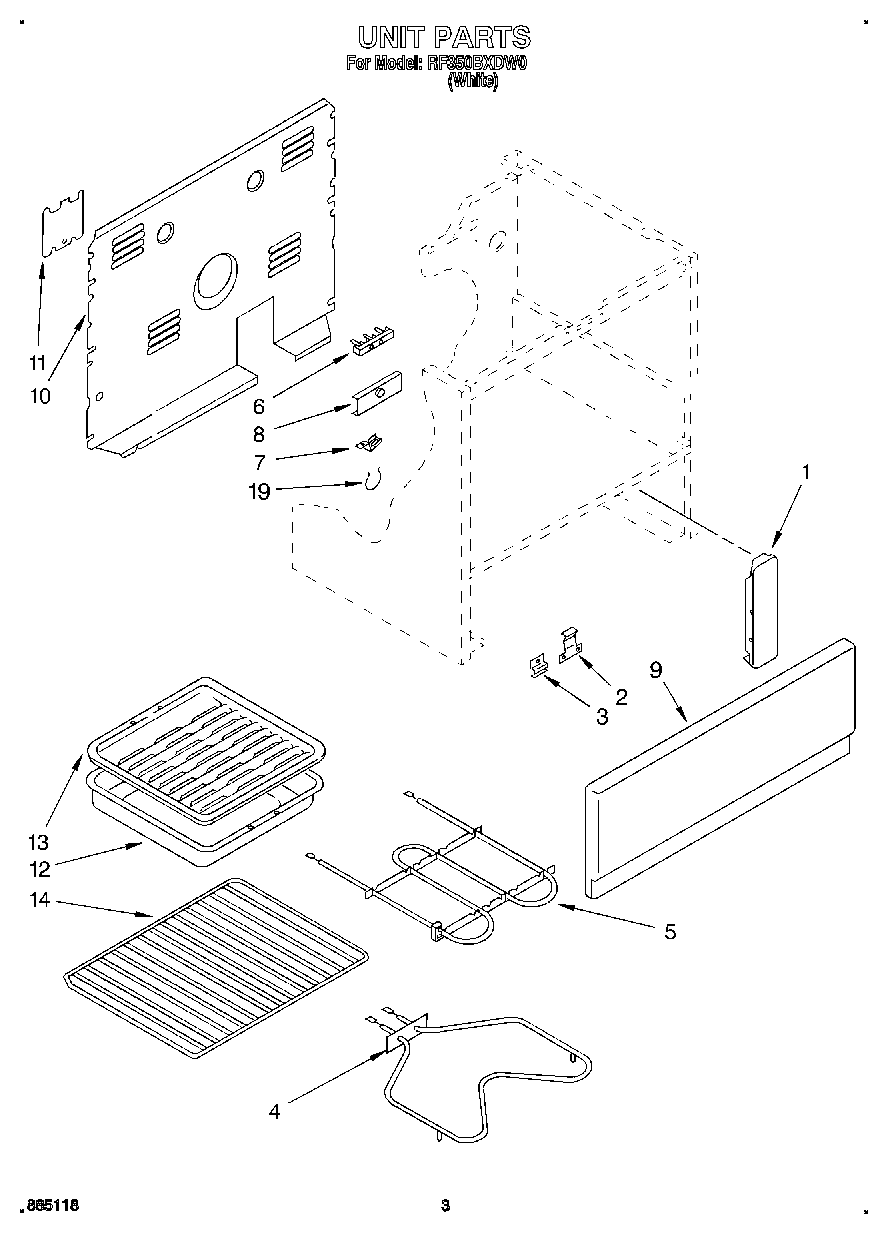

RF350BXDW0 03 – UNIT

RF350BXDW0 03 – UNIT

Written by

in

RF350BXDW0 03 – UNIT

Products

PositionProduct
1Bracket, Mounting (2)
2Panel, Spring (2)
3WPL 307957
4ELMNT-BAKE
5Screw (2)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
9Panel Drawer (White)
10Cover, Rear
11SCREW
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
198273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1916515 Whirlpool Clip
