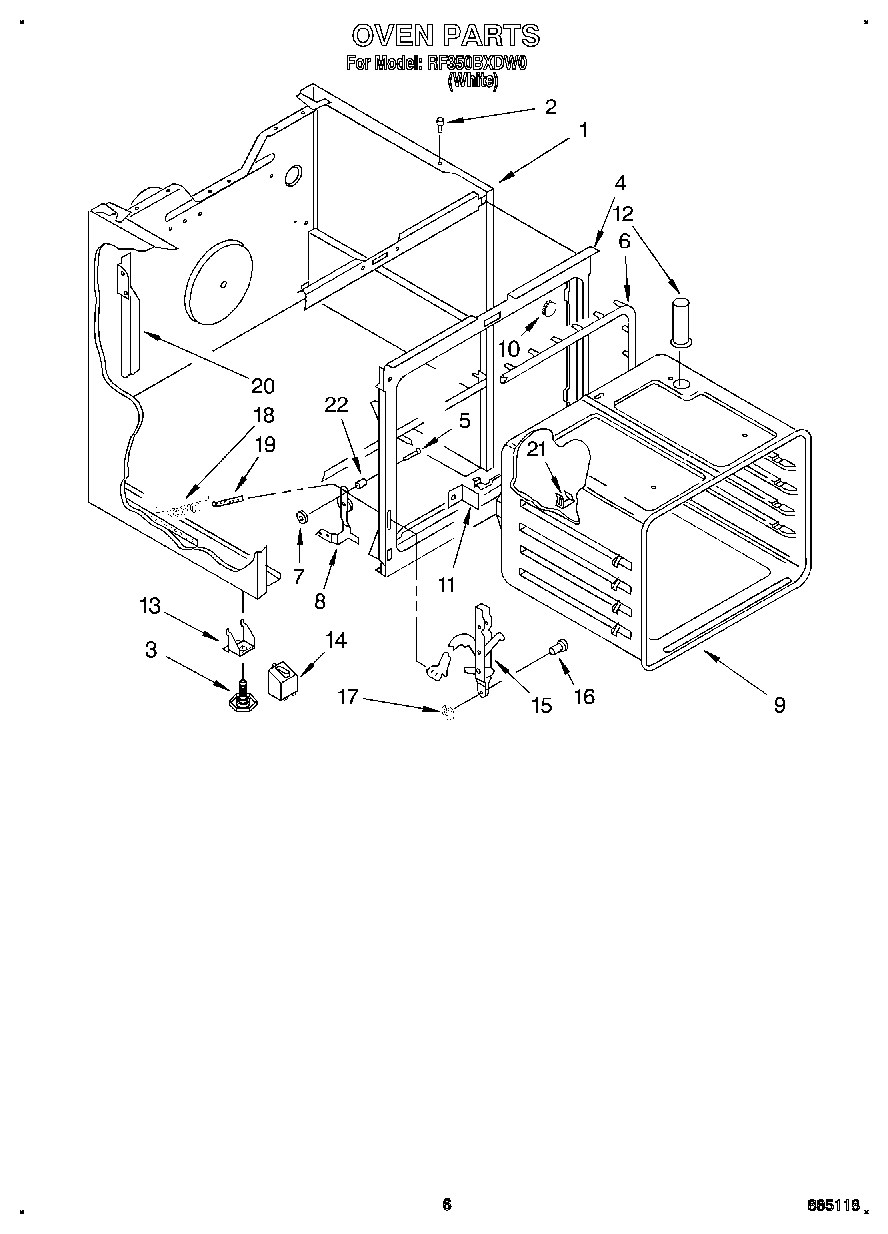

RF350BXDW0 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Front Frame
4	Screw (3)
4	Screw (Top)
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Conv.)
10	Plug Button
11	Bracket, Oven (Mounting)
12	9755804 Whirlpool Oven Vent Tube
12	Screw, 10A x 1/2 (2) (Black)
13	Support, Foot (2)
14	Cover, Foot (2)
15	Channel, Arm (2)
16	WP307986 Whirlpool Hinge Pin
17	Retainer Ring (2)
18	Spring, Oven Door (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Wire Cover-Controls (Right)
20	Wire Cover
20	SCREW
21	98005642 Whirlpool Clip
22	WPL 3169094
22	Snubber, Door (2)
22	WPL 3169093
