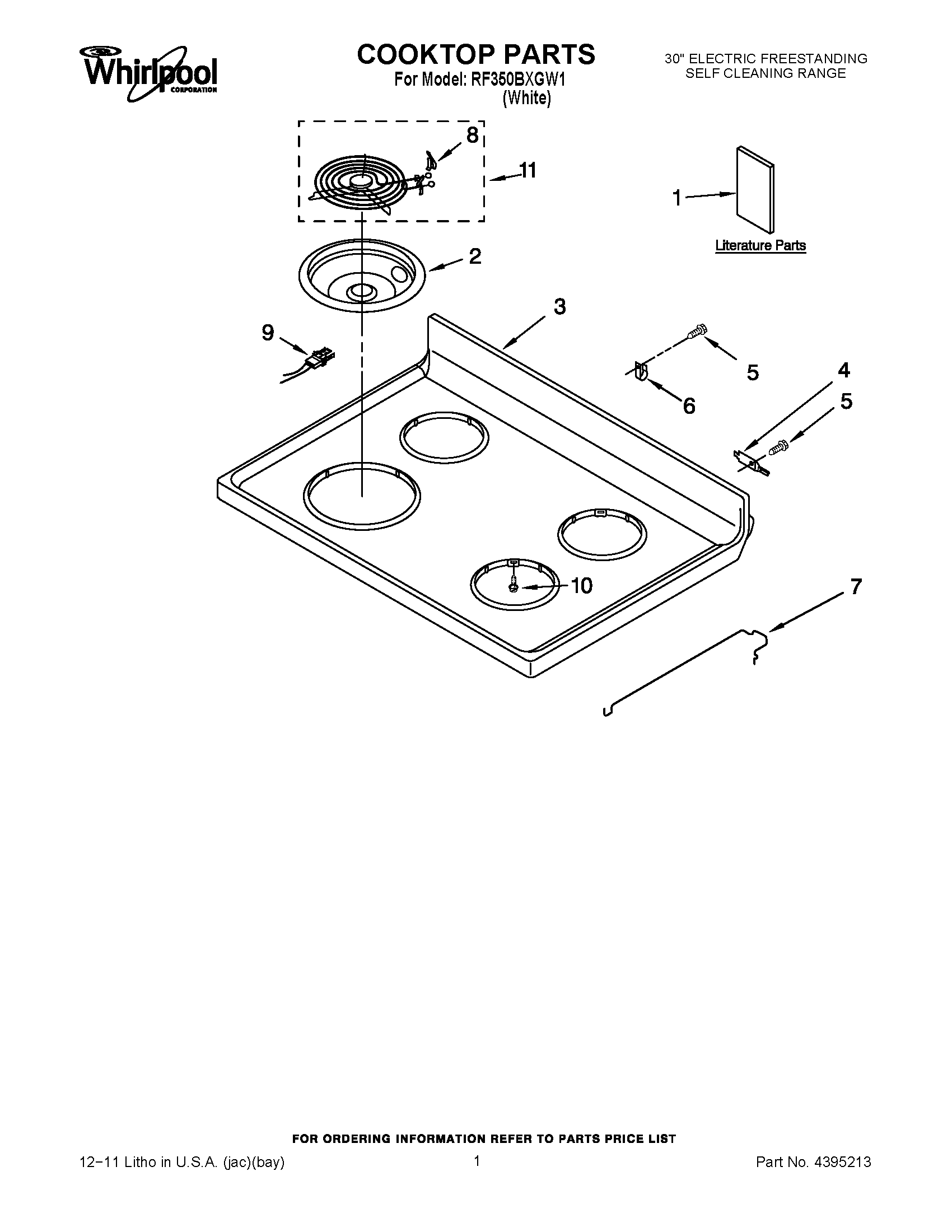

RF350BXGW1 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	WPL LIT8053396
1	Literature (Instruction, Installation)
1	Literature (Installation, Instructions (Template))
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2	DRIP BOWL 8" W/HOLE CHROME
3	Cooktop (White)
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP308605 Whirlpool Refrigerator Clamp
7	WP3195812 Whirlpool Cooktop Rod
8	WP3195917 Whirlpool Clip Assembly
9	814399 Whirlpool Receptacle Kit
10	WP3196154 Whirlpool Screw Assembly
11	WPW10345407 Whirlpool Surface Element
11	WP9761346 Whirlpool Stove Surface Burner Element
