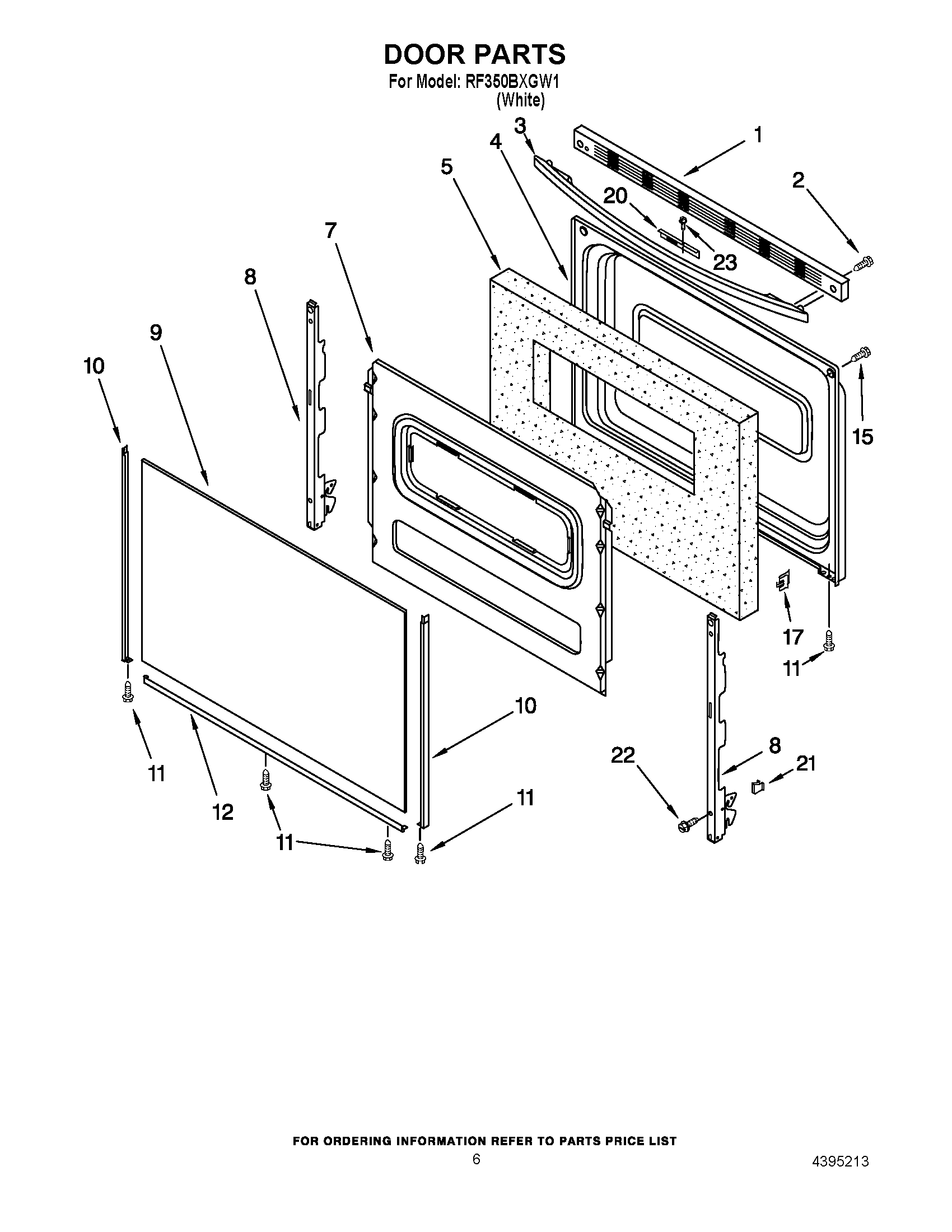

RF350BXGW1 05 – DOOR PARTS

RF350BXGW1 05 – DOOR PARTS

Written by

in

RF350BXGW1 05 – DOOR PARTS

Products

PositionProduct
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
5WPW10278991 Whirlpool Insulation
7W11699790 Whirlpool Retainer
8Hinge, Door (2)
9Glass, Door (Black)
11W10491985 Whirlpool Screw
128184858 Whirlpool Door Trim
15WP179051 Whirlpool Screw
17Clip, Glass (4)
20Bracket, Latch
21WP3196925 Whirlpool Clip Assembly
22WP3196175 Whirlpool Screw
23WP3400832 Whirlpool Screw
