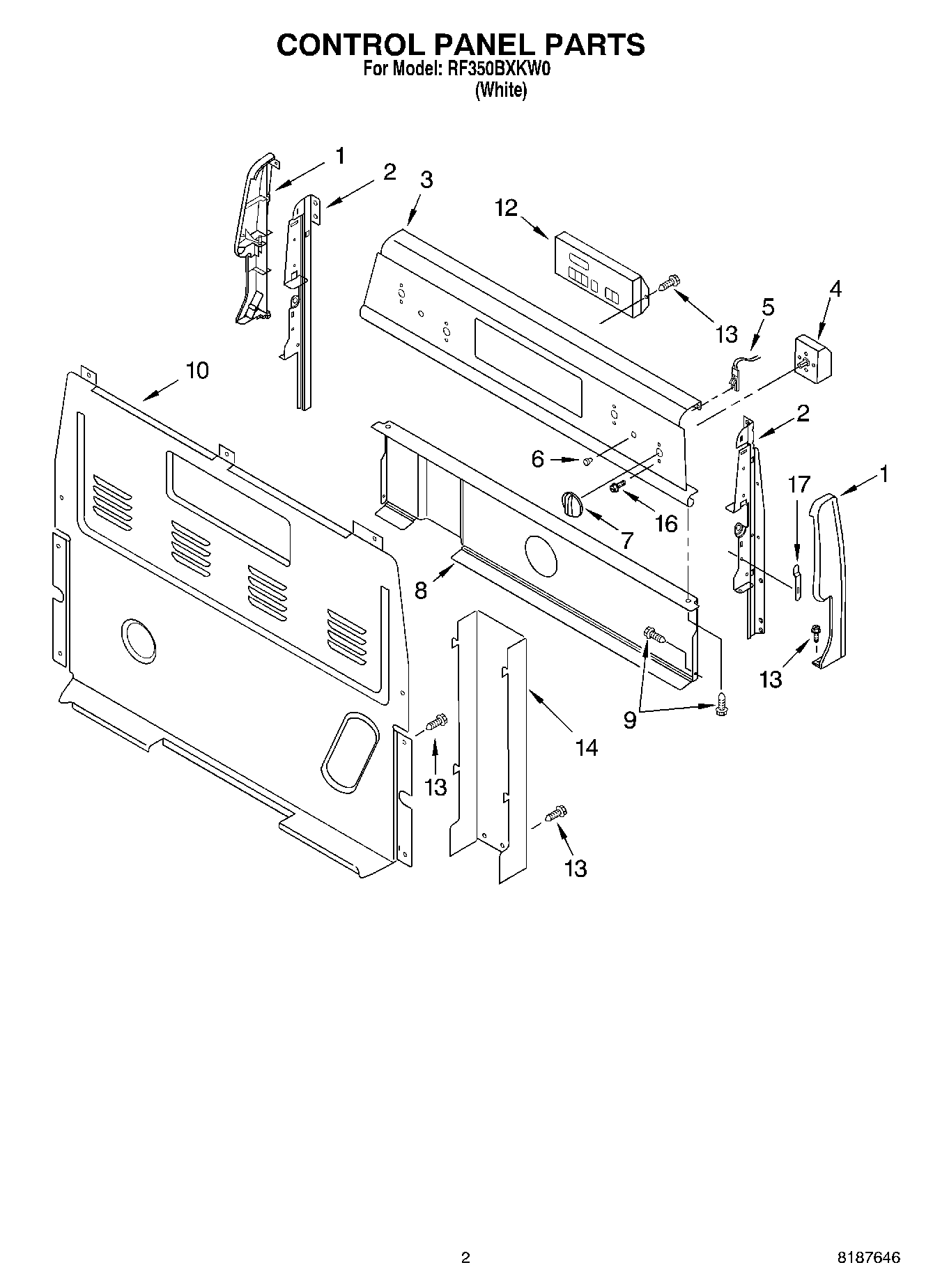

RF350BXKW0 02 – CONTROL PANEL

RF350BXKW0 02 – CONTROL PANEL

Written by

in

RF350BXKW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
