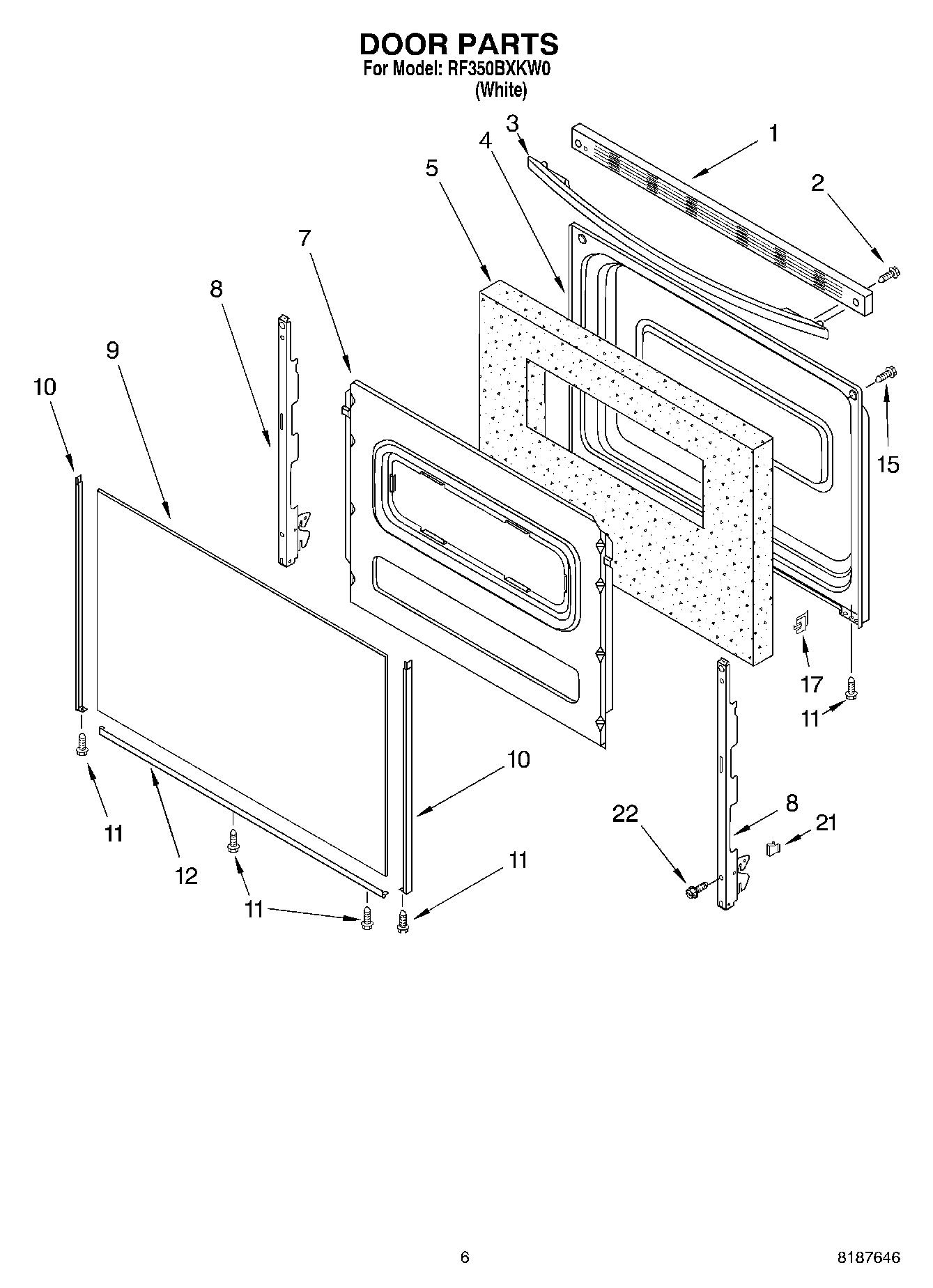

RF350BXKW0 05 – DOOR

Products

Position	Product
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
7	W11699790 Whirlpool Retainer
8	Hinge, Door (2)
9	Glass, Door (Black)
11	W10491985 Whirlpool Screw
12	8184858 Whirlpool Door Trim
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	1
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	WPL 8273323
22	8212471 Whirlpool Oven Paint
22	3184020 Whirlpool Oven Wire
22	3196696 Whirlpool Clip
22	Grease
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	WPL 8273266
22	W11396691 Whirlpool Element Receptacle and Wire Kit
22	WP3196154 Whirlpool Screw Assembly
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	WP3196175 Whirlpool Screw
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Clip, Ground Wire
22	3400964 Whirlpool Oven Clip
22	814381 Whirlpool Pin
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	350930 Whirlpool White Spray Paint
