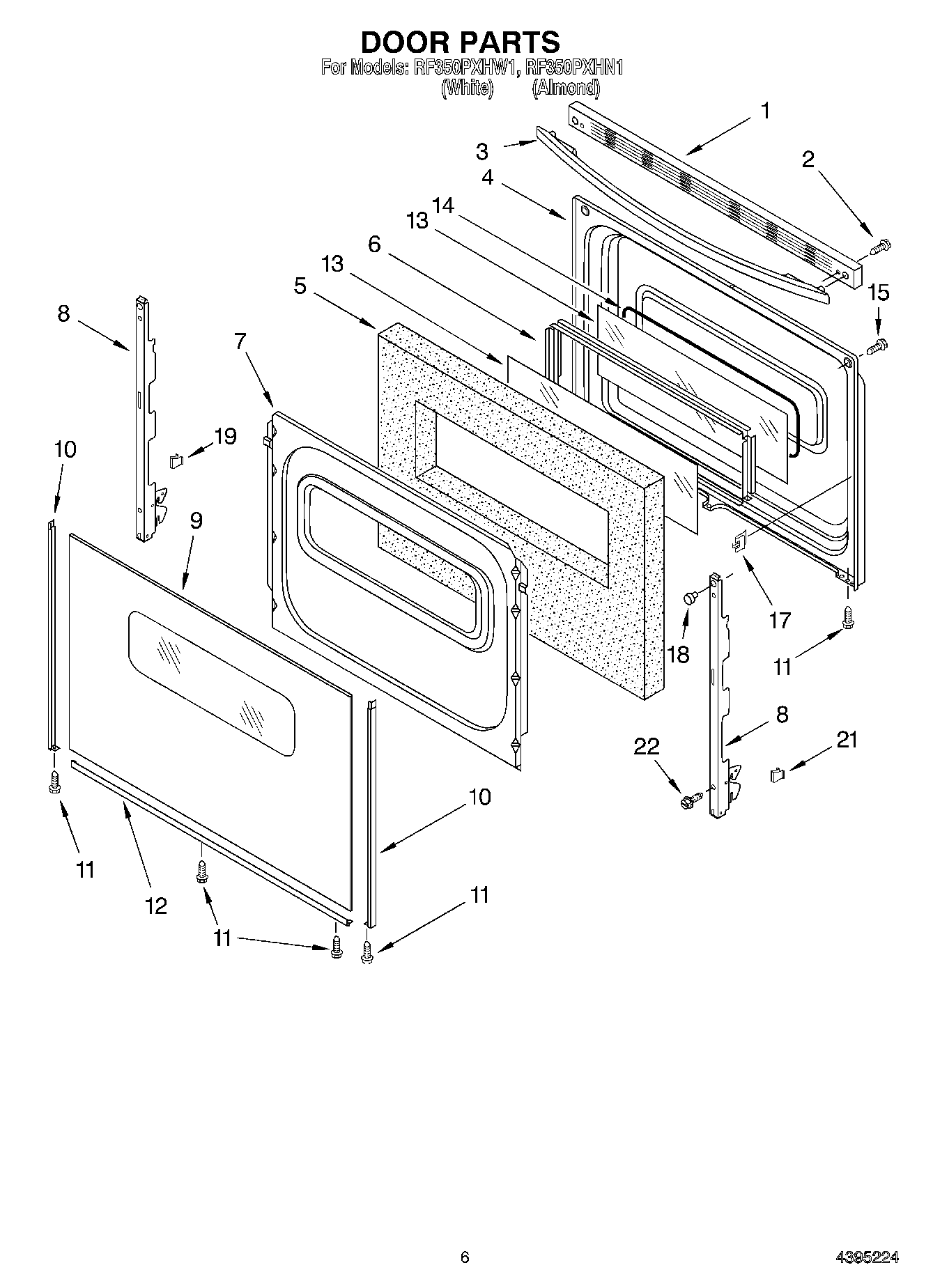

RF350PXHW1 05 – DOOR

Products

Position	Product
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
6	Frame, Glass
7	9761499 Whirlpool Oven Retainer
8	WP8053807 Whirlpool Oven Door Hinge
9	WP9762477 Whirlpool Glass Door
11	W10491985 Whirlpool Screw
12	8184858 Whirlpool Door Trim
13	WP9758164 Whirlpool Door Glass
14	8522415 Whirlpool Oven Wind Gasket
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	3184020 Whirlpool Oven Wire
22	1
22	3196696 Whirlpool Clip
22	Grease
22	Wire (14 Ga. 200 c Brown)
22	8212471 Whirlpool Oven Paint
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	350942 Whirlpool Spray Paint
22	WP3196154 Whirlpool Screw Assembly
22	WPL 8273335
22	WPL 8273266
22	WPL 8273273
22	W11396691 Whirlpool Element Receptacle and Wire Kit
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	WP3196175 Whirlpool Screw
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Clip, Ground Wire
22	3400964 Whirlpool Oven Clip
22	814381 Whirlpool Pin
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	285006 Whirlpool Spray
22	350930 Whirlpool White Spray Paint
