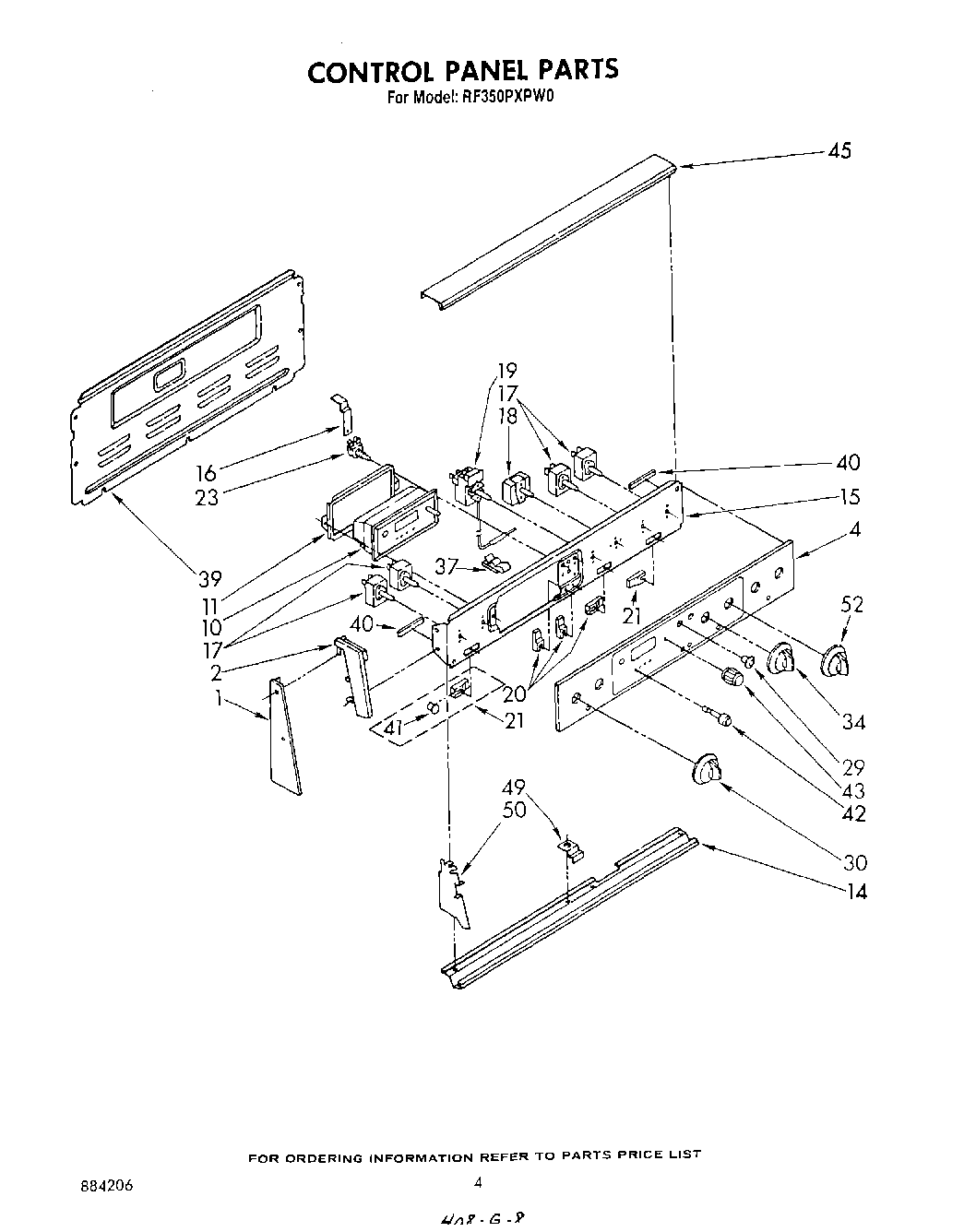

RF350PXPW0 04 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	WP308685 Whirlpool Microwave Screw
1	End Trim L.H.
1	Washer
1	WP3390631 Whirlpool Screw
2	W11693756 Whirlpool Screw Assembly
2	End Cap R.H.
2	End Cap L.H.
4	Control Panel, Glass
10	Timer, Digital
11	Bracket, Timer
14	Bottom Trim
15	Bracket, Control
15	Washer
16	Brace, Control Bracket
16	Screw,
17	W10900107 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (4 Position)
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven
20	Light, Indicator (Oven, Lock, Clean) (Includes Illus. 41)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Switch, Oven Light
23	Lockwasher
29	Bezel Switch (1)
30	Knob, Control (4)
34	Knob, Control (4)
34	Screw
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
40	Seal, Foam
41	Lens (4)
42	Sleeve-Igniter Wire (Lt. or Rt.)
43	Knob, Bit Generator (Black)
45	Trim, Top
49	Support, Wedge
49	Screw
50	WP965173 Whirlpool Dishwasher Screw
50	Shield, Glass (2)
52	Knob, Control
52	WP688805 Whirlpool Spring Clip
