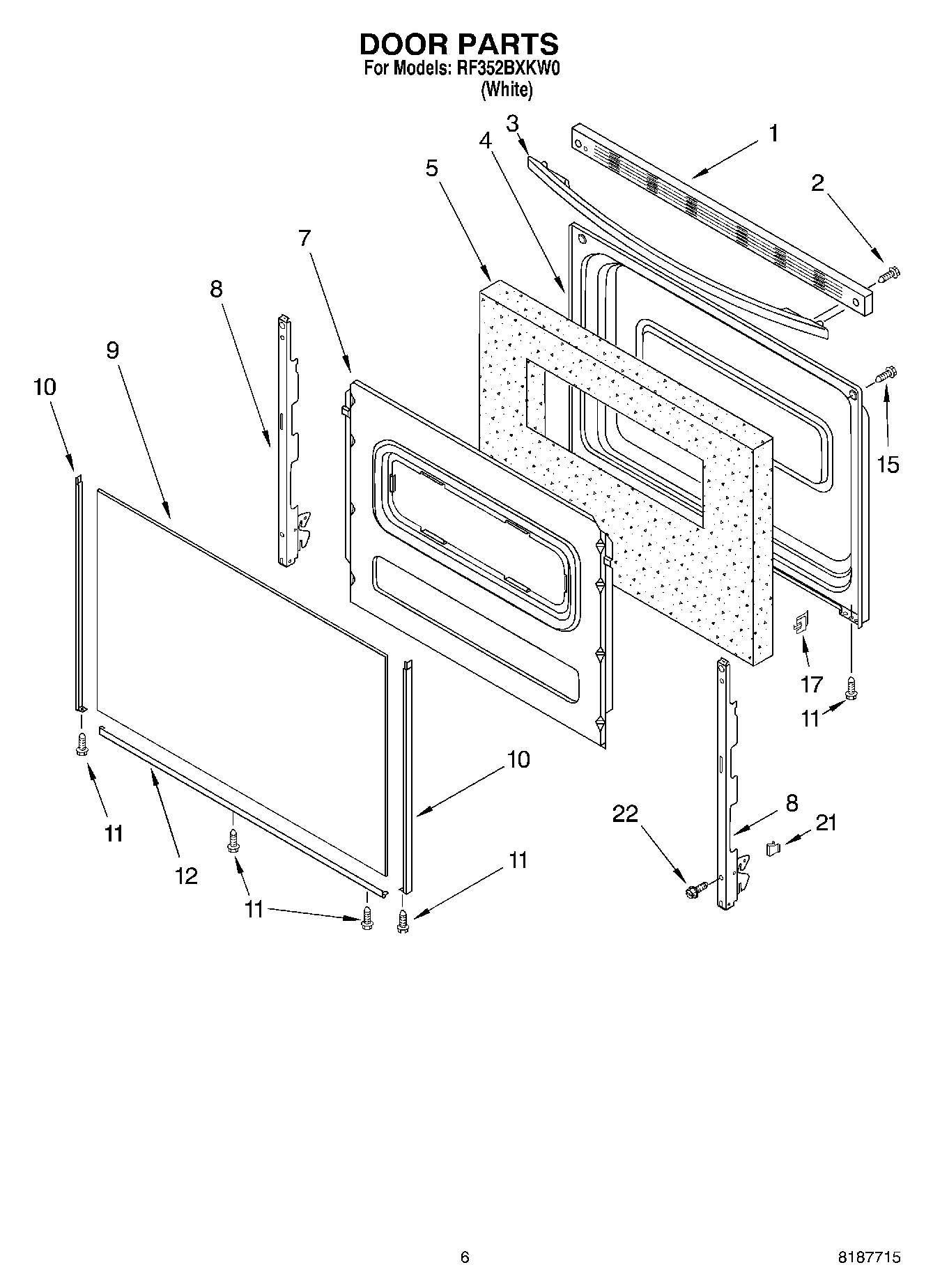

RF352BXKW0 05 – DOOR PARTS, MISCELLANEOUS PARTS

RF352BXKW0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

RF352BXKW0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI122615A
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Grease
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	WPL ARI122614A
	WPL ARI122613A
	WPL ARI122612A
	WPL ARI122611A
	WPL ARI122610A
	WPL ARI122609A
	WPL 8273323
	WPL ARI122616A
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 8273266
	WP3196154 Whirlpool Screw Assembly
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Black 14 Ga.)
	WP72107 Whirlpool Touchup
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Almond (Uncut)
	WPW10208653 Whirlpool Insulation
	350942 Whirlpool Spray Paint
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	285006 Whirlpool Spray
	Clip, Ground Wire
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	814381 Whirlpool Pin
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
7	W11699790 Whirlpool Retainer
8	Hinge, Door (2)
9	Glass, Door (Black)
10	W10761018 Whirlpool Dishwasher Left Door Trim
10	W10761014 Whirlpool Right Door Trim
11	W10491985 Whirlpool Screw
12	WP8523177 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
