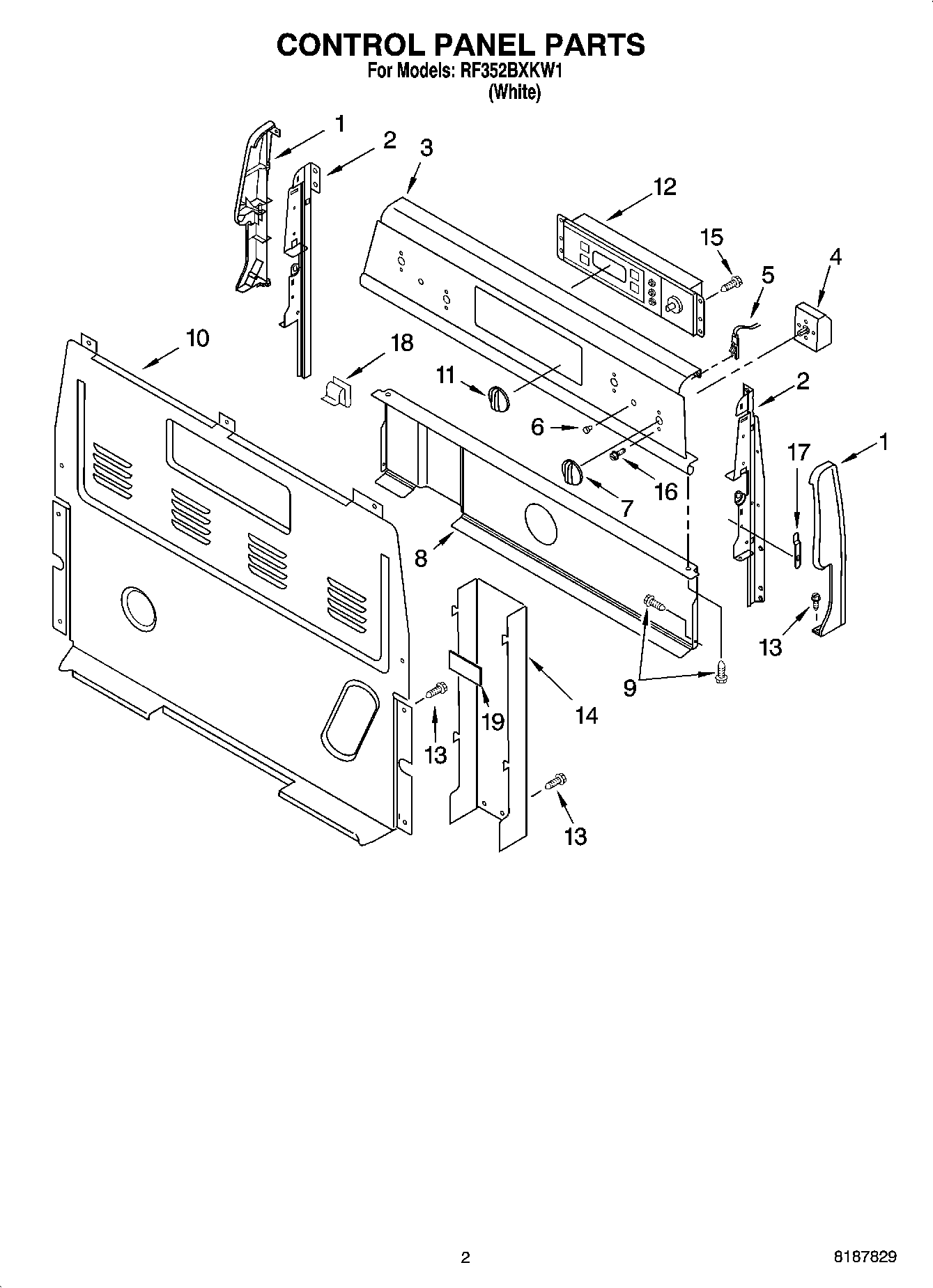

RF352BXKW1 02 – CONTROL PANEL PARTS

RF352BXKW1 02 – CONTROL PANEL PARTS

Written by

in

RF352BXKW1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob
12Control, Range (Black)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
19Card, Insulation
