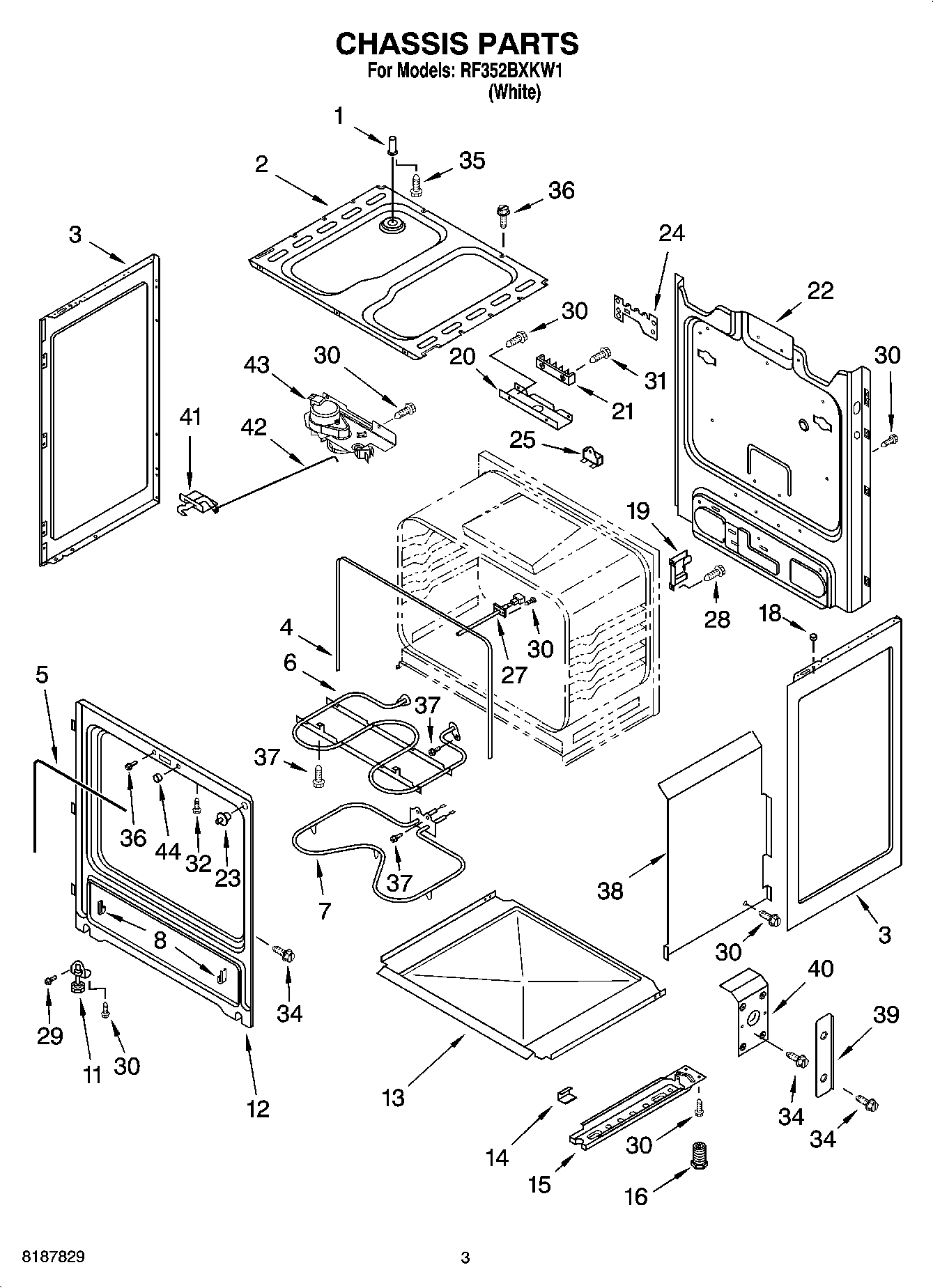

RF352BXKW1 03 – CHASSIS PARTS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
4	Seal, Oven Flange
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	WP3195546 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front Not Serviced
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP9761958 Whirlpool Range Terminal Block
21	WP112432 Whirlpool Nut Assembly
22	Back, Main
23	WP3196262 Whirlpool Light Switch
24	Suppressor, Trans
25	WP3196548 Whirlpool Thermal Fuse
25	3196172 Whirlpool Oven Screw
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	Screw
31	WP3400016 Whirlpool Screw Assembly
32	SCREW
33	W11244557 Whirlpool Screw
34	WP7101P246-60 Whirlpool Screw
35	WP3196567 Whirlpool Screw
36	WP3400832 Whirlpool Screw
37	WP3196174 Whirlpool Screw
38	Retainer, Side (2)
39	Shield, Outer (2)
40	Shield, Inner (2)
41	WP9761013 Whirlpool Door Latch
42	Rod, Latch
43	WPW10107820 Whirlpool Door Latch
44	WP8272612 Whirlpool Insulation
44	W10877054 Whirlpool Spacer Assembly
44	WPW10208653 Whirlpool Insulation
44	Insulation
