RF352BXKW1 04 – TOE PANEL & BROILER PARTS

RF352BXKW1 04 – TOE PANEL & BROILER PARTS

Written by

in

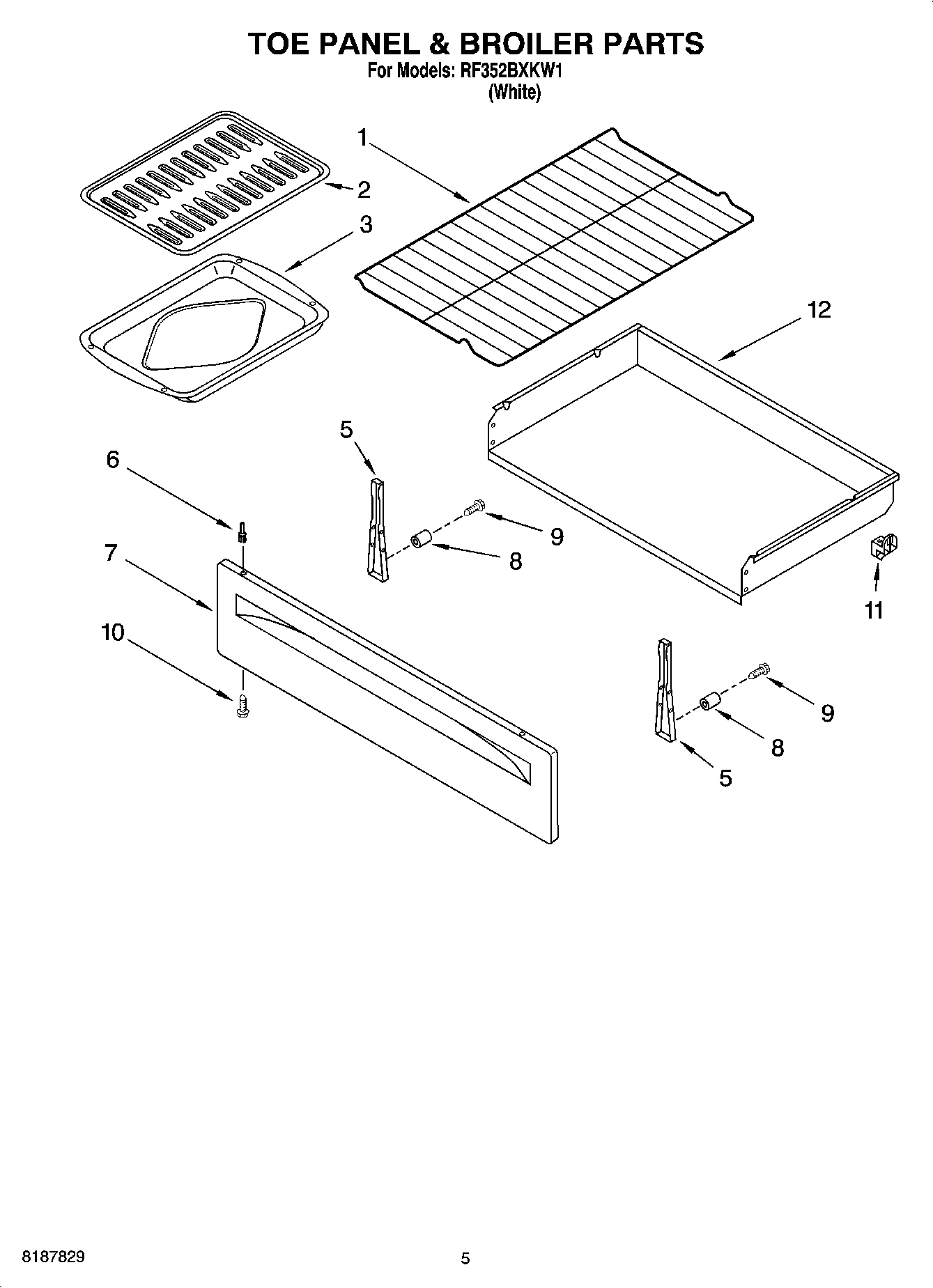

RF352BXKW1 04 – TOE PANEL & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
7W11219377 Whirlpool Drawer Panel
8W10877054 Whirlpool Spacer Assembly
9WP3196175 Whirlpool Screw
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Drawer, Storage
