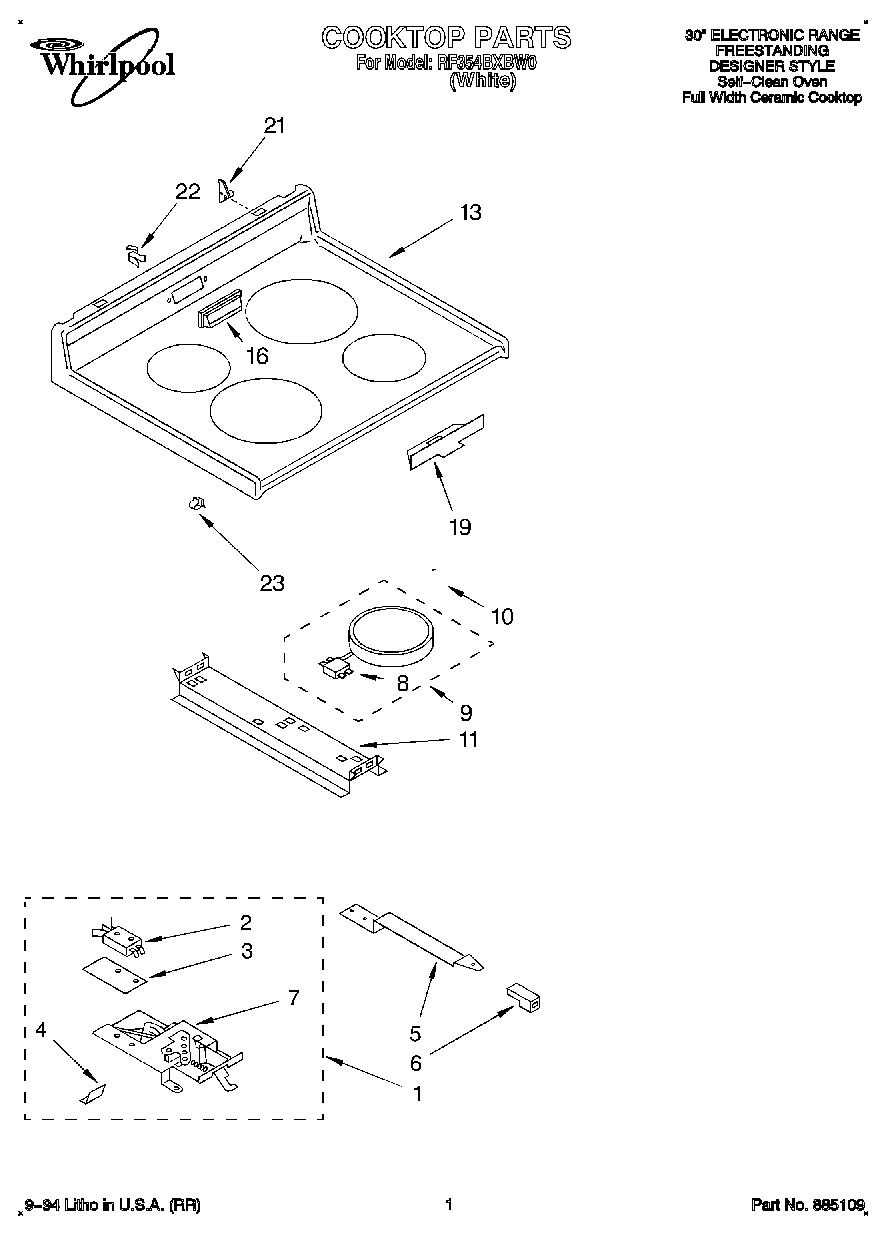

RF354BXBW0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	WPL LIT677973
	WPL LIT3150400
	Instructions, Installation
	Wiring Diagram
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Latch Mechanism
8	Switch, Limit (Use W/3183200 Element)
8	Limiter, Temp. (2100W, LF-RR)
9	Element, Surface (1700W Right Front)
9	Element, Surface (2100W Right Rear)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Back Splash (Screw (4) 10AB x 1/2“)
11	Bracket, (2) Element Support
13	Cooktop (White Mdl.)
13	WP308685 Whirlpool Microwave Screw
16	Cover, Vent (White)
19	Shield, Probe
21	Bracket, Cooktop (Left)
21	Bracket, Cooktop (Right)
21	SCREW
22	Clip, Vent Cover
23	Clip
