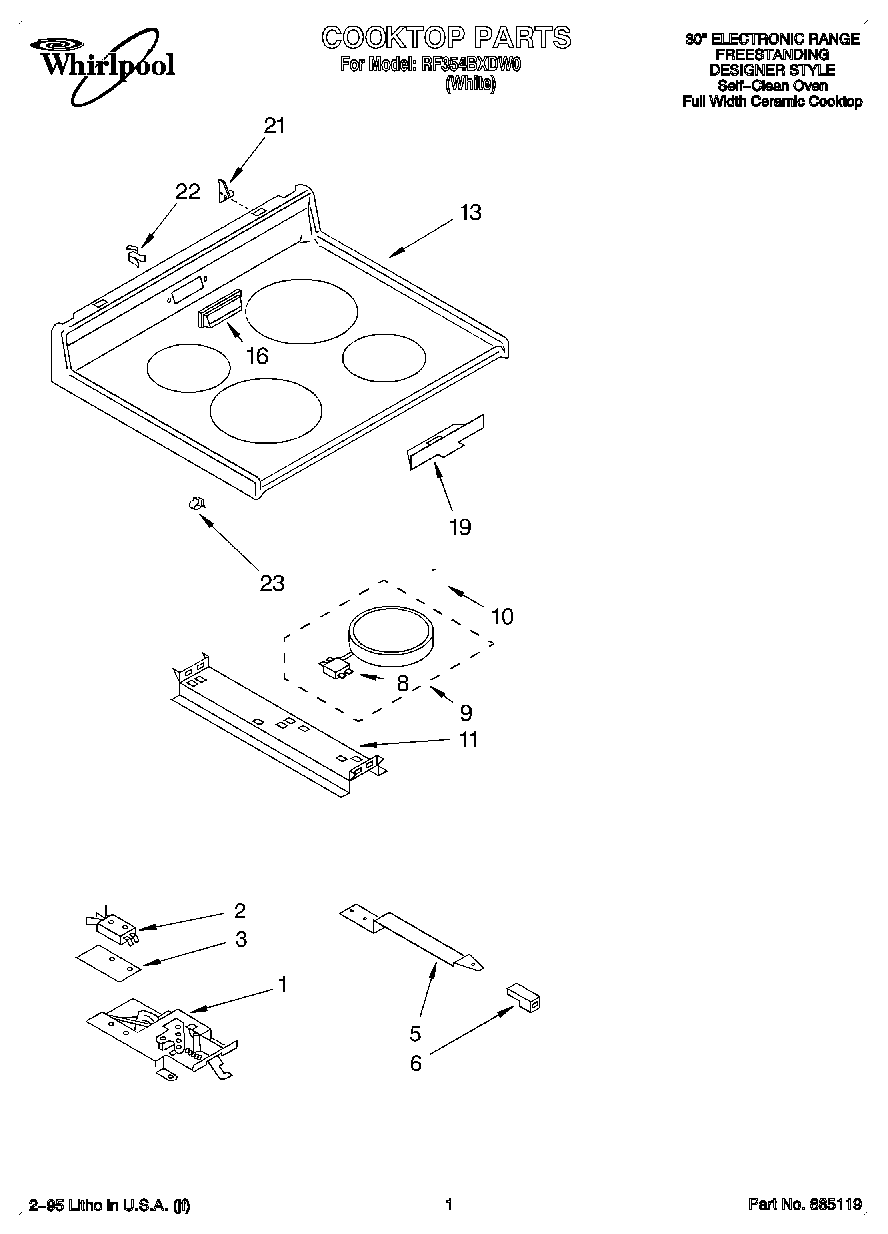

RF354BXDW0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	WPL LIT677973
	WPL LIT3169514
	WPL LIT3150400
	Instructions, Installation
1	Latch Mechanism
2	Safety Switch
2	WPL 312717
3	Insulator, Switch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Switch, Limit (Use W/3183200 Element)
8	Limiter, Temp. (2100W, LF-RR)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
11	Back Splash (Screw (4) 10AB x 1/2“)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (Designer White Mdl)
16	Cover, Vent (White)
19	Shield, Probe
21	Bracket, Cooktop (Right)
21	Bracket, Cooktop (Left)
21	SCREW
22	Clip, Vent Cover
23	Clip
