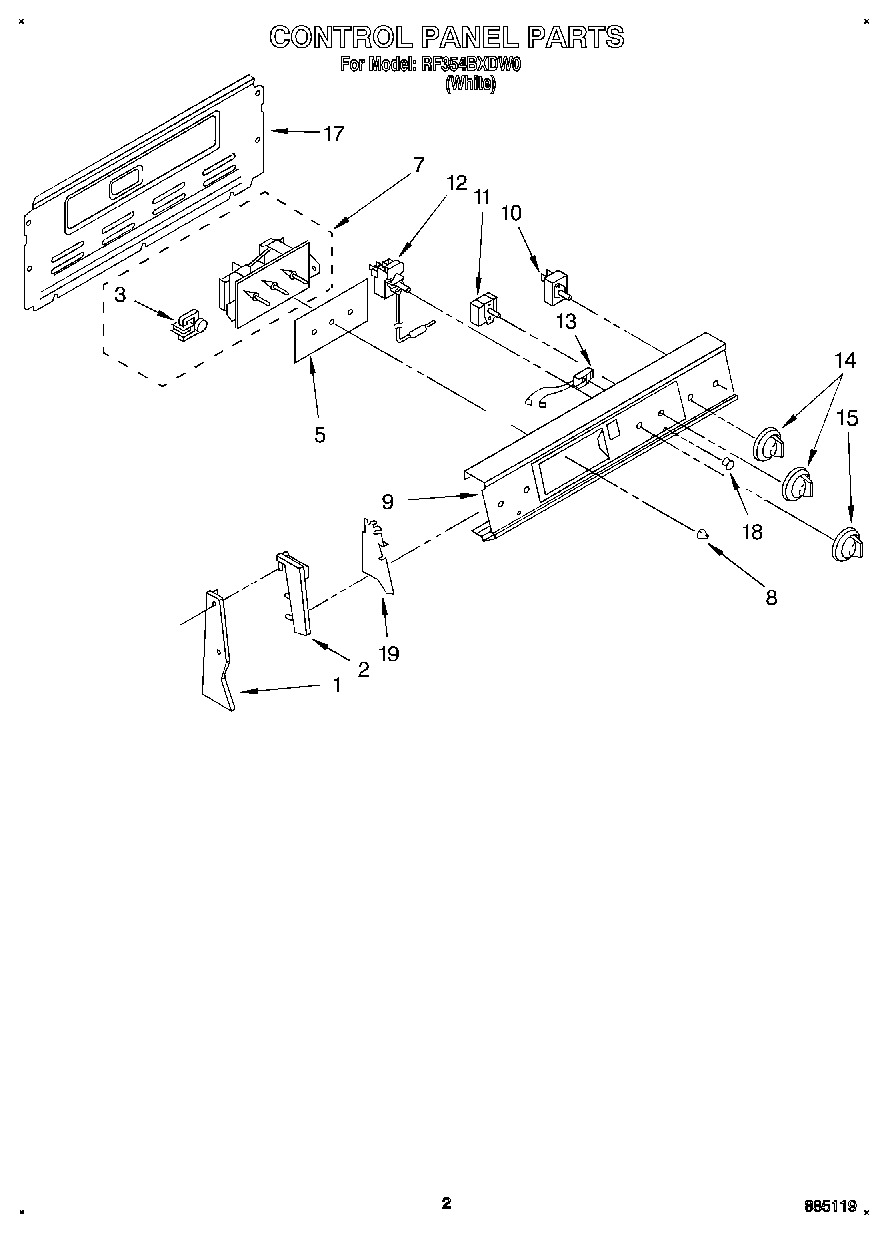

RF354BXDW0 02 – CONTROL PANEL

Products

PositionProduct
1End Trim L.H.
1End Trim R.H.
2End Cap, R.H. (Black)
2End Cap L.H. (Black)
2Screw,
3Motor, Timer
5Glass, Timer
7Timer, Control
8WP3169181 Whirlpool Knob
9Panel, Control
10WP3148952 Whirlpool Oven Infinite Switch
10SWITCH-INF
11Switch, Selector (5 Position)
11Screw, 8-32 x 3/16 (2)
12Thermostat, 0ven
12WP313808 Whirlpool Screw
13Indicator Light (Surface Unit On)
13Light, Indicator (250V)
13Indicator Light (1)
14WP3196231 Whirlpool Knob
15Knob, Thermostat (Black)
17SCREW
17Rear Cover Contr
18Lens, Amber
19WP965173 Whirlpool Dishwasher Screw
19Shield (2)
