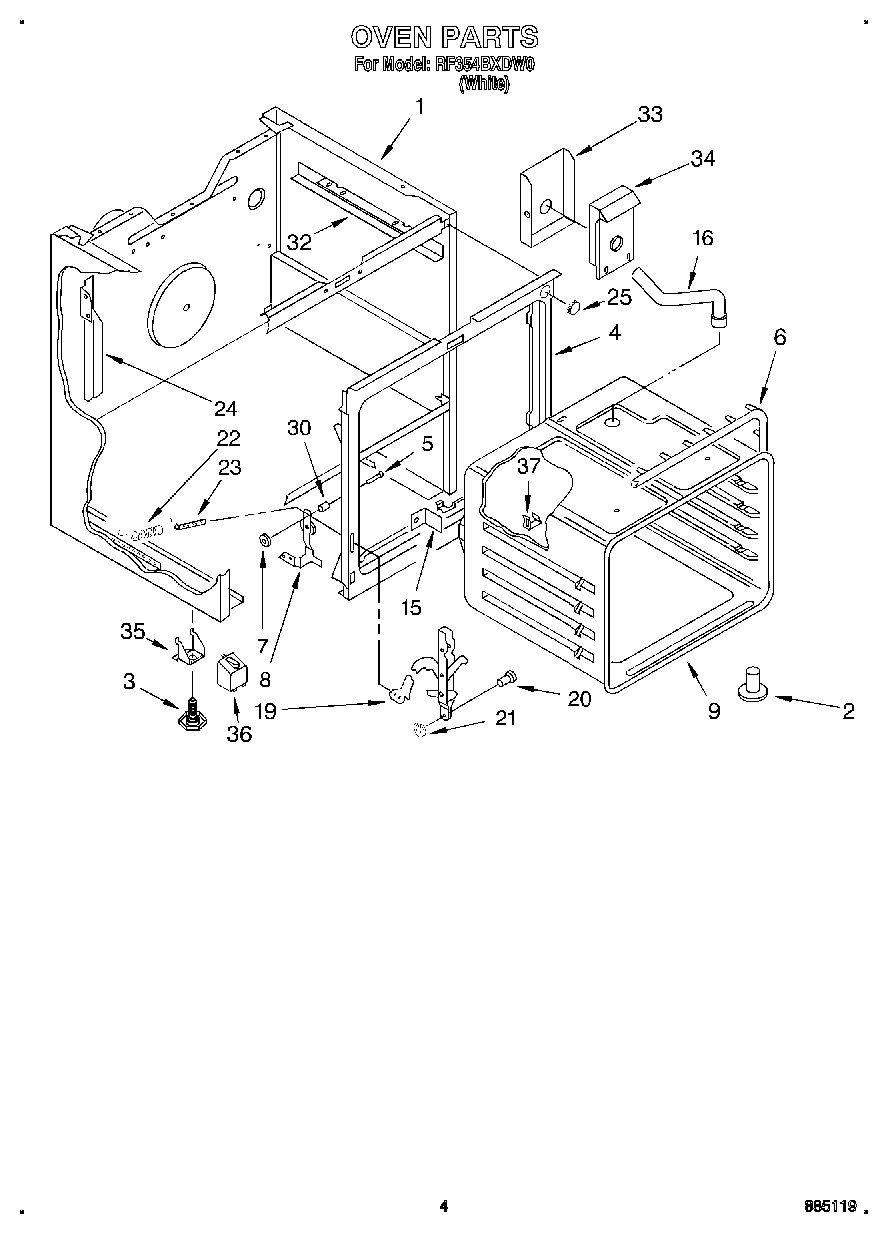

RF354BXDW0 04 – OVEN

Products

Position	Product
1	Main Chassis (White)
2	Tube, Vent
3	Leg Leveling (4)
4	Screw (Top)
4	Front Frame
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Oven (30“ Conv.)
9	Screw (3)
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Plug Button
30	Snubber, Door (2)
32	Support, Chassis
32	WP3390631 Whirlpool Screw
33	Screw (2)
33	Shield, Vent
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
35	SCREW
35	Support, Foot (2)
36	Cover, Foot (2)
37	98005642 Whirlpool Clip
37	WPL 3169093
37	WPL 3169094
