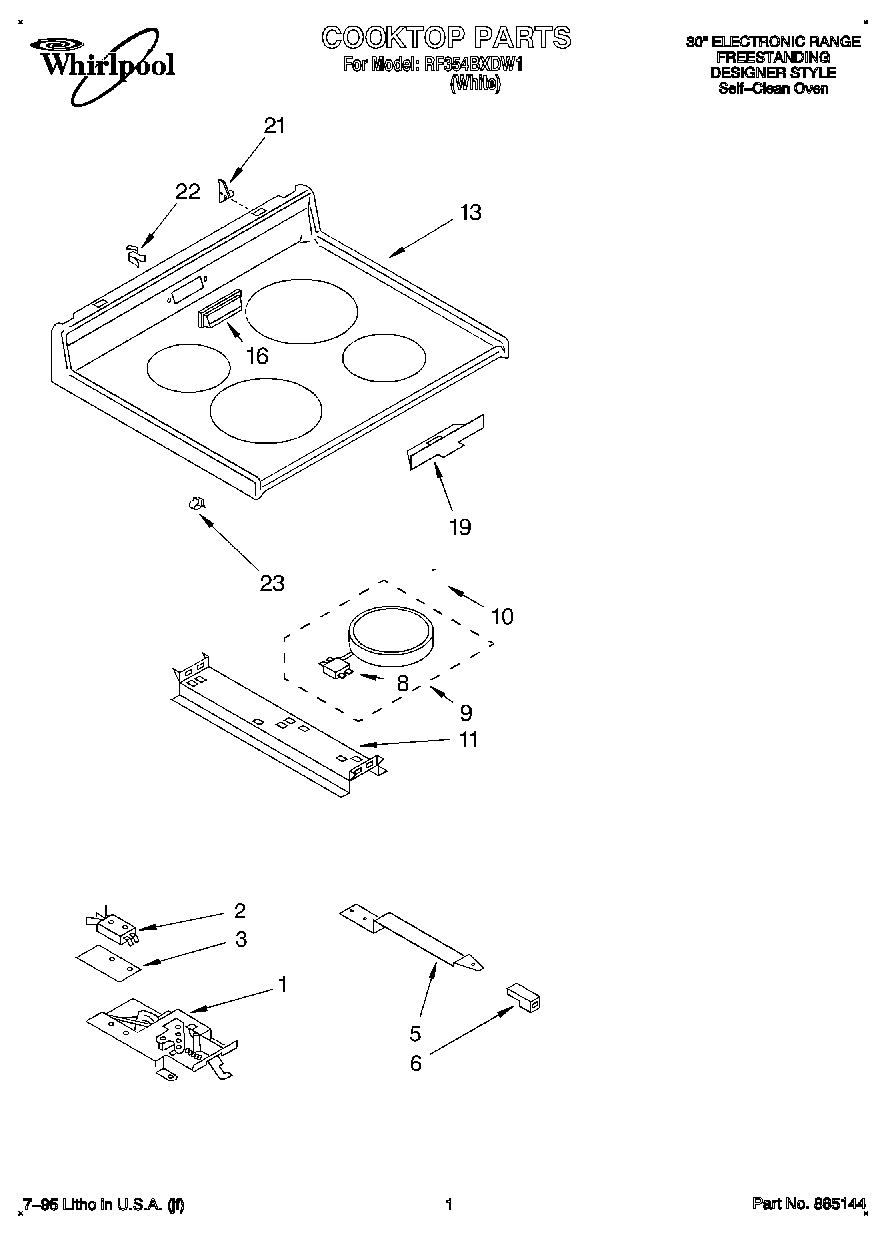

RF354BXDW1 01 – COOKTOP, LITERATUREadmin2025-04-26T12:47:35+00:00RF354BXDW1 01 – COOKTOP, LITERATURE
Products
| Position | Product |
|---|
| Use and Care Guide |
| WPL LIT3169514 |
| WPL LIT677973 |
| Instructions, Installation |
| WPL LIT3150400 |
| 1 | Latch Mechanism |
| 2 | Screw (2) |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 5 | Screw |
| 5 | Handle, Latch |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 8 | Limiter, Temp. (2100W, LF-RR) |
| 8 | Limiter, Temp. (1700W, RF-LR) |
| 9 | Element, Surface (Includes No.1) (2100W, LF-RR) |
| 9 | Element, Surface (Includes No.1) (1700W, RF-LR) |
| 10 | Spring, Locator |
| 10 | WP486754 Whirlpool Compactor Screw |
| 11 | Bracket, (2) Element Support |
| 11 | Back Splash (Screw (4) 10AB x 1/2``) |
| 13 | WP308685 Whirlpool Microwave Screw |
| 13 | Cooktop (Designer White Mdl) |
| 16 | Cover, Vent (White) |
| 19 | Shield, Probe |
| 21 | Bracket, Cooktop (Right) |
| 21 | Bracket, Cooktop (Left) |
| 21 | SCREW |
| 22 | Clip, Vent Cover |
| 23 | Clip |
