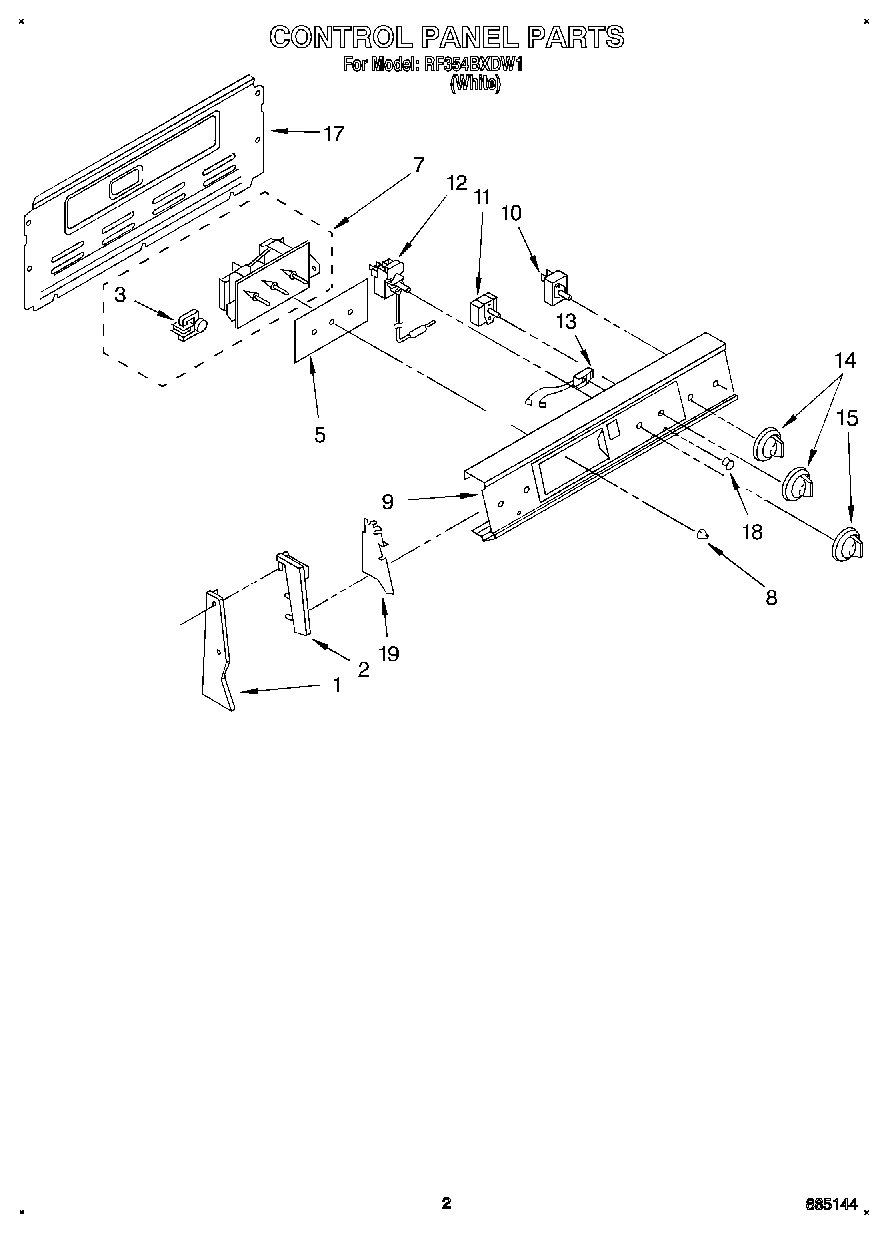

RF354BXDW1 02 – CONTROL PANELadmin2025-04-26T12:46:46+00:00RF354BXDW1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim L.H. |
| 1 | End Trim R.H. |
| 2 | End Cap, R.H. (Black) |
| 2 | End Cap L.H. (Black) |
| 3 | Motor, Timer |
| 5 | Glass, Timer |
| 7 | Screw |
| 7 | Timer, Control |
| 8 | WP3169181 Whirlpool Knob |
| 9 | Panel, Control |
| 10 | SWITCH-INF |
| 10 | WP3148952 Whirlpool Oven Infinite Switch |
| 11 | Switch, Selector (5 Position) |
| 11 | Screw, 8-32 x 3/16 (2) |
| 12 | Thermostat, 0ven |
| 12 | WP313808 Whirlpool Screw |
| 13 | Indicator Light (Surface Unit On) |
| 13 | Light, Indicator (250V) |
| 13 | Indicator Light (1) |
| 14 | WP3196231 Whirlpool Knob |
| 15 | Knob, Thermostat (Black) |
| 17 | SCREW |
| 17 | Rear Cover Contr |
| 18 | Lens, Amber |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Shield (2) |
