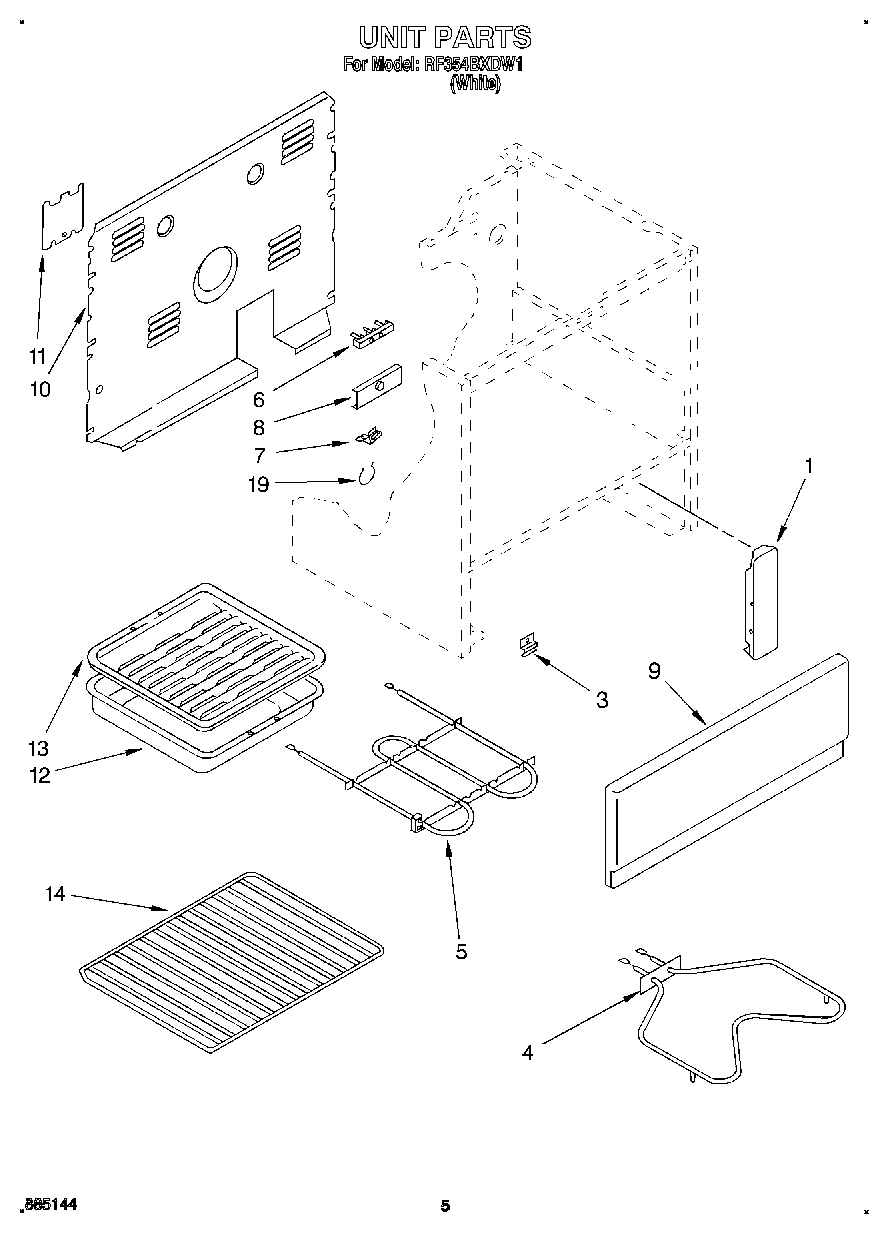

RF354BXDW1 05 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
3	Bracket, Mounting
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
9	Panel Drawer (White)
9	WP488627 Whirlpool Refrigerator Screw
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
19	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
19	16515 Whirlpool Clip
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	WA906B Whirlpool Cooktop Glass Scraper
