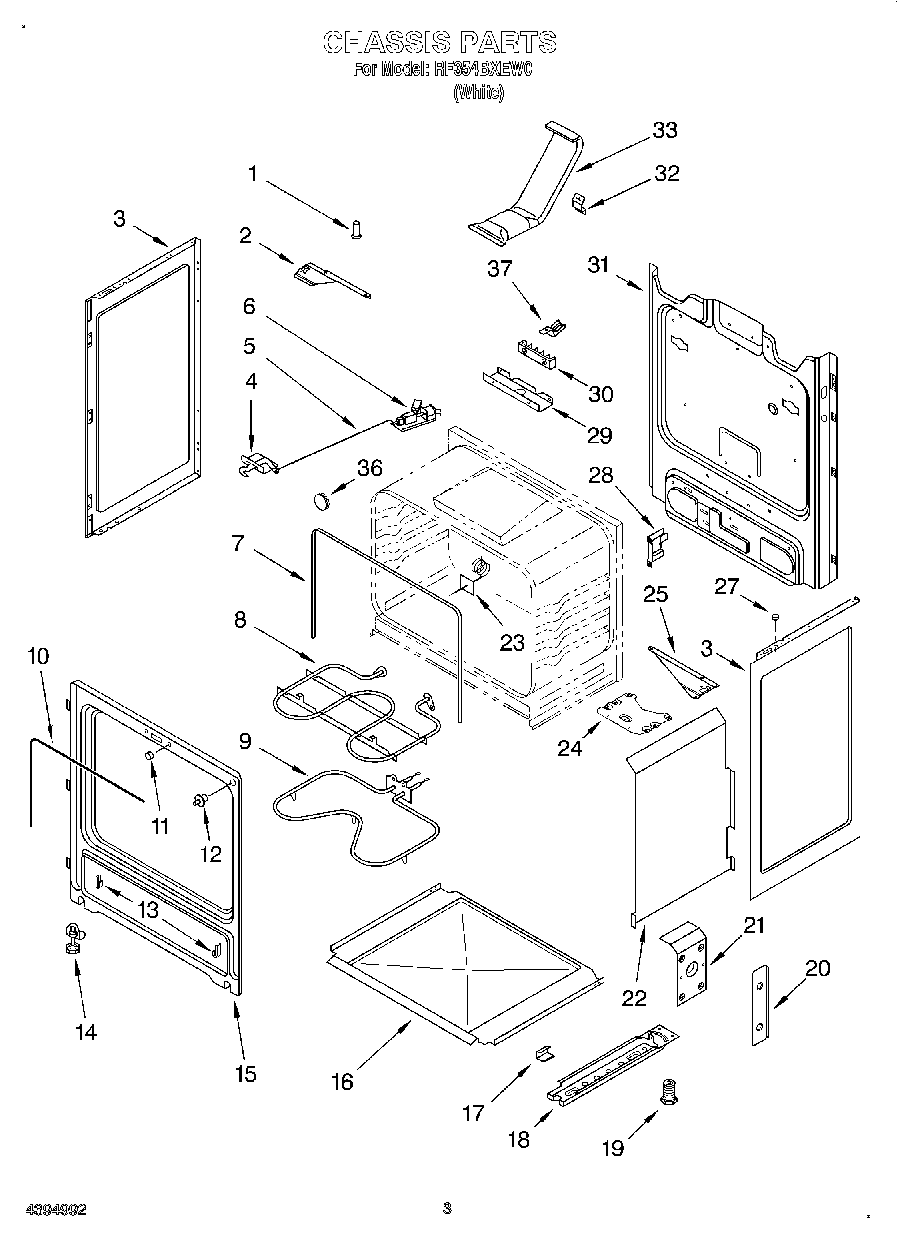

RF354BXEW0 03 – CHASSIS

Products

Position	Product
1	Tube, Oven Vent
2	Support, Corner LR
3	Panel, Side (2) (White)
4	WP9761013 Whirlpool Door Latch
4	WP3400832 Whirlpool Screw
5	Rod, Latch
6	Solenoid Assy.
7	Seal, Oven Flange
8	W10856603 Whirlpool Broil Element
9	WPW10308477 Whirlpool Bake Element
9	WP3196174 Whirlpool Screw
10	W11542153 Whirlpool Door Gasket
11	W10877054 Whirlpool Spacer Assembly
12	WP3196262 Whirlpool Light Switch
13	WP3195546 Whirlpool Drawer Glide
14	WP3196037 Whirlpool Leveling Foot
14	Screw
15	Frame, Front
16	WP8054068 Whirlpool Retainer
17	Clip, Panel (6)
18	WPW10306546 Whirlpool Base Rail
19	WPW10058460 Whirlpool Appliance Levelling Leg
20	Shield, Outer (2)
21	WP7101P246-60 Whirlpool Screw
21	Shield, Inner (2)
22	Retainer, Side (2)
23	Sensor, Heat
24	Support, Front (2)
25	Support, Corner RR
25	3196172 Whirlpool Oven Screw
27	238614 Whirlpool Bumper Hinge
28	W10404688 Whirlpool Bracket Support
29	W11728255 Whirlpool Service Bracket
30	WP8203546 Whirlpool Terminal Block
30	WP3196163 Whirlpool Screw
31	Back, Main
31	SCREW
32	Bracket, Flue
32	WP3196175 Whirlpool Screw
33	WP489491 Whirlpool Refrigerator Screw
33	WPW10134285 Whirlpool Vent Tube
36	Button, Plug
37	Insulation, Vent
37	WPW10208653 Whirlpool Insulation
37	Ground Strap
37	WP112432 Whirlpool Nut Assembly
37	WP8272612 Whirlpool Insulation
