RF354BXGW0 05 – DOOR, LIT/OPTIONAL

RF354BXGW0 05 – DOOR, LIT/OPTIONAL

Written by

in

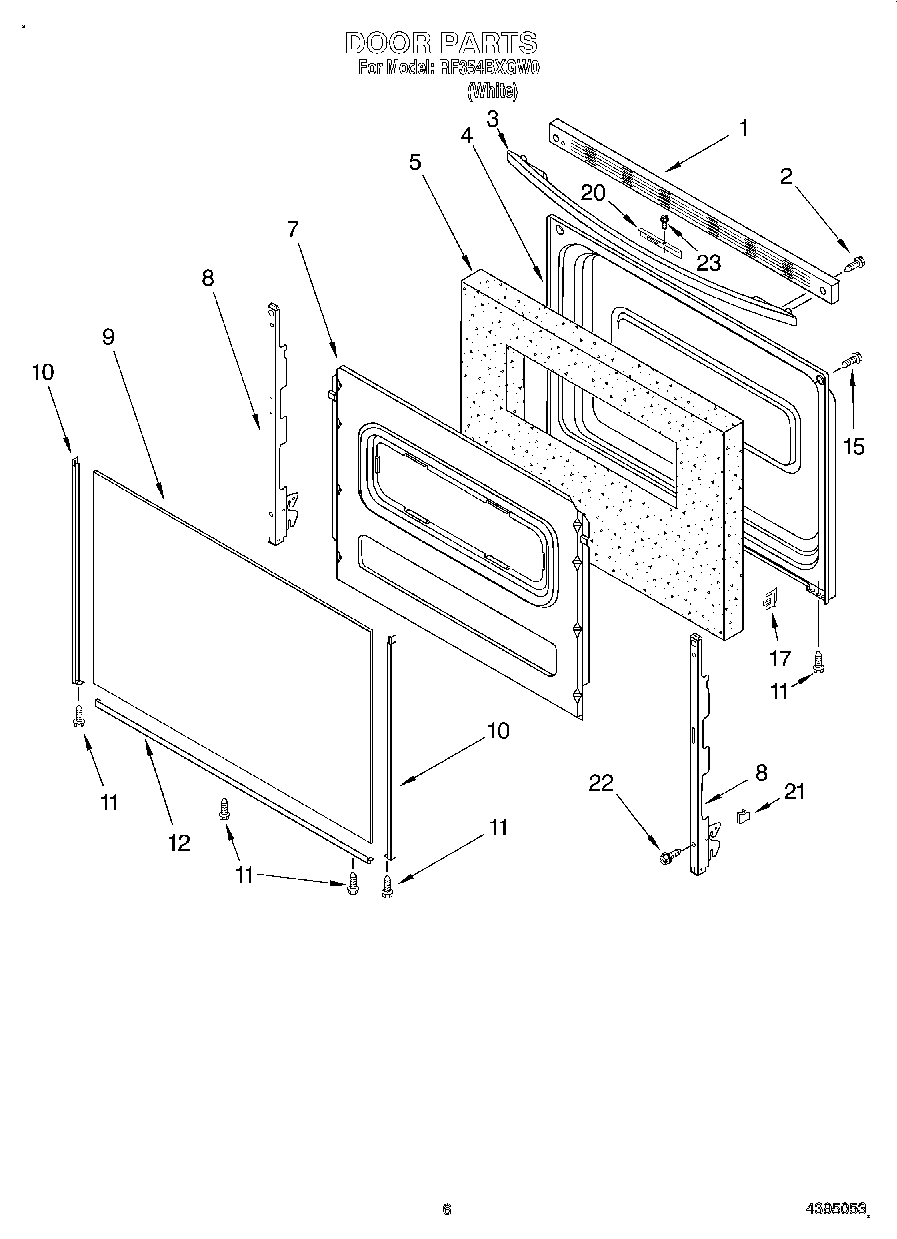

RF354BXGW0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Harness, Wire (Door Switch)
	Literature (Installation, Instructions (Template))
	Literature (Instruction, Installation)
	WPL 8053721
	WPL 8053638
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	3400964 Whirlpool Oven Clip
	Literature Parts (Tech Sheet)
	814381 Whirlpool Pin
	WP3196154 Whirlpool Screw Assembly
	Clip, Ground Wire
	Safer Cooking Tips
	WPL LIT8053396
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
7	W11699790 Whirlpool Retainer
8	Hinge, Door (2)
9	Glass, Door (Black)
11	W10491985 Whirlpool Screw
12	8184858 Whirlpool Door Trim
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
23	Wire (14 Ga. 200 c Brown)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	18 Ga. 80~c Rating (Red)
23	1
23	WP3400832 Whirlpool Screw
23	8212471 Whirlpool Oven Paint
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	Grease
23	72113 Whirlpool Touch-Up Paint
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	WPL 72112
23	Platinum (Uncut)
23	Enamal, Toast (1 Qt. Uncut)
23	Paint, Spray (13 Oz.) (Platinum)
23	Toast
23	Golden Harvest (Uncut)
23	Golden Harvest
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	350942 Whirlpool Spray Paint
23	511873 Whirlpool Refrigerator Paint
23	WPL 799832
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	285006 Whirlpool Spray
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	350930 Whirlpool White Spray Paint
