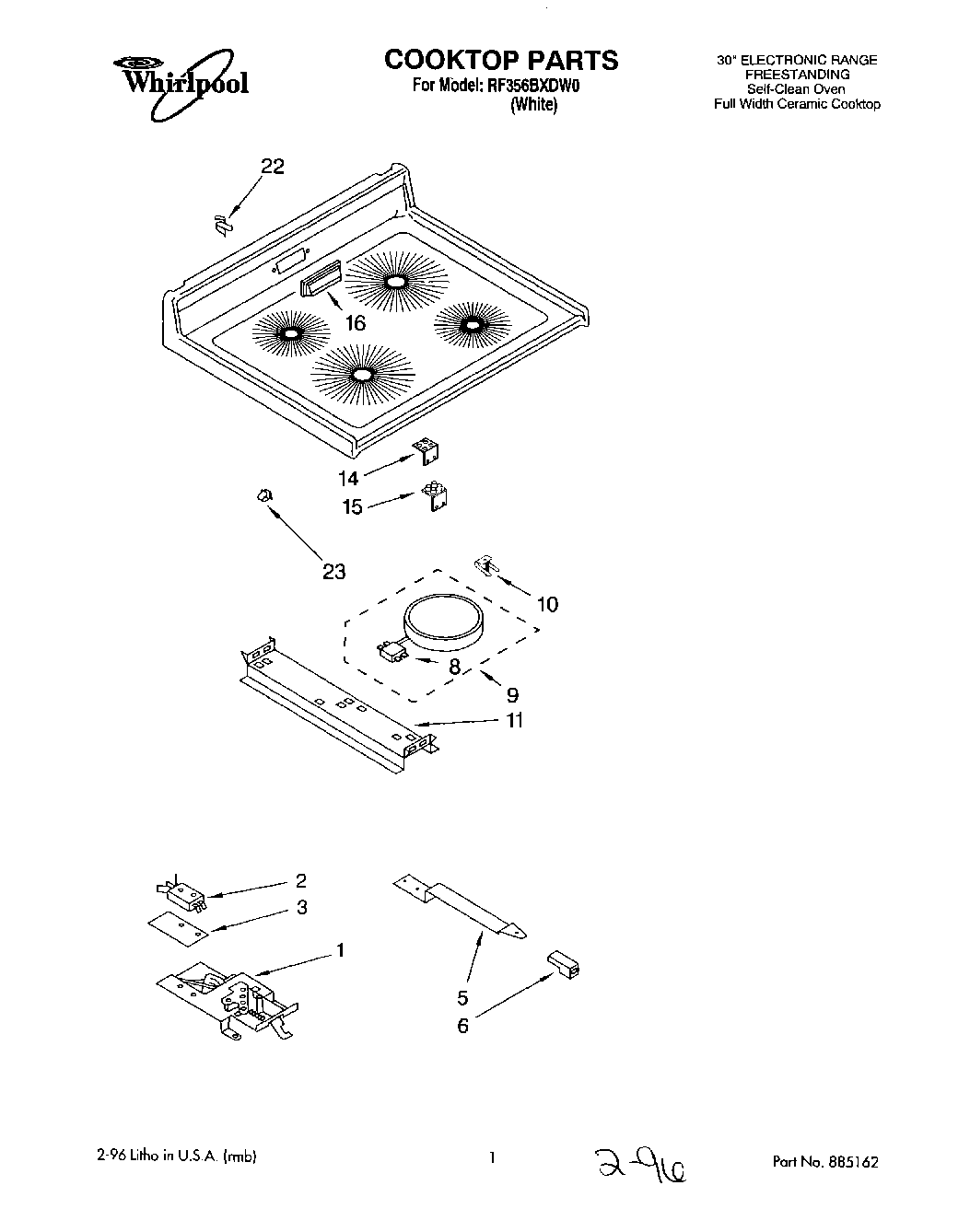

RF356BXDW0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	WPL LIT3169513
	WPL LIT3189985
	WPL LIT677973
	WPL LIT3150400
1	SCREW
1	Latch Mechanism
2	Safety Switch
2	Screw (2)
3	Insulator, Switch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Limiter, Temp. (1700W, RF-LR)
8	Limiter, Temp. (1400W – LR)
8	Limiter, Temp. (2400W – LF)
8	Limiter, Temp. (2100W, LF-RR)
9	Element, Surface (Includes No.1) (1700W, RF-LR)
9	Element, Surface (Includes No.1) (2100W, LF-RR)
9	Element, Surface (Includes No. 18) (1400W – LR)
9	Element, Surface (Includes No. 18) (2400W – LF)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
11	Back Splash (Screw (4) 10AB x 1/2“)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (Designer White)
14	Bracket, Light
15	WPL 3169395
16	Cover, Vent (White)
22	Clip, Vent Cover
23	Clip
