RF356BXDW0 02 – CONTROL PANEL

RF356BXDW0 02 – CONTROL PANEL

Written by

in

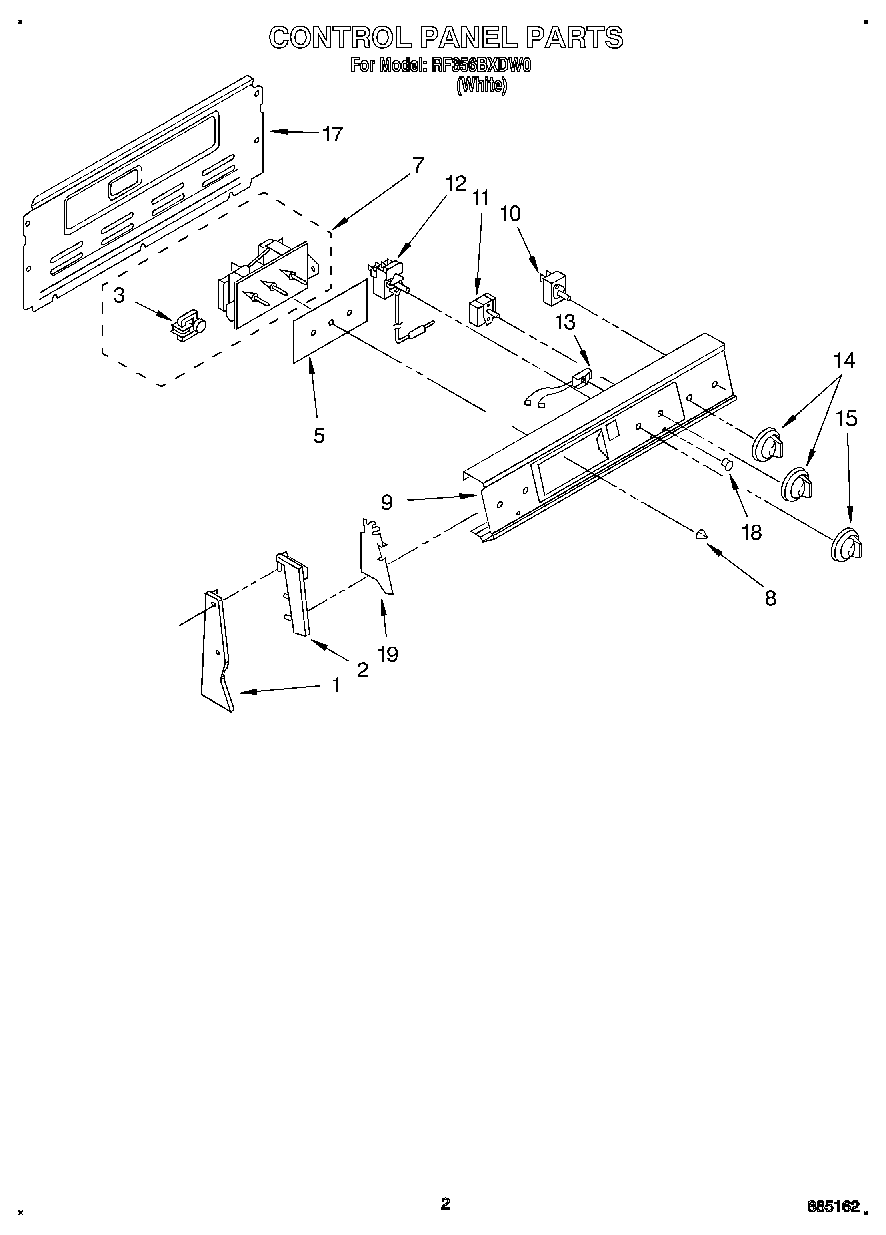

RF356BXDW0 02 – CONTROL PANEL

Products

PositionProduct
1End Trim R.H. (Black)
1End Trim (LH, Black)
2End Cap, R.H. (Black)
2End Cap L.H. (Black)
3Motor, Timer
5Glass, Timer
7Timer, Control
7Screw
8WP3169181 Whirlpool Knob
9Panel, Control
10WP3148952 Whirlpool Oven Infinite Switch
10WP3148955 Whirlpool Infinite Switch
11Switch, Selector (5 Position)
11Screw, 8-32 x 3/16 (2)
12Thermostat, 0ven
12WP313808 Whirlpool Screw
13Light, Indicator (250V)
13Indicator Light (Surface Unit On)
14WP3196231 Whirlpool Knob
15Knob, Thermostat (Black)
17Rear Cover Contr
17SCREW
18Lens, Amber
19WP965173 Whirlpool Dishwasher Screw
19Shield (2)
