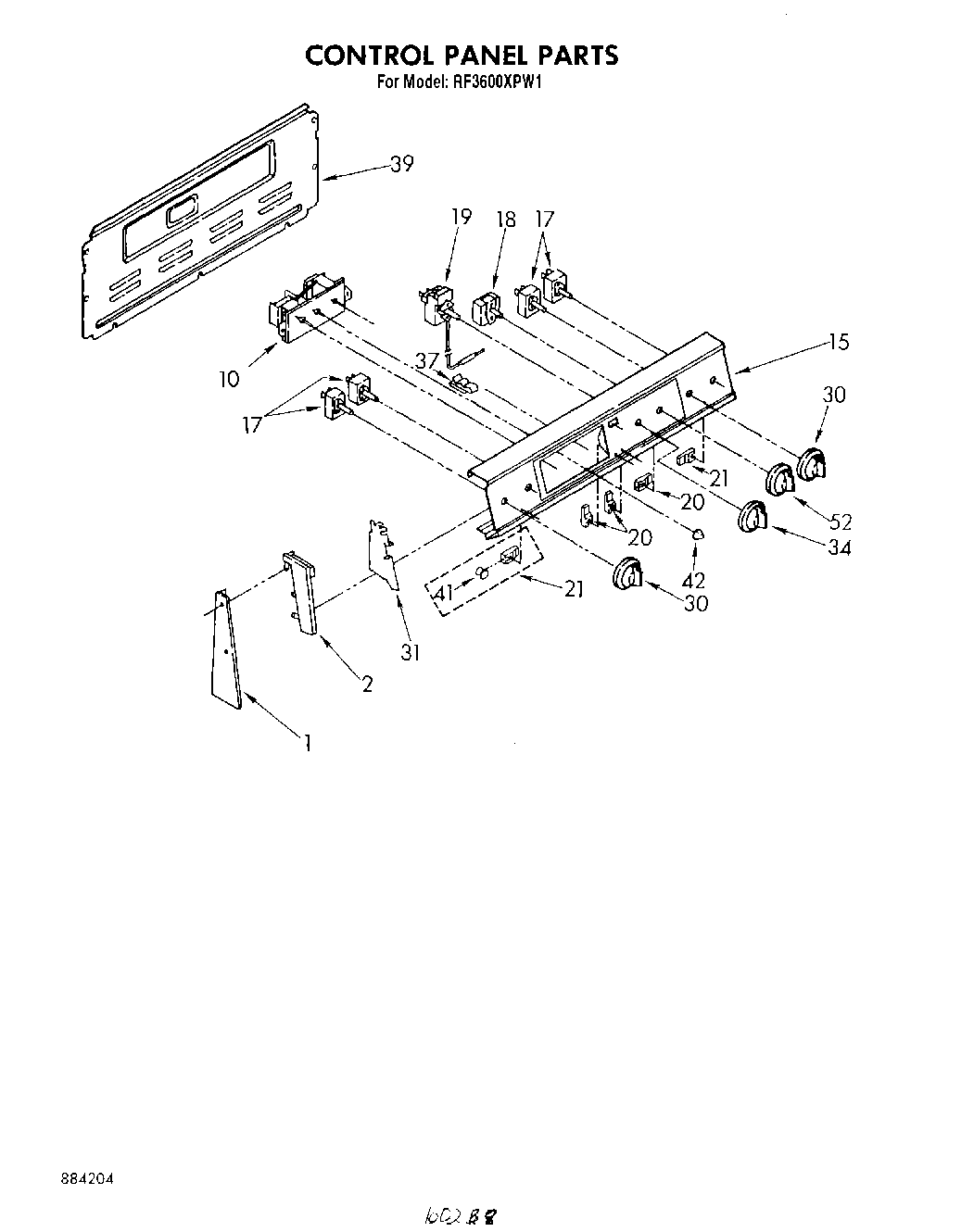

RF3600XPW1 03 – CONTROL PANEL

RF3600XPW1 03 – CONTROL PANEL

Written by

in

RF3600XPW1 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
2End Cap L.H.
2End Cap R.H.
2Screw,
10Timer, Digital
15Washer
15Panel, Control (White)
15Panel, Control (Platinum)
15Panel, Control (Almond)
15Panel, Control (Harvest Gold)
15Panel, Control (Toast)
17WP3149400 Whirlpool Oven Infinite Switch
17WP3149404 Whirlpool Oven Surface Element Switch
18Switch, Selector (5 Position)
18WP486579 Whirlpool Air Conditioner Screw
19WP313808 Whirlpool Screw
19Thermostat, Oven Pyro
20Light, Indicator (250V)
21Light, Indicator (Surface Unit (2))
30Knob, Switch (4)
31WP965173 Whirlpool Dishwasher Screw
31Shield (2)
34Screw
34Knob, Control (4)
37Clip, Tube
39Harness-Conduit Asm.
39SCREW
41Lens, Amber
42Spring (3)
42WP3169181 Whirlpool Knob
52Knob, Control
52WP688805 Whirlpool Spring Clip
