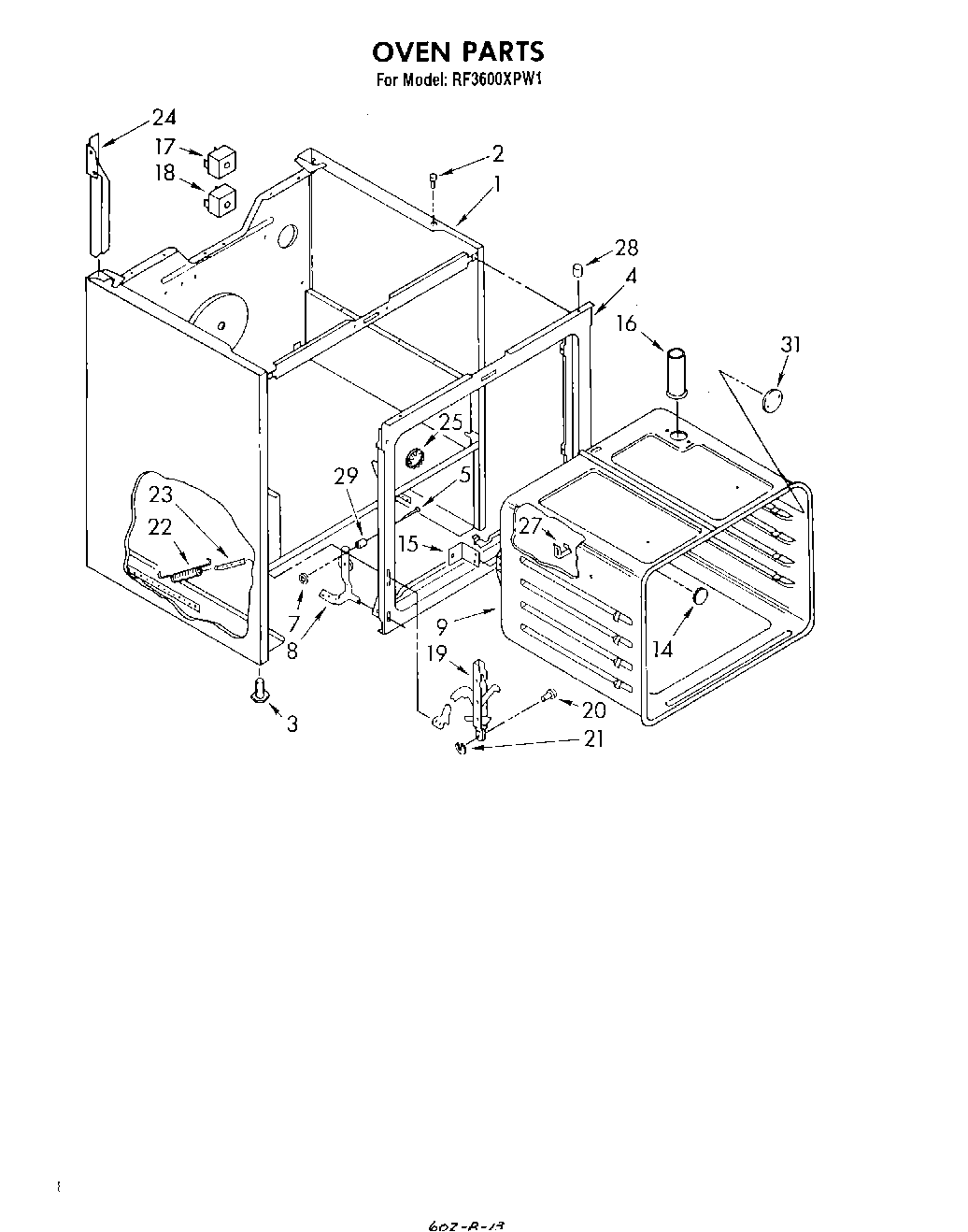

| 1 | Main Chassis (Harvest Gold) |
| 1 | Main Chassis (Toast) |
| 1 | Main Chassis (White) |
| 1 | Main Chassis (Platinum) |
| 1 | Main Chassis (Almond) |
| 2 | 238614 Whirlpool Bumper Hinge |
| 3 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 4 | Frame, Front |
| 5 | Pin, Hinge Ear (2) |
| 7 | Pushnut (2) |
| 8 | Hinge (R.H.) |
| 8 | Hinge (L.H.) |
| 9 | Oven (30`` Pyro) |
| 14 | Plug Button |
| 15 | Bracket, Oven (Mounting) |
| 16 | Screw, 10A x 1/2 (2) (Black) |
| 16 | Vent, Oven |
| 17 | Switch, Broil |
| 18 | Switch, Bake |
| 19 | Channel, Arm (2) |
| 20 | WP307986 Whirlpool Hinge Pin |
| 21 | Retainer Ring (2) |
| 22 | Spring, Oven Door (2) |
| 23 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 24 | Wire Cover |
| 24 | Wire Cover-Controls (Right) |
| 24 | SCREW |
| 25 | Plug, Button |
| 27 | 98005642 Whirlpool Clip |
| 28 | locator, cooktop |
| 28 | Screw, 8-32 x 5/16 (2) |
| 29 | Snubber, Door (2) |
| 31 | Screw (3) |
| 31 | Cover, Plate |
