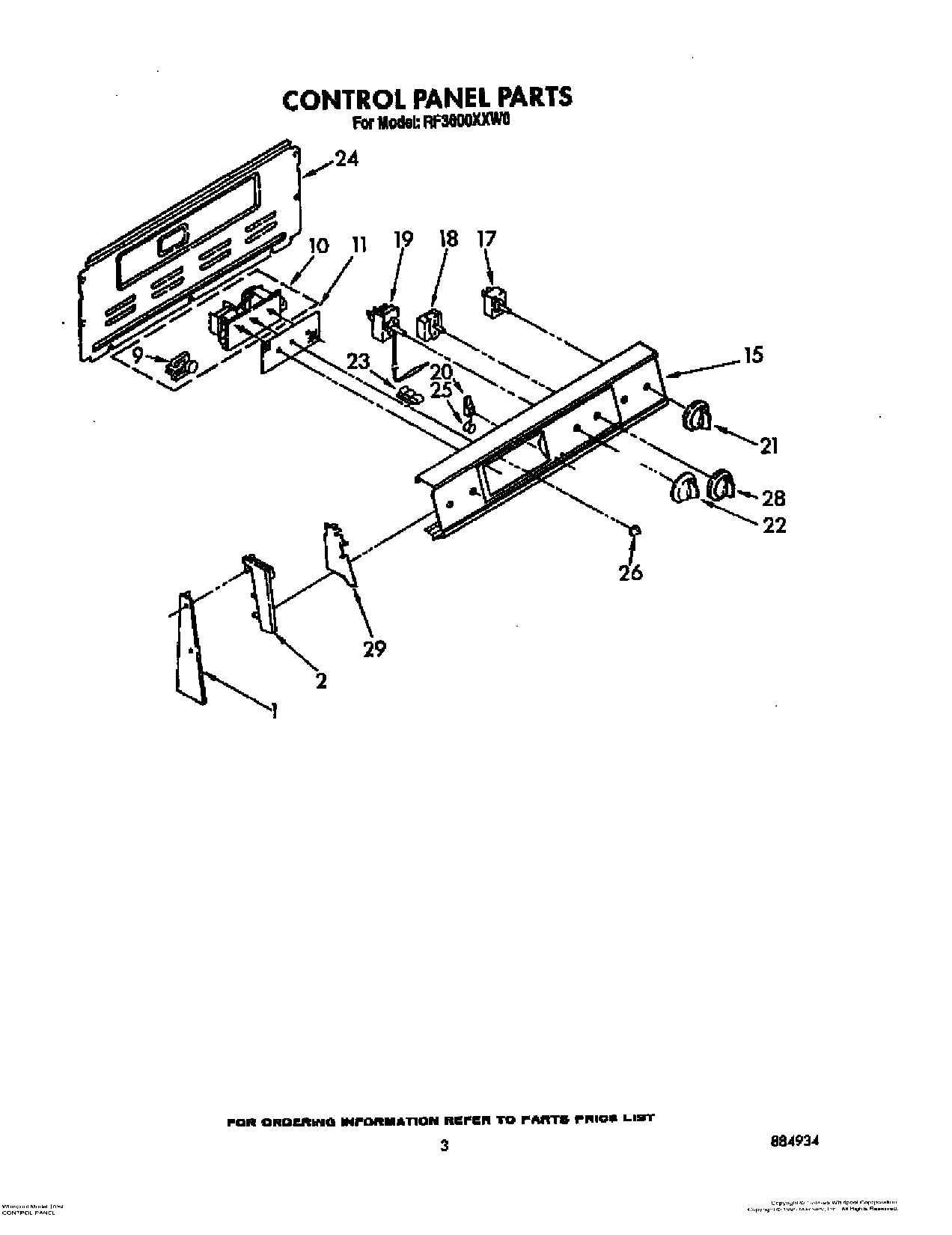

RF3600XXN0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap, R.H. (White/Almond/Gold)
2	(End Cap, L.H.) (White/Almond/Gold)
2	Screw,
9	Motor, Timer
10	Timer, Clock
11	Glass, Timer
15	Control Panel (Almond)
15	Control Panel (White)
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (Surface Unit On)
20	Light, Indicator (250V)
21	WP3149983 Whirlpool Knob
22	Knob, Oven Temp.
23	Clip, Tube
24	SCREW
24	Harness-Conduit Asm.
25	Lens, Amber
26	WP3169181 Whirlpool Knob
26	Spring (3)
28	Knob, Selector
29	WP965173 Whirlpool Dishwasher Screw
29	Shield (2)
